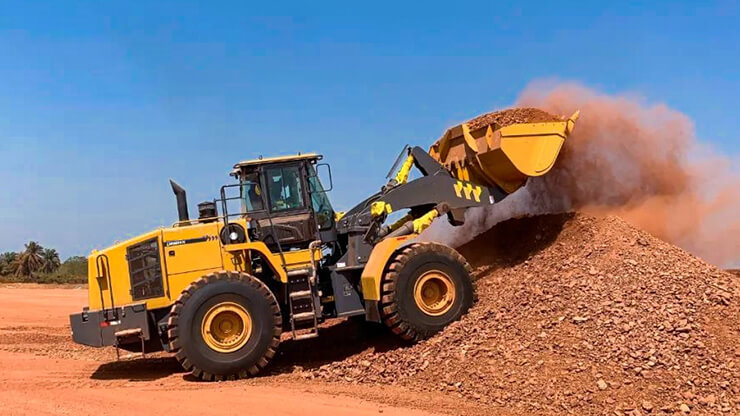

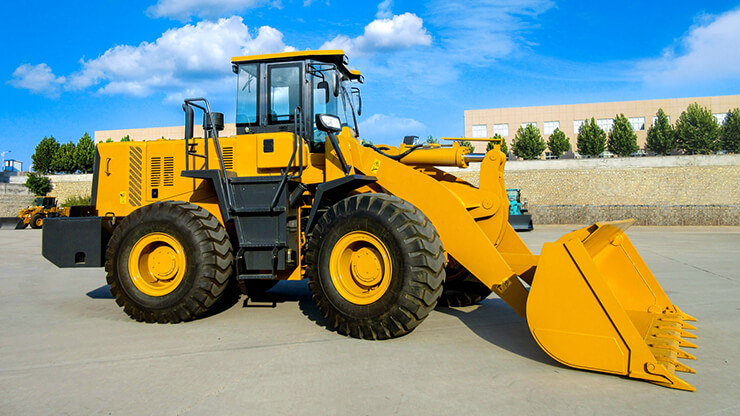

Wheel Loader
The main function of the wheel loader is to shovel and transport various materials. Compared with the track loader, it has the advantages of good maneuverability, no damage to the road surface, and easy operation, so the wheel loader has been widely used.
- Model: AZJ930 & AZJ950
- Rated Load: 3,000kg ~ 5,000kg
- Highlights: Flexible steering, short wheelbase, small turning radius, large traction force
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
ACE Group is ready to supply wheel loaders that suitable for different working conditions. Main Application: load and transport materials in asphalt mixing plant and crushing station, and earth moving in all kinds of construction projects.
Technical Parameters
| Product Model | AZJ930 | AZJ950 |
|---|---|---|
| Rated Load | 3,000kg | 5,000kg |
| Rated Capacity of Bucket | 1.5~2.5m3 | 2.5~4.5m3 |
| Weight of Complete Machine | 10,330kg | 16,900kg |
| Maximum Unloading Height | 2,770mm | 3,150mm |
| Unloading Distance | 1,090mm | 1,100mm |
| Sum Time of Three Items | 9.6s | 10.5s |
| Wheelbase | 2,607mm | 2,972mm |
| Wheel Track | 1,800mm | 2,250mm |
| Breakout Force | 130kN | 170kN |
| Minimum Turning Radius | 4,929mm | 5,950mm |
| Maximum Gradeability | 25° | 28° |
| Overall Dimension(L×W×H) | 7030×2510×3185mm | 7910×3016×3515mm |
| Rated Power of Engine | 92kW | 162kW |
