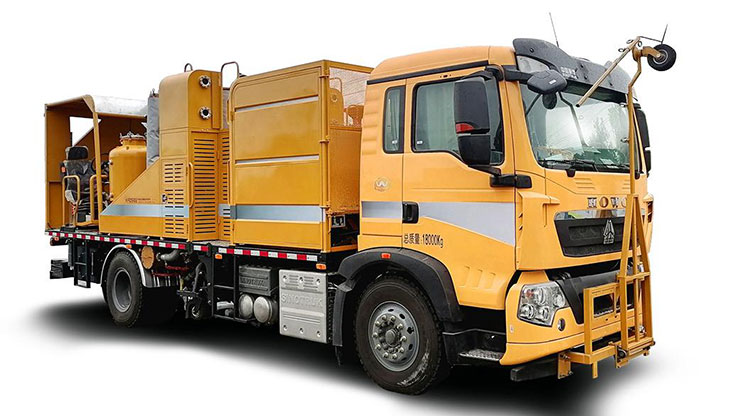

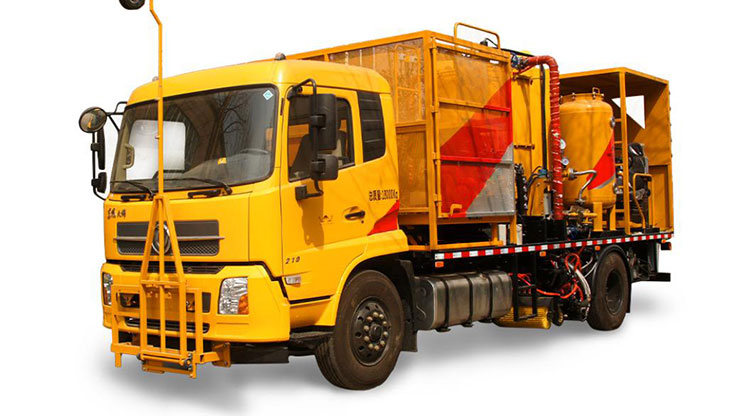

Thermoplastic Road Marking Vehicle
Thermoplastic road marking vehicle is a specialized equipment used for road marking construction. It applies thermoplastic coating materials on the road surface for marking, featuring high efficiency, durability, and environmental friendliness. It is widely used in roadways, highways, urban streets, parking lots, and airport runways, as well as other traffic facilities.
- Model: ACE5184THX ~ ACE5260THX
- Paint Tank Capacity: 1000L ~ 2×1450L
- Marking Thickness: 1.5mm ~ 2.5mm
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Technical Parameters
| Product model | ACE5184THX | ACE5182THX | ACE5260THX |
|---|---|---|---|
| External dimensions | 9270mm,9250×2550×3850mm | 9270×2550×3850mm | 10515×2550×3930mm |
| Wheelbase | 5000,4500mm | 5000mm | 4975+1400mm |
| Curb weight | 13990kg,13880kg | 14990kg | 22100kg |
| Total weight | 18000kg | 18000kg | 26000kg |
| Chassis | Dongfeng Tianjin | SINOTRUK HOWO | SINOTRUK Shandeka |
| Engine model | ISD210 50, ISD180 50 | MC07.35-60 China VI | MC07H.35-60 China VI |
| Engine power | 149kW,127kW | 248kW | 254kW |
| Marking device | Hot-melt flat line hopper, oscillating hopper, point extrusion hopper | Hot-melt flat line hopper, oscillating hopper, point extrusion hopper | Hot-melt flat line hopper, oscillating hopper, point extrusion hopper |
| Paint tank capacity | 1000L | 1200L | 2x1450L |
| Glass bead tank capacity | 2×250L | 2×250L | 2×300L |
| Marking method | Hot-melt flat line, oscillation, dot | Hot-melt flat line, oscillation, dot | Hot-melt flat line, oscillation, dot |
| Marking width | 50-200mm (optional hoppers of different specifications) | 50-200mm (optional hoppers of different specifications) | 50-200mm (optional hoppers of different specifications) |
| Construction speed | 0-8km/h | 0-8km/h | 0-8km/h |
| Track thickness | 1.5-2.5mm | 1.5-2.5mm | 1.5-2.5mm |
Main Feature
1. Approved by national vehicle model approval announcements, environmental certification announcements, and 3C certification announcements, it is exempt from vehicle purchase tax as per the national catalog.
2. Patented paint pump (Utility Model Patent 2021229326550).
3. Efficient heating and melting system, automatic temperature control system for paint heating, and a visual intelligent operation platform.
4. High-quality specialized vehicle chassis and imported hydraulic components.
5. Highly integrated design, dual tanks with four pumps, allowing for dual-side simultaneous marking. Exceptional performance, cost-effective, and precise control.
