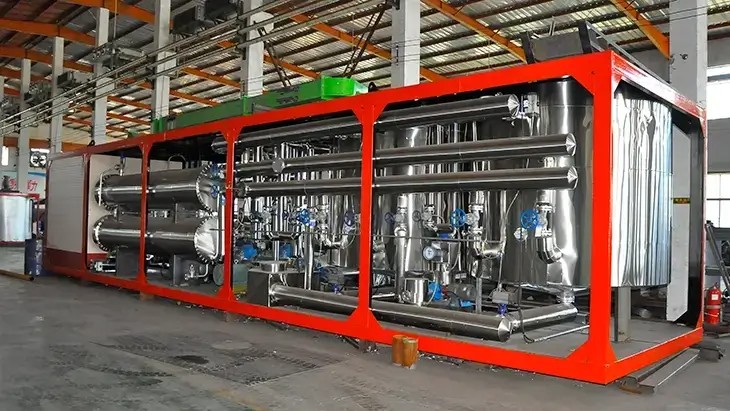

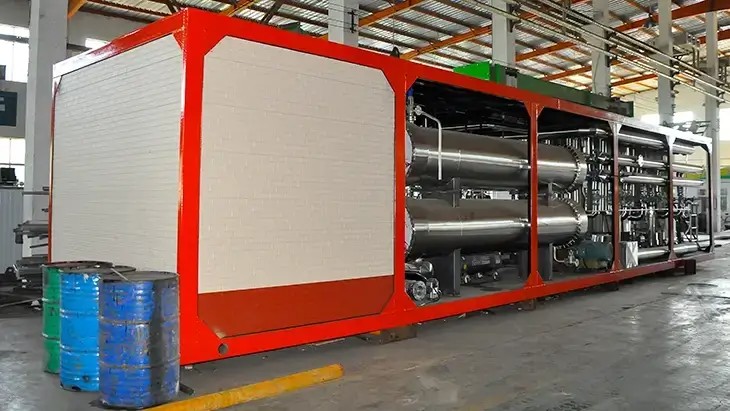

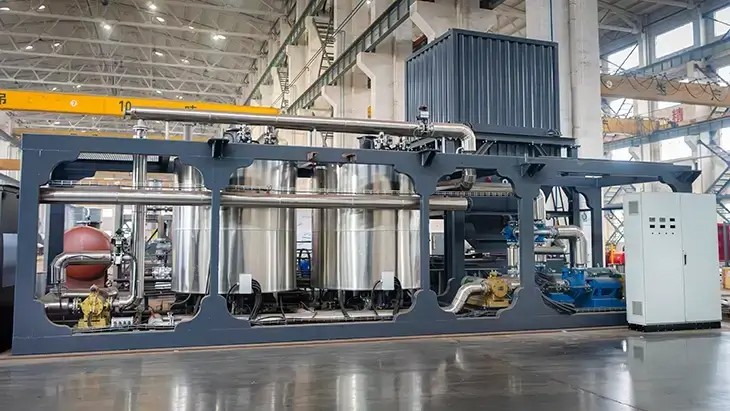

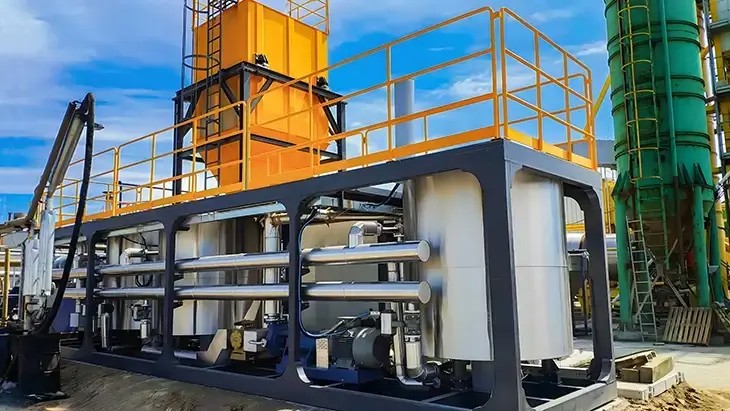

Modified Bitumen Plant
GS series multi-purpose modified bitumen plant is designed to produce SBS, EVA, PE and other polymer modified bitumen. Roads built with polymer modified asphalt have longer service life, bigger resistance to heavy traffic load, increased skid resistance and ultra violet resistance, enhanced safety and comfort levels. GS series modified bitumen equipment is an ideal device for surface pavement of trunk road, urban road, highway, bridge and airport.
- Model: GS5 ~ GS20ZS
- Product Capacity: 5 t/h ~ 20 t/h
- Highlights: Multifuctional, intelligent control; SBS, PE, EVA and other polymer modified bitumen can be made
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Brief Introduction
A Modified Bitumen Plant is a specialized industrial facility designed to produce modified bitumen. Modified bitumen is a type of asphalt binder that has been enhanced with additives to improve its performance characteristics. The plant is equipped with various components and processes to blend the base bitumen with modifiers such as polymers (e.g., styrene-butadiene-styrene, SBS), crumb rubber, or other materials.
How Does A Modified Bitumen Plant Work?
1st Step: The hot bitumen is pumped into agitated tank at the required temperature(usually around 180ºC).
2nd Step: Thermo-plastic rubber is added to the agitated tank, and stirred for equal distribution.
3rd Step: The mixture of both is passed through the mill to physically reduce the thermo-plastic rubber particles in size by mechanical shear, being accompanied by a significant input of heat energy.
4th Step: Once the desired mixture is obtained, the polymer is pumped into modified bitumen stock tanks.
Technical Parameters
ACE provides various models of polymer modified bitumen plants with different capacities and configurations. They all adopt world-renowned brand components and own proprietary technology, And the practice has proven that the machine has steady and reliable performance.
| Model | GS5 | GS10S | GS10ZS | GS10 | GS20S | GS20ZS |
|---|---|---|---|---|---|---|
| Capacity (t/h) | 5 | 10 | 10 | 10 | 20 | 20 |
| Production Mode | Batch | Continuous | Continuous | Batch | Continuous | Continuous |
| Mixing Tank Capacity (m³) | 3 | 3 | 3 | 5 | 5 | 5 |
| Colloidal Mill Feed Pump Capacity (m³/h) | 10 | 10 | 10 | 20 | 20 | 20 |
| Number of Colloidal Mills | 1 | 2 | 2 | 1 | 2 | 2 |
| Polymer Feeding Method | Manual Feeding | Automatic, Subtractive Metering | Automatic, Subtractive Metering | Manual Feeding | Automatic, Subtractive Metering | Automatic, Subtractive Metering |
| Operation Mode | Computer Operation, Semi-automatic | Computer Operation, Fully automatic | Computer Operation, Fully automatic | Computer Operation, Semi-automatic | Computer Operation, Fully automatic | Computer Operation, Fully automatic |
| Installed Power (kW) | 95 | 160 | 200 | 160 | 250 | 300 |
| Number of Containers | 40HQ*1 20GP*1 | 40HQ*2 20GP*1 | 40HQ*3 20GP*1 | 40HQ*1 20GP*1 | 40HQ*3 20GP*1 | 40HQ*4 |
