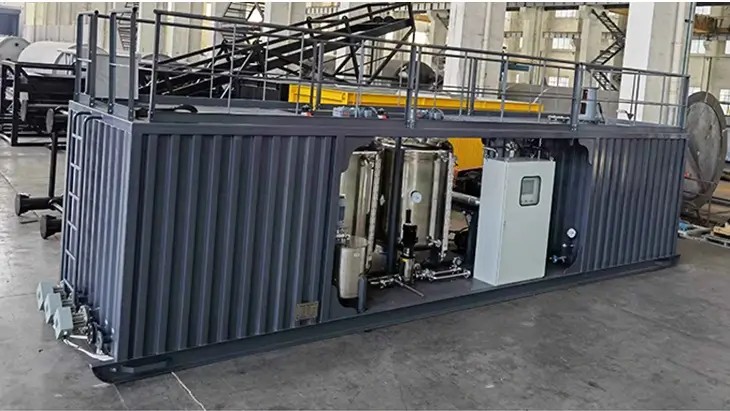

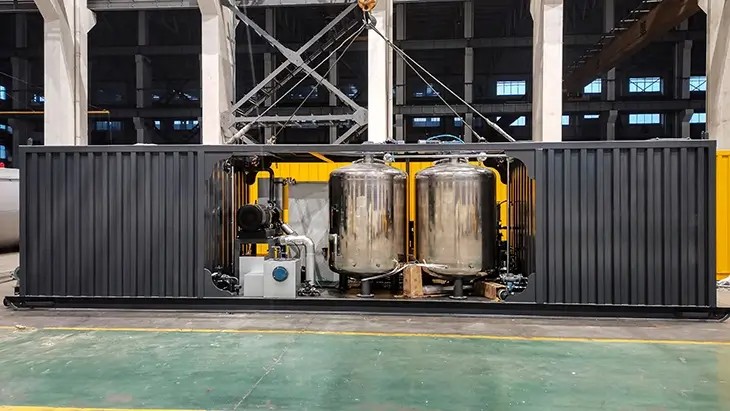

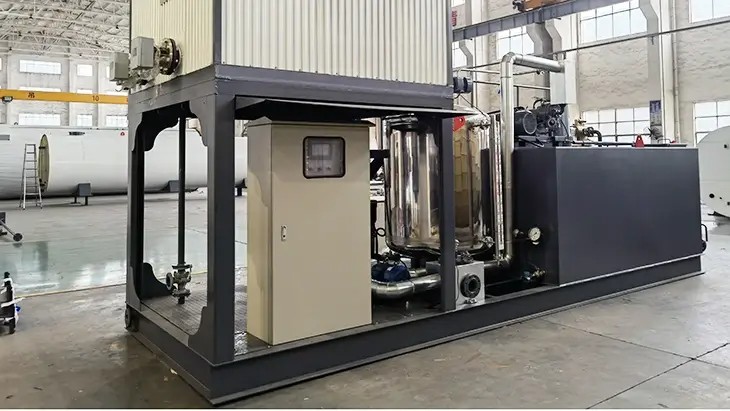

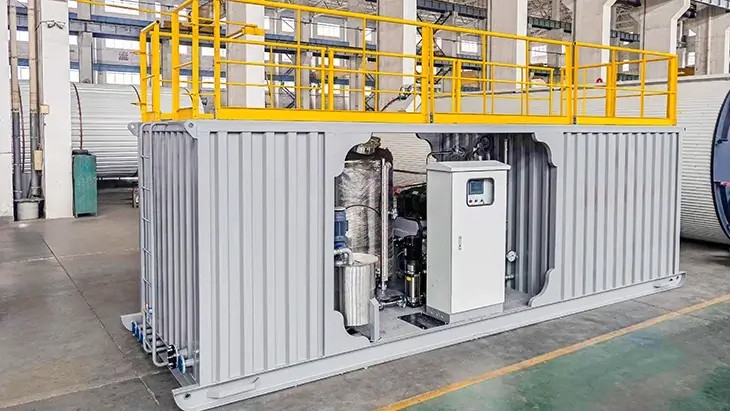

Bitumen Emulsion Plant
Bitumen emulsion plant is specialized equipment designed to produce emulsified bitumen by melting bitumen and dispersing resulting fine particles in water. They find extensive use in road-building projects. The final product of emulsified asphalt plants, bitumen emulsion, has a broader range of applications, such as rooftop waterproofing and pavement maintenance.
- Model: RH-6; GH-10; GJM-6~GJM-10
- Product Capacity: 6 t/h ~ 10 t/h
- Highlights: Produce several kinds of bitumen emulsion, container structure, ease of transportation
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Brief Introduction
You do need a proper bitumen emulsion equipment (also called asphalt emulsion plant) if you are seeking the emulsified binders for waterproofing, asphalt road surfacing as well as road building. All of these are great applications that require asphalt emulsion. You can use it to produce it at any given time if you have one.
Bitumen emulsion is widely used in road construction and maintenance projects, such as:
1. New road construction: prime coat, adhesive coat and seal coat;
2. road maintenance: fog seal, slurry seal, micro surfacing treatment, chip seal, ultra thin wearing layer, pothole rehabilitation and etc.;
3. Road pavement recycling: cold in-place recycling asphalt.
RH /GH / GJM series developed by LYROAD Machinery is an ideal equipment for bitumen emulsion production.
Technical Parameters
By virtue of rich engineering experience and the adoption of advanced technology both at home and abroad, the performance of AC-KCX series bitumen emulsion plant patcher has received good feedback among construction sectors and supervision departments.
| Model | RH-6 | GH-10 | GJM-6 | GJM-10 |
|---|---|---|---|---|
| Production Type of Bitumen Emulsion | Ordinary Bitumen Emulsion | Ordinary and Modified Bitumen Emulsion | Ordinary and Modified Bitumen Emulsion | Ordinary and Modified Bitumen Emulsion |
| Capacity (t/h) | 6 | 10 | 6 | 10 |
| Heating Method | Thermal Oil Heating/Electric Heating | |||
| Emulsion Fineness | ≤5μm, with a proportion of ≥85% | |||
| Bitumen Content in the Finished Product (%) | Maximum Bitumen Solid Content of 55% | |||
| Bitumen Tank Capacity (m³) | 5 | 5 | 7 | 7 |
| Water Tank Capacity (m³) | 5 | 5 | 7 | 7 |
| Length (mm) | 7550 | 9000 | 11600 | 11600 |
| Soap Solution Mixing Tank Capacity (m³) | 1.3 | 1.3 | 1.3 | 1.3 |
| Finished Product Tank Capacity (m³) | 4 | 4 | 7 | 7 |
| Power Supply(V) | 380 | 380 | 380 | 380 |
| Installed Power (kW) | 30 | 50 | 50 | 70 |
| Total Weight of the Whole Machine (t) | 7 | 7.5 | 9 | 9.5 |
| Number of Containers | 40HQ*1 | 40HQ*1 | 40HQ*1 | 40HQ*1 |
| Operation Mode | Touch Screen, Semi-automatic | Touch Screen, Semi-automatic | Touch Screen, Fully Automatic | Touch Screen, Fully Automatic |
