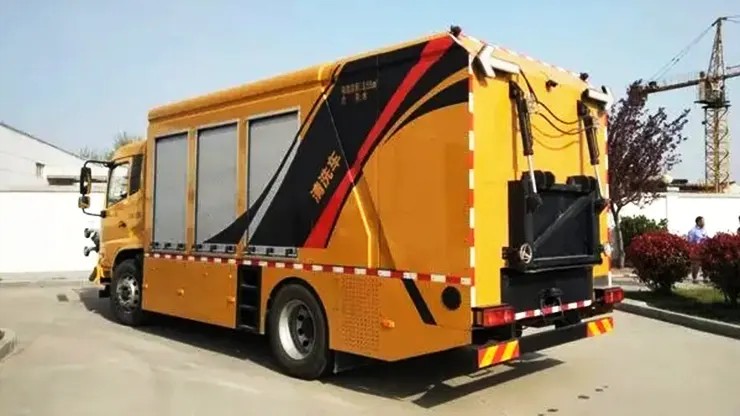

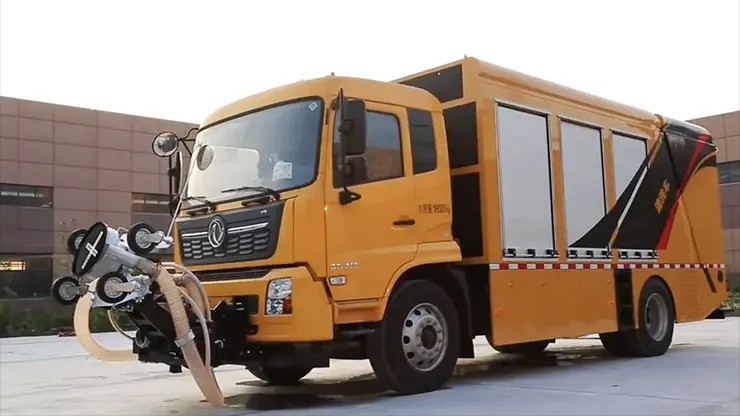

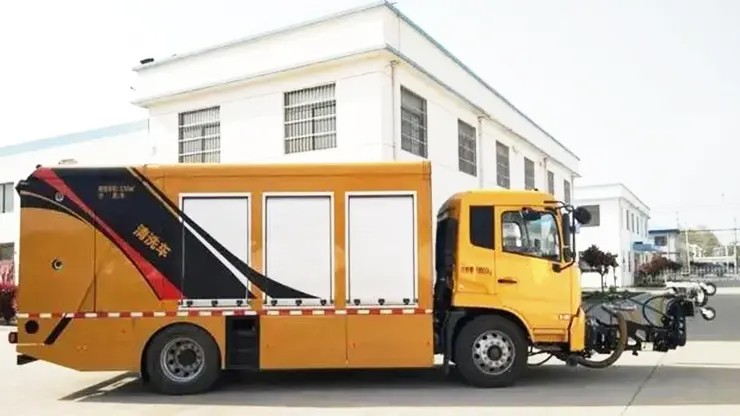

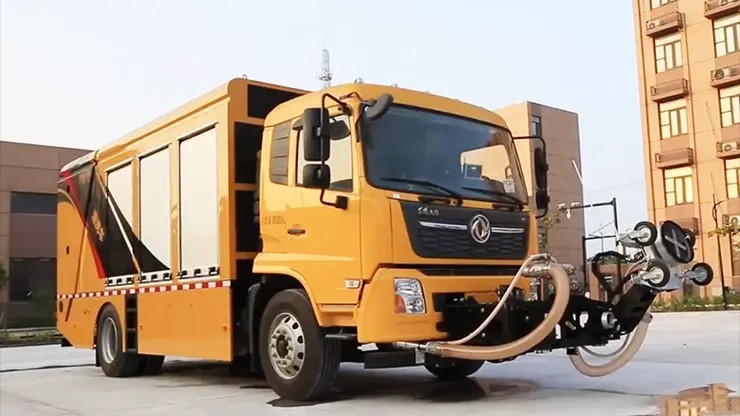

Road Marking Removal Vehicle
Road marking removal vehicle is a specialized equipment designed for the removal or cleaning of road markings. It features multifunctionality, high efficiency, precision, and environmental friendliness. Easy to operate and highly adaptable, it is widely used for road marking removal/cleaning and surface purification on highways, urban roads, parking lots, airport runways, and other similar scenarios.
- Model: ACE5180
- Max. Line Removal Width: 200mm
- Max. Line Removal Speed: 500m/h
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Technical Parameters
| Product model | ACE5180 |
|---|---|
| External dimensions | 11210*2550*3450mm (operation) 9810*2550*3450mm (transfer) |
| Wheelbase | 5000mm |
| Curb weight | 18000kg |
| Total mass | 16340kg |
| Chassis | Dongfeng special vehicle chassis |
| Engine model | Cummins B6.2NS6B210 |
| Engine power | 154kW |
| Maximum speed | 89km/h |
| Number of passengers allowed in the cab | 3 |
| Nozzles | 20 ruby nozzles, cross water distribution plate |
| Clean water tank | 3.55m3Large capacity clean water tank, with primary filtration, continuous operation for 4-5 hours |
| Slag water tank | 3.3m3Volume, hydraulic opening door, with vacuum pump protection device |
| Maximum line removal width | 200mm |
| Maximum speed of line removal | 500m/h (vehicle-mounted working device) |
| Line removal efficiency | 60-90m2/h (vehicle-mounted working device) |
| Maximum speed of line removal | 2500m/h (vehicle-mounted working device) |
| Line removal efficiency | 300-500m2/h (vehicle-mounted working device) |
| Maximum milling speed | 500-800m/h (vehicle-mounted working device) |
| Milling efficiency | 120-160m2/h (vehicle-mounted working device) |
Main Feature
1. Professional Production
Approved by national vehicle models, environmental certification, and 3C certification; the only domestic manufacturer with road marking vehicle production qualifications, with workshops for machining, welding, painting, and assembly.
2. Top Brand Components
Dongfeng specialized vehicle chassis, imported or high-quality domestic high-pressure water pumps, imported hydraulic components, imported core electrical components, and high-performance engines.
3. Multifunctional Configuration
280MP ultra-high-pressure water pump, equipped with automatic cleaning/removal devices, removal/cleaning hand pushcart, visual intelligent operation platform, and patented recovery sludge box.
4. High Integration
Combines both line removal and cleaning functions, with a fully automatic tilting sludge box, 3-stage filtration protection device, and sludge box cleaning system. Optional patented front milling-type high-efficiency removal device.
5. Safe, Economical, and Efficient
Comprehensive self-protection system; outstanding performance, cost-effective, and precise control.
Construction Case
