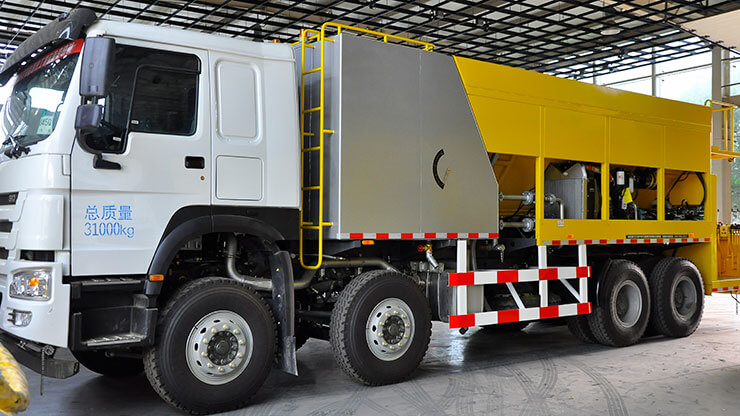

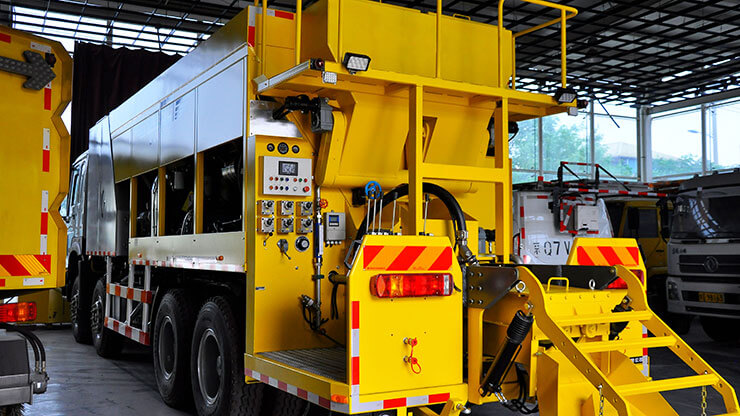

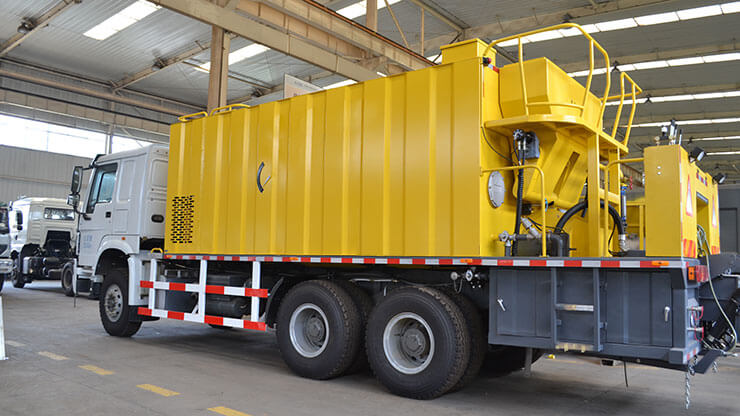

Slurry Seal Equipment

Slurry seal equipment is an ideal choice for road micro-surfacing and rehabilitation projects. It applies asphalt emulsion, aggregate and additives to asphalt road for maintenance purposes, and can treat many pavement diseases like friction resistance reduction, cracks and ruts, and is ideally suited for slurry sealing, and micro-surfacing construction.

Model: AC5160XJF ~ AC5310XJF
Slurry Tank Volume: 1.2m³ ~ 4.0m³
Highlights: Intelligent operation system, good mixture quality, cut the fiber uniformly and accurately, Key parts from trustworthy brands

ISO、CE、EAC
12-month Warranty
L/C Accepted
7*24H Response

Get Price

Working Principle

AC-XJF series Slurry seal equipment is the best solution for road rehabilitation and has been widely applied in the diluted slurry, modified asphalt, and micro-surfacing treatment.
AC-XJF series Slurry seal equipments come with remarkable performance. They can mix the cold emulsion mixtures at the worksite for immediate pavement surface repair, and they can be self-propelled, trailed or hauled, and can automatically calculate the consumption of materials in accordance with the pit area due to its automatic proportional charging system.

Technical Parameters

ACE provides variety of Slurry seal equipments with different slurry tank volume and paving thickness. They all adopt world-renowned brand components and own proprietary technology, And the practice has proven that the machine has steady and reliable performance.

Product Model	AC5160XJF	AC5250XJF	AC5310XJF
Emission Standards	Euro V	Euro V	Euro V
Chassis Brand	DONGFENG	HOWO	HOWO
Engine Power	210HP	270HP	310HP
Aggregate Hopper Volume	6m³	10m³	12m³
Slurry Tank Volume	1.2m³	3.5m³	4.0m³
Water Tank Volume	1.2m³	3.5m³	4.0m³
Additive Tank Volume	400L	400L	400L
Filler Tank Volume	0.6m³	2×0.5m³	2×0.5m³
Paver Box Width	2.5-4.3m	2.5-4.3m	2.5-4.3m
Vice Engine Power	70kW	70kW	110kW
Mixer Production Capacity	≤2,500kg/min	≤3,500kg/min	≤3,500kg/min
Overall Dimension (L×W×H)	10005×2490×3450mm	11200×2495×3400mm	12250×2500×3360mm

Main Feature

Reliable slurry seal truck using HOWO chassis with low oil consumption and strong driving force — It adopts HOWO chassis, and features low oil consumption, little emission, and strong driving force

Slurry seal equipment with high and low gear systems for both driving and stable construction — The slurry seal truck comes with both high and low gear. The high gear is designed for driving and the low one is used for construction

Independent hydraulic power supply systems for each component of the micro surfacing paver — Independent hydraulic power supply systems are available for each system, which doesn't interfere with each other

Centralized control platform for slurry seal truck with one-button operation for high efficiency — With centralized control, all of the operations are controlled by a platform. Users can start or stop the Slurry seal equipment simply with one button

Efficient aggregate transmission system with vibration absorber and patented fiber supply system — Aggregate is transported smoothly and stably with an effective transmission system comprised of hopper, vibration absorber and belt conveyor. A patented fiber supply system is introduced to cut the fiber uniformly and accurately

Advanced mixing device with tungsten carbide blades for high quality slurry mixture — An advanced mixing device with durable tungsten carbide blade ensures good mixture quality. Angle of where the materials are discharged is adjustable according to road slope

Patented paver box with double-row screw propeller and automatic retractable structure — The paver box adopting patented technology is equipped with a double-row screw propeller to mix the slurry well and prevent them from segregation. The automatic retractable structure meets different construction needs

Modular control system with CAN bus and speed sensing for precise material ratio control — The control system employs a modular design, special controller for engineering use, and CAN bus system. With a distributed bus control system, the control elements are driven directly by the controller, allowing for much-improved system stability and consistency. An advanced speed sensing device joins with the control system for precise volume and ratio control of different materials
