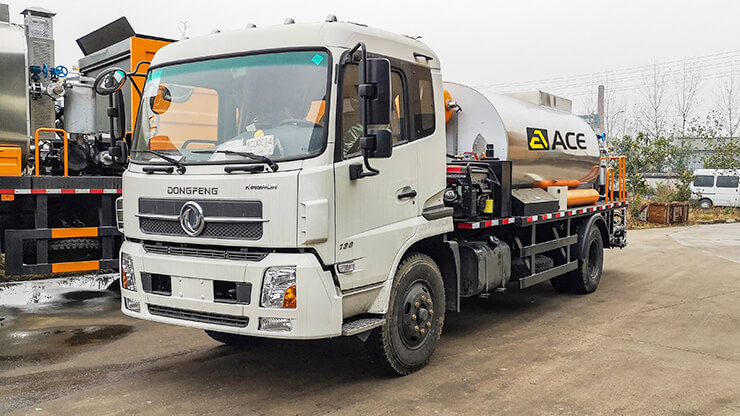

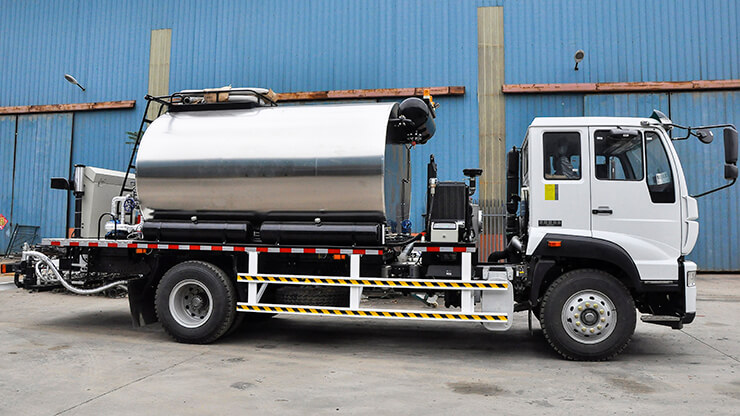

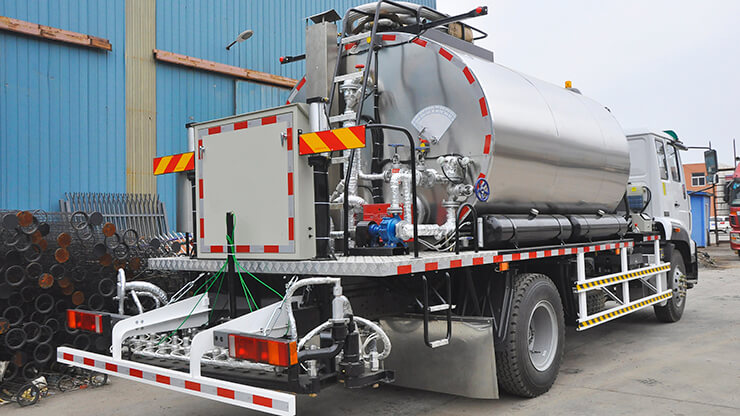

Asphalt Distributor
AC-GLQ series asphalt distributor is a kind of intelligent hi-tech product specialized in spraying emulsified bitumen, diluted asphalt, modified bitumen, hot asphalt, heavy-duty asphalt, rubberized asphalt, high viscous modified asphalt and so on. Its reasonable designs guarantee the asphalt spray uniformity. It has been improved and perfected continuously and can adapt to any kind of working conditions.
- Model: AC5090GLQ ~ AC5250GLQ
- Asphalt Tank Volume: 4,000L ~ 12,000L
- Highlights: High spray consistency, asphalt runs smoothly, auxiliary working hours shortened largely, energy-saving
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Process
1st Step: Pump the hot asphalt from storage pool into asphalt tank through asphalt pump.
2nd Step: Transport it to the construction site and heat the asphalt up to working temperature by the heating system.
3rd Step: Open asphalt pump and spraying valve by operating the electrical apparatus control system.
4th Step: According to three overlapping spraying effects, spray the hot asphalt on pavement on the basis of measured distributing amount and pressure.
Technical Parameters
| Product Model | AC5090GLQ | AC5110GLQ | AC5160GLQ | AC5250GLQ |
|---|---|---|---|---|
| Chassis Brand | JAC | DONGFENG | DONGFENG/HOWO | HOWO |
| Engine Power | 125HP | 140HP | 180HP | 290HP |
| Asphalt Spray Rate | 0.25-3.0L/m2 | 0.25-3.0L/m2 | 0.25-3.0L/m2 | 0.25-3.0L/m2 |
| Asphalt Tank Volume | 4,000L | 5,500L | 8,000L | 12,000L |
| Spray Width | 4,500mm/6,000mm | 4,500mm/6,000mm | 6,000mm | 6,000mm |
| Number Of Nozzles | 33/39 | 33/39 | 39 | 39 |
| Asphalt Heating Mode | Heat conduction oil heating | Heat conduction oil heating | Heat conduction oil heating | Heat conduction oil heating |
| Overall Size (L×W×H) | 7380×2250×2650mm | 7380×2250×2650mm | 8995×2490×3160mm | 11260×2490×3690mm |
