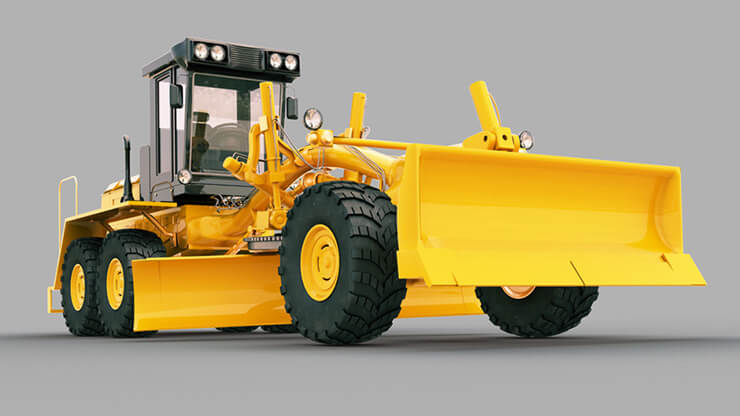

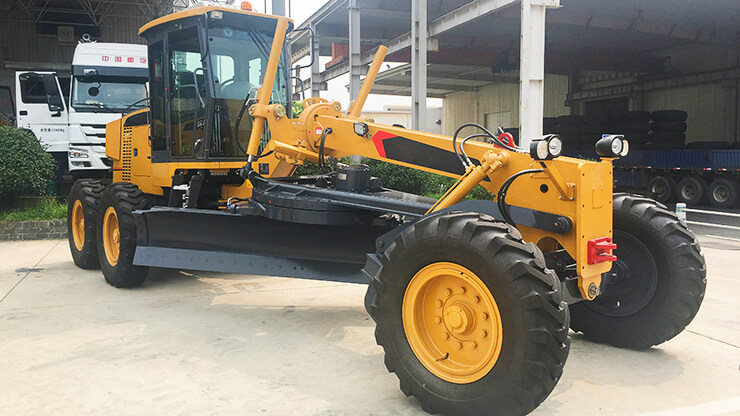

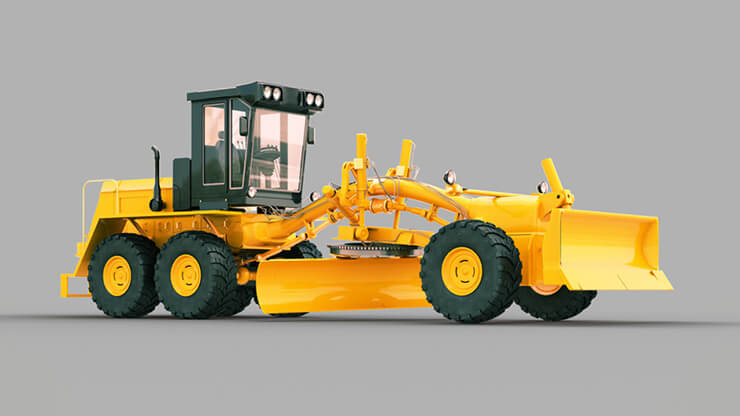

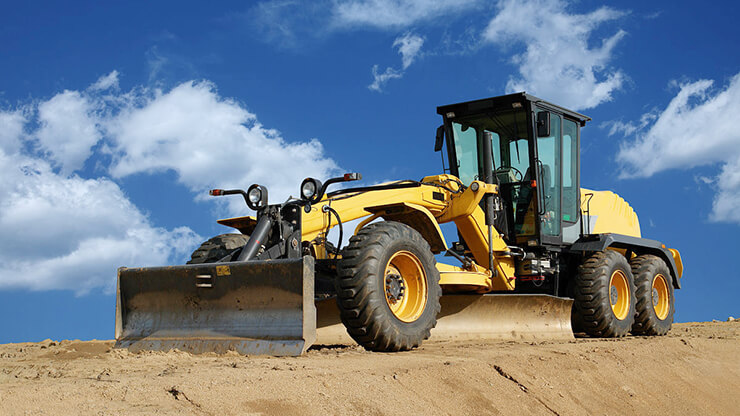

Motor Grader

Motor grader is a high-speed, high-efficiency, high-precision and multi-purpose earthmoving engineering machine. It is widely used in road, airport and other large-scale ground leveling operations. It can also stir road surface mixtures, remove snow, push loose materials, and maintain soil and gravel roads.

Model: APY135 ~ APY220
Turning Radius: 7,500mm ~ 7,800mm
Highlights: Highly efficient hydraulic system, high working safety and reliability, great stability

ISO、CE、EAC
12-month Warranty
L/C Accepted
7*24H Response

Get Price

Scope of Application

APY series motor grader is articulated, hydraulic-driven, self-propelled construction machine. It is featured by mufti-function and high efficiency, an ideal machine for large-scale land leveling, also can be used for ditching, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing. APY series motor grader is suitable for construction projects ranging from road, highway, railway, airport, harbor, dam, industrial and farm land leveling.

Technical Parameters

By virtue of rich engineering experience and the adoption of advanced technology both at home and abroad, the performance of APY motor grader has received good feedback among construction sectors and supervision departments.

Product Model	APY135	APY165	APY180	APY220
Operating Weight	13,800kg	15,000kg	16,000kg	16,900kg
Front Axle Load	4,000kg	4,150kg	5,150kg	5,820kg
Rear Axle Load	95,800kg	108,500kg	108,500kg	110,800kg
Max. Forward Speed	38.3km/h	40.4km/h	36.0km/h	36.8km/h
Max. Backward Speed	24.4km/h	25.7km/h	25.0km/h	24.8km/h
Speed Gear Number	F6/R3	F6/R3	F6/R3	F6/R3
Turning Radius	7,500mm	7,500mm	7,800mm	7,800mm
Hydaulic System Pressure	18MPa	18MPa	18MPa	18MPa
Size of Blade (L×H)	3660×610mm	3660×610mm	3965×610mm	3965×610mm
Front Wheel Track	2150mm	2150mm	2150mm	2150mm
Rear Wheel Track	2165mm	2255mm	2255mm	2255mm
Wheelbase	5347mm	5347mm	5647mm	5647mm
Engine Power	97kW/Cummins	125kW/Cummins	132kW/Cummins	158kW/Cummins
Overall Dimension (L×W×H)	8270×2495×3390mm	8305×2695×3420mm	8605×2695×3420mm	8605×2695×3420mm

Main Feature

Motor grader power shift transmission with single-handle manipulation — It adopts power shift transmission featuring single-handle manipulation and elector-hydraulic control

Motor grader gearbox with six forward and three reverse gears — Six forward and three reverse gears

High efficiency hydraulic system with hydraulic lock for motor grader — Highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit

Fully hydraulic brake system for enhanced motor grader safety — Fully hydraulic brake system provides high working safety and reliability

NO-SPIN differential and auto locking function on motor grader — NO-SPIN differential, auto locking and unlocking function, great stability and powerful traction

Heavy-duty box-type frame and advanced transmission system — Box-type frame and advanced transmission make it able to finish heavy-duty task

Motor grader attachments including front dozer and rear ripper — Front dozer and rear ripper as desired
