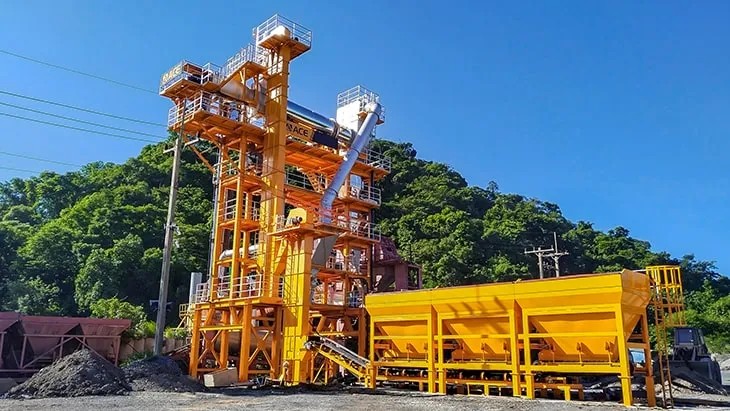

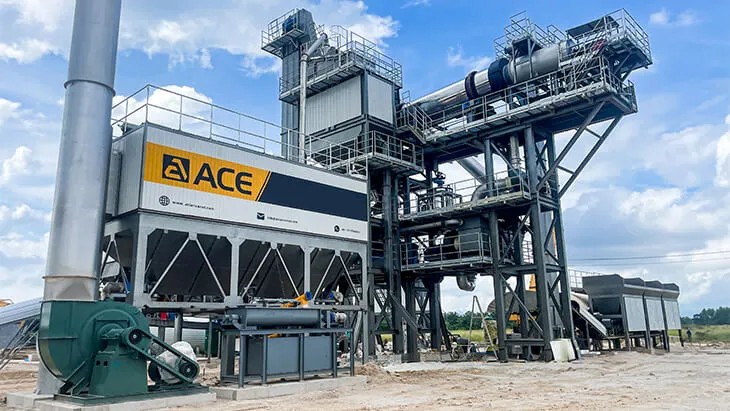

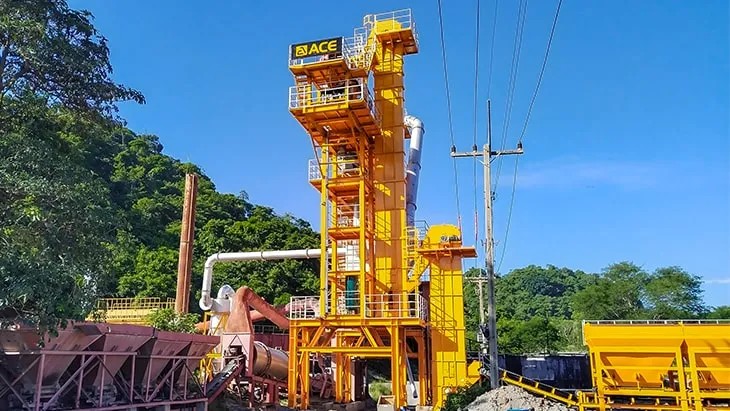

RAP Asphalt Recycling Plant
Asphalt recycling plant RAP series is well-designed to combine reclaimed asphalt pavement (RAP), hot fresh aggregate and filler to produce a new finished mixture that can be used for driveways, roadway, and parking lot repairs. Optimized drying drum, high performance burner and full automatic control enable 100% RAP to be reused. Energy saving, Cost-efficient, Eco-friendly.
- Model: RAP60 ~ RAP160
- RAP Process Capacity: 60 t/h ~ 160 t/h
- Highlights: Saving fuel, no aging RAP, RAP proportion up to 50%
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Brief Introduction

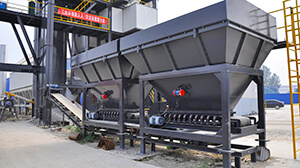

RAP series adds hot recycled equipment to LB Series; by using hot recycling technology, recycled old mixtures (RAP) are conveyed into the mixer and mixed with aggregate and filler to produce new finished mixture with good quality. RAP series can fully make use of old mixtures, save fuel and material, reduce pollution and waste, bring better economic and environmental benefits for clients.
Technical Parameters
| Model | RAP60 | RAP80 | RAP120 | RAP160 | |
|---|---|---|---|---|---|
| RAP processing capacity | 60 t/h | 80 t/h | 120 t/h | 160 t/h | |
| Fuel Consumption | Coal: 13~15 kg/t; Diesel: 6~8 kg/t | ||||
| Weighing Accuracy | Dynamic: ±2.5%; Static: ±0.5% | ||||
| Installed Power (RAP equipment) | 130 kW | 170 kW | 230 kW | 280 kW | |
| Matched asphalt plant and max. RAP proportion | BAP100 | 50% | / | / | / |
| BAP120 | 40% | / | / | / | |
| BAP160 | 30% | 50% | / | / | |
| BAP240 | / | 33% | 50% | / | |
| BAP320 | / | 25% | 37% | 50% | |
Main Features of Hot Recycled Asphalt Plants

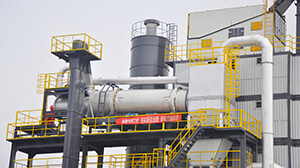

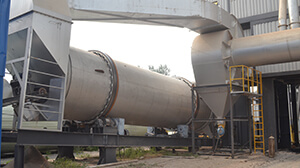

- 1. Saving fuel: high performance burner, full combustion; optimized drying drum, hot air recycled before exhaust, higher heat utilization rate;
- 2. Minimal pollutants: asphalt fumes and harmful gas recycled into drying drum and burn again, reducing harmful fume emission; multi-stage dust collecting system, reducing dust emission;
- 3. Full automatic control by the computer on the air flow through the control of the dampers and the temperature monitoring by the thermometer at various positions, bringing the recycled material to the ideal temperature for the mixing with the virgin material; avoiding aging or burning RAP;
- 4. Recycled asphalt proportion reaches up to 50%.

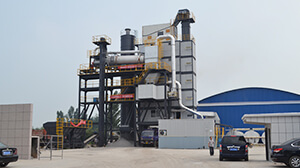

Detailed Information

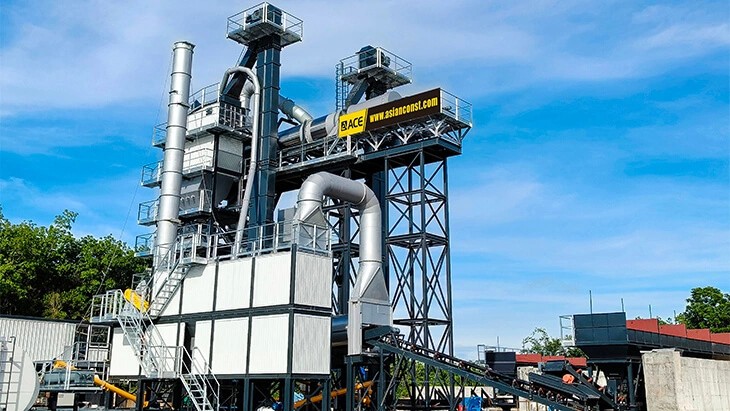

Construction Case
