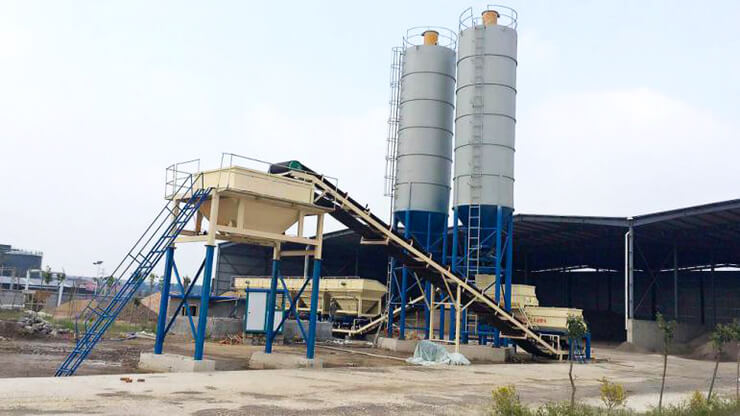

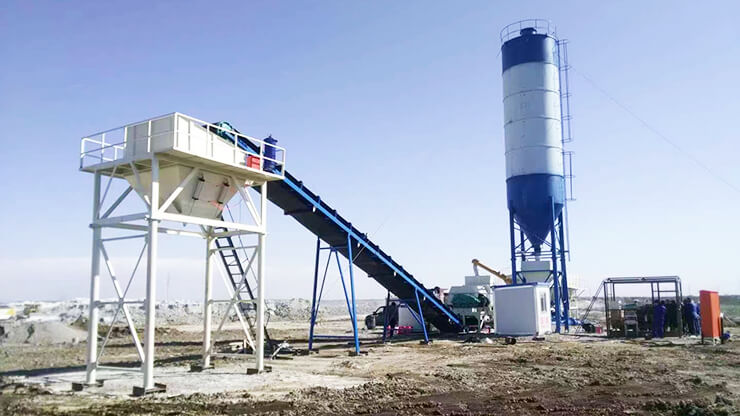

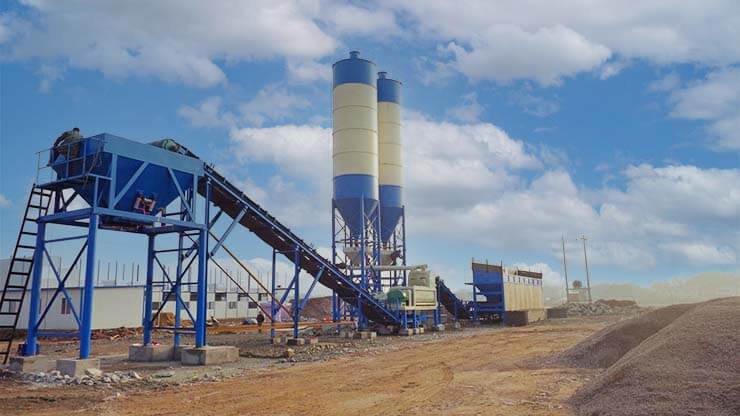

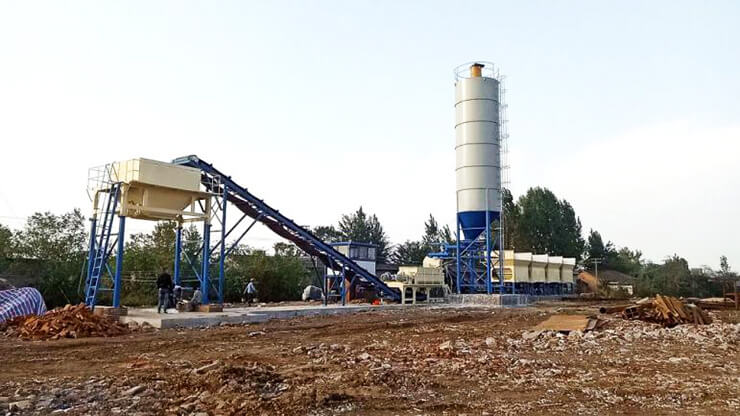

Wet Mix Plant WMP Series

Wet mix plant is also called wet mix macadam plant, and widely used to mix different kinds of materials according to the requirements of customers. It is a production line which produces cement treated base (CTB) and stabilized soil mixture (mainly consisting of soil, cement, water and lime) for road base course construction.

Model: WMP200 ~ WMP600
Capacity: 200t/h ~ 600t/h
Highlights: high mixing effects, high weighing accuracy, bad quality concrete totally avoidable

ISO、CE、EAC
12-month Warranty
L/C Accepted
7*24H Response

Get A Quote

Scope of Application

WMP series wet mix plants are well designed to agitate various mixtures to produce a variety of stabilized soil base materials, such as cement stabilized soil, lime stabilized soil, and gravel stabilized soil. These stabilized soil base materials are widely used in high-grade highways, railways, and municipal construction.

Technical Parameters

Model		WMP200	WMP300	WMP400	WMP500	WMP600
Capacity (T/H)		200	300	400	500	600
Powder bin (T)		50	50	50	100	100
Finished storage bin (m³)		4	4	7	7	7
Diameter of aggregate		≦45 mm	≦45 mm	≦45 mm	≦60 mm	≦60 mm
Proportioning kinds		3	3	4	4	5
Accuracy	Aggregate	±3%	±3%	±1%	±1%	±1%
	Cement	±1.5%	±1.5%	±1%1%	±1%
	Water	±1.5%	±1.5%	±1%	±1%	±1%
Total power		71 kW	88 kW	120 kW	140 kW	148 kW

Main Components

Patent vibration mixer for wet mix macadam plant to prevent segregation — WMP series wet mix macadam plant is equipped with our patent vibration mixer. Vibration mixer, shattering agglomeration of cement, aggregate and soil, homogenizing all material evenly, helps to prevent finished mixture from segregation

High precision dynamic weighing system with click to supplement technology — “Click to supplement” patent technology has been adopted to ensure the dynamic weighing accuracy to±1%

Vibration mixing process for better cement hydration and stable road structure — Vibration mixing make cement fully hydrate with water. Cement-hydrate and fine aggregate wrap coarse aggregate and forming stable structure that help to increase road service time

High strength WMM mixture produced by advanced vibration mixing technology — Under same recipe and batching, strength of WMM (stabilized soil) mixtures under vibration mixing is 20% higher than common twin-shaft mixer. High strength WMM mixture help to enhance base layer and reduce cracks on pavement

Efficient material utilization system reducing cement consumption by 8 percent — Vibration mixing can shatter all material completely and make full use of them. Utilization rate of cement, additives and other material are higher. In the premise of quality and performance, it reduces cement consumption by 8%

Dual vibration mixer configuration for ultra high performance WMM production — To meet demand for high and ultra-high performance WMM, VIBMIX uses two vibration mixer working together on one plant. Material are mixed twice in a short time, thus performance of finished WMM mixture are improvement significantly

Intelligent control system with touch screen and multiple operation patterns — Equipped with touch screen, micro computer, two sets of operation systems, three working patterns(manual operation, semi-automatic operation,automatic pattern) to make the system perform reliably

Patent pneumatic conveying unit for precise additive weighing and dosage — The pneumatic conveying unit that obtained the national patent has been used to weigh and convey additive, thus totally avoid producing bad quality concrete due to the inappropriate admixture amounts.

Construction Case

Wet mix plant for Chizhou Yangtze River Bridge infrastructure project — Wet Mix Plant for Chizhou Yangtze River Bridge Project

High speed road project wet mix plant installation in Anhui — Wet Mix Plant for High Speed Road Project in Anhui

Wet mix plant operating for road construction in Hechi Guangxi — Wet Mix Plant Working in Hechi, Guangxi Province

Wet mix macadam plant for highway base layer construction — Wet Mix Macadam Plant for Highway Construction Project

Vibration mixing stabilized soil plant project in Guangxi Province — Vibration Mixing Stabilized Soil Plant in Guangxi Province

Stabilized soil mixing plant site in Ganzhou Jiangxi Province — Stabilized Soil Plant in Ganzhou, Jiangxi Province

Wet mix macadam plant operating in Pingyin Shandong Province — Wet Mix Macadam Plant in Pingyin, Shandong Province

Wet mix plant for urban avenue project in Shenyang Liaoning — Wet Mix Plant for Avenue Project in Shenyang City, Liaoning Province
