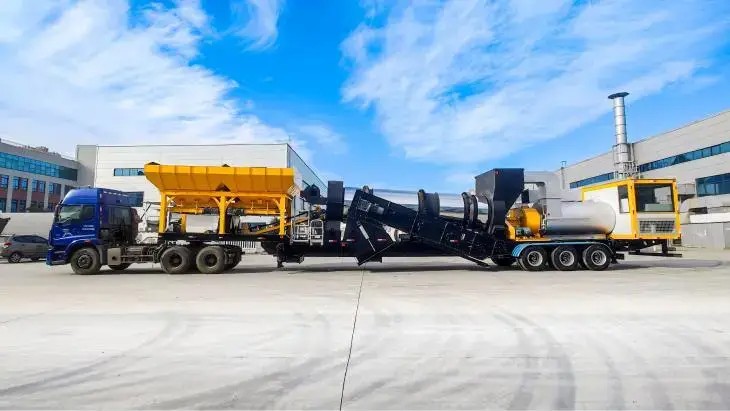

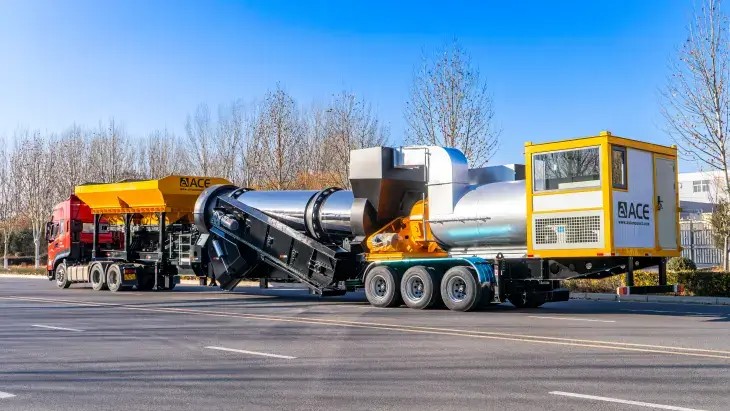

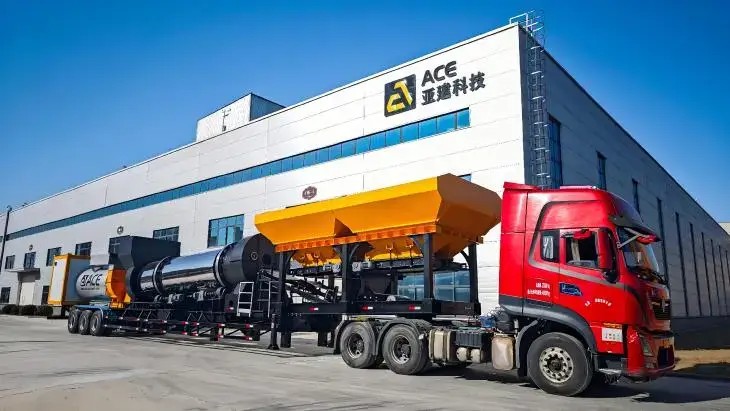

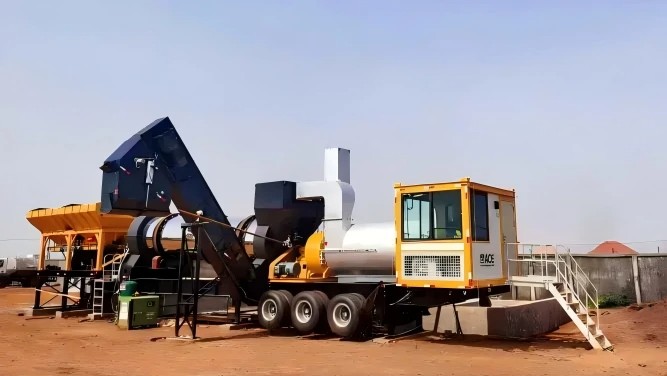

Super-mobile Asphalt Plant IAP Series
IAP Series has the following characteristics: All components integrated into one or two movable units, rapid assembly (only several hours are needed), no foundation required, efficiency of fuel consumption. They are ideal for all types of road-building projects.
- Model: IAP40 ~ IAP120
- Capacity: 40t/h ~ 120t/h
- Highlights: One or two-in-one mobility, quick transfer; reassemble within hours; zero foundation required, water film & cyclone dust filtration techniques
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
IAP series asphalt plants feature flexibility and hypermobility, quite easy to implement relocation between job sites; not a month, not a day, only a while needs to be taken to reassemble and restart production; folding brackets and ingenious engineering leave no foundation required, lots of downtime and labor force saved.
Technical Parameters
ACE’s asphalt plants are known for productivity, efficiency, and durability. IAP series specifically researched and developed for regions where high mobility is in demand, is no exception.
| Model | IAP40 | IAP60 | IAP80 | IAP100 | IAP120 |
|---|---|---|---|---|---|
| Capacity | 40 t/h | 60 t/h | 80 t/h | 100 t/h | 120 t/h |
| Drying & Mixing Drum | Φ1200*5000mm | Φ1500*6500mm | Φ1500*6650mm | Φ1500*7500mm | Φ1800*8000mm |
| Fuel Consumption | diesel consumption: 6.5 kg/ton | ||||
| Hot Asphalt Temperature | 130℃-165℃ (adjustable) | ||||
| Air Emissions | ≤100 mg/Nm³ | ||||
| Installation Power | 63.55 kW | 99.5 kW | 115 kW | 167 kW | 226 kW |
| Total Weight | 26 T | 30 T | 40 T | 55 T | 70 T |
| Transport State Dimension | 17.1m*3.09m*4m (L*W*H) | 20m*3.09m*4m (L*W*H) | 23m*3.09m*4m (L*W*H) | 23m*3.09m*4m (L*W*H) | 23m*3.09m*4m (L*W*H) |
| Plant Covering Area | 17m*37m*5.5m (L*W*H) | ||||
Main Features
1. Whole production line in only one or two mobile unit
Lower transport costs, and lower investment of the plant and freight package; easy adaptation to different construction sites, low complexity for installation, less mobilization and assembly time.
2. Efficiency in fuel consumption
The repeatedly optimized design of the lifting blade and the stainless steel insulation layer can effectively reduce the heat loss of the drying drum; The burning zone of the drying drum adopts wear-resistant and heat-resistant materials with long service life.
3. Control system with switchable operation modes
Auto and manual operation mode are available, and the operator can switch to manual operation at any time.
4. Stronger dust filting effect
Water mist is formed inside by 6 clog-free large stainless steel spray nozzles; water film and cyclone dust filtration techniques also contribute to a very good entrapping of the dust-laden exhaust gas; The damper of the induced draft fan can be automatically adjusted to formulate the constant negative pressure, helping achieve optimum cleaning efficiency.
5. Optimized cold feeders
The underfeeding alarm, automatic wall vibrator, individual belt scale beneath each hopper, synchronous proportional automatic control, protection grid at top of each hopper, ect, make cold feeders more functional.
6. Parallel-flow drying
Continuous mixing ensures extra-high production efficiency of the whole plant; World famous dual-fuel burners are available for option, with combustion efficiency guaranteed.
7. Drag chain load-out conveyor makes secondary mixing reality
Secondary mixing can be realized thanks to the drag chain conveyor, making the asphalt mixture more uniform; it is fully enclosed to avoid heat loss and minimize the contamination of the surrounding environment caused by the asphalt fume.
8. Optional bitumen tank
Two kinds of bitumen tanks are available-the hot oil heated tanks and the direct heating tanks; Provided with automotive chassis, the bitumen tank is also easy to move as one mobile unit.
Main Components
Dynamic weighing can be accieved via Individual belt scale beneath each hopper.
Two-stage ignition system is employed, and famous dual-fuel burners are available for option
It possess excellent mechanical properties with double axle assembly and eight wheels
It is designed in strict accordance with the required environmental standard in specified areas.
The mix is dragged by scraper and all the fines are conveyed and not lost.
High-quality production of the entire plant can be regulated and controlled by the fully computerized control system.
All bitumen tanks are supplied with auto thermostatic controls and level indicators.
