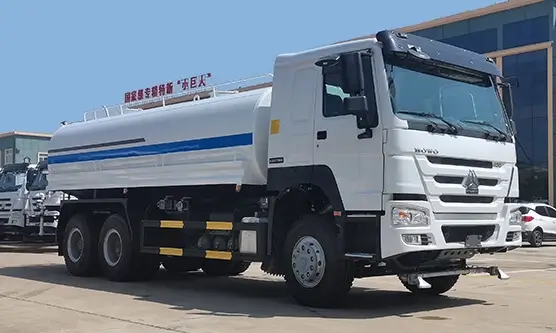

Sprinkler Truck
The sprinkler truck consists of tank body, Chassis, water pump, power take-off, transmission shaft, ball valve, spraying devices and other components. The tank is made of high-quality carbon steel with advanced welding technology, high strength, stable center of gravity, and safe and stable vehicle transportation.
- Front flushing nozzle: Flow rate 460L/MIN, flushing width ≥ 14 meters
- Rear sprinkler: Flow rate 430L/MIN, flushing width ≥ 12 meters
- Overall Performance: Stable, reliable operation, universal adaptability.
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Standouts

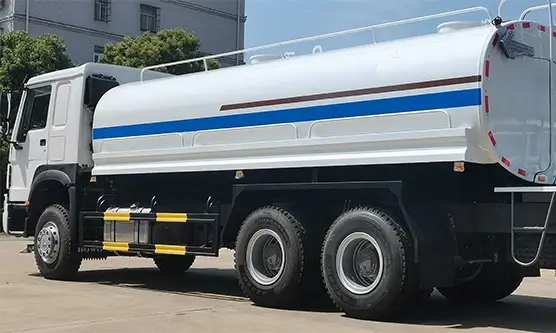

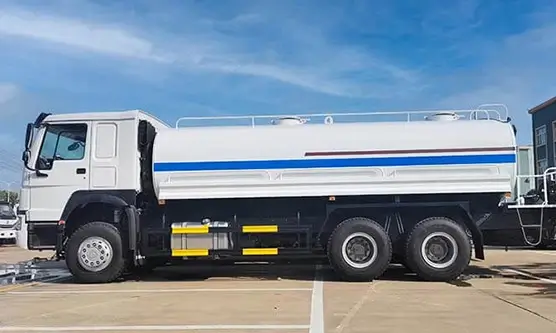

Using nationally standardized products. The structure of the sprinkler truck tank is elliptical or square. The tank body is made of 4mm thick Q235 high-quality carbon steel and coated with metal paint, with a volume of 8-15m³. The tank is equipped with Yifeng's high-power special sprinkler pump, anti-oscillation and anti-wave partitions, and has a through hole at the lower end. After the tank is formed, high-pressure gas leakage testing will be carried out uniformly to ensure its safety and quality.
Technical Parameters
| Dongfeng Chassis | Parameters |
|---|---|
| Chassis model | EQ1165LJ9BDE |
| Chassis brand | DONGFENG |
| Number of axes | 2 |
| Front wheelbase(mm) | 1858,1949,1765,1891 |
| Wheelbase(mm) | 3950,4500,4700 |
| Rear wheelbase (mm) | 1806,1865,1750 |
| Number of tires | 6 |
| Tire specifications | 9.00R20,10.00R20 |
| Approaching the departure angle | 19/13 |
| Front suspension and rear suspension | 1230/1840,1230/2150,1230/2347 |
| Note: Available with other chassis of Dongfeng or other Chinese brands, such as Jiefang, Foton, SHACMAN, HOWO, etc. | |

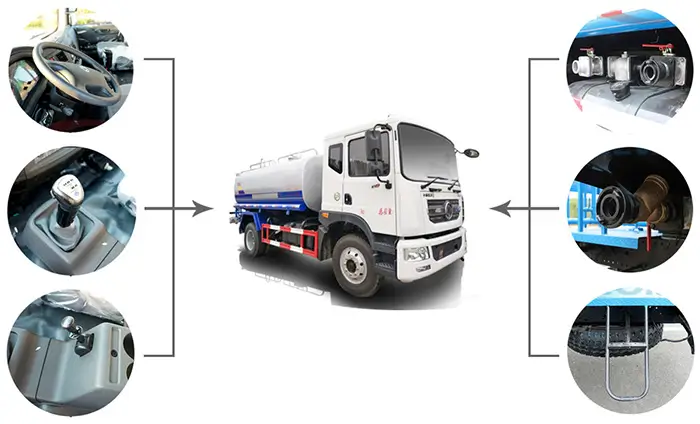

Vehicle Configuration

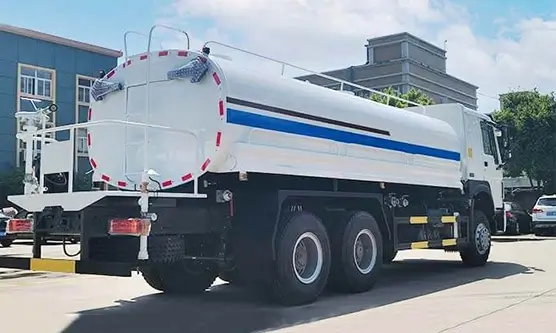

Top configuration: The tank body is is equipped with front spray, rear spray, and side spray devices. A safety work platform with sprinkler gun for greening behind the tank. The sprinkler gun can rotate in all directions and can be continuously adjusted to pouring, heavy rain, light rain, and drizzle.
Chassis configuration: Using Dongfeng original chassis. Equipped with a front flip-up semi-cab, a 160-180 horsepower engine, 5-6 speed gearbox, 9.00-20 steel wire tires, exhaust braking, and original ABS anti-lock braking system.
Application: Cleaning of highway and squares, watering of green belts, assisting in firefighting operations
