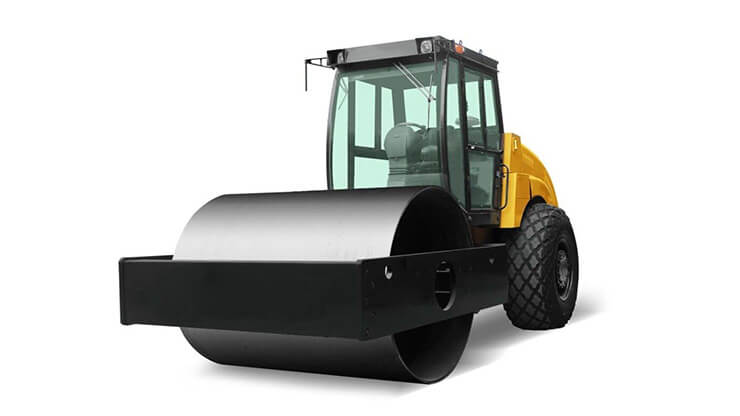

Single Drum Mechanical Vibratory Roller for Sale

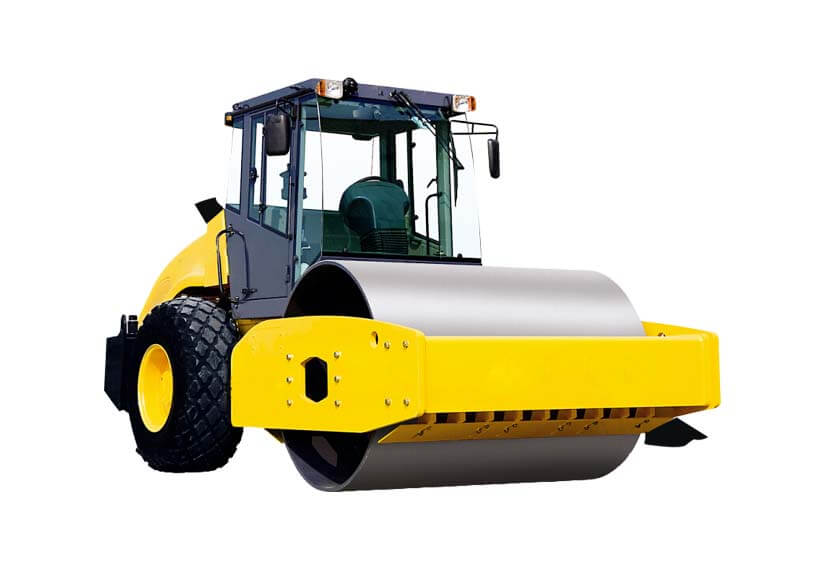

Single Drum Mechanical Vibratory Roller Price

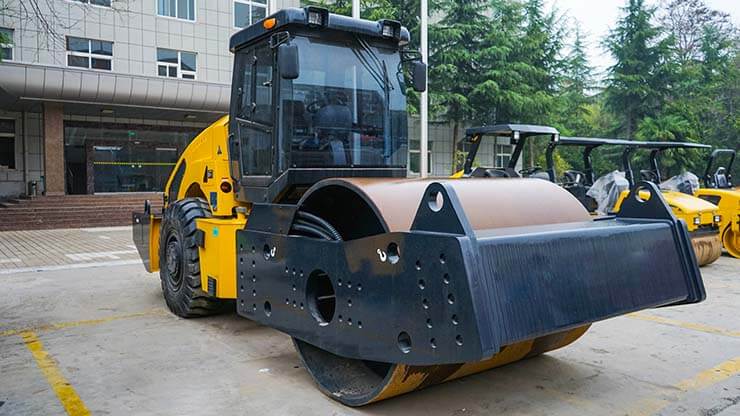

Single Drum Mechanical Vibratory Roller Manufacturer

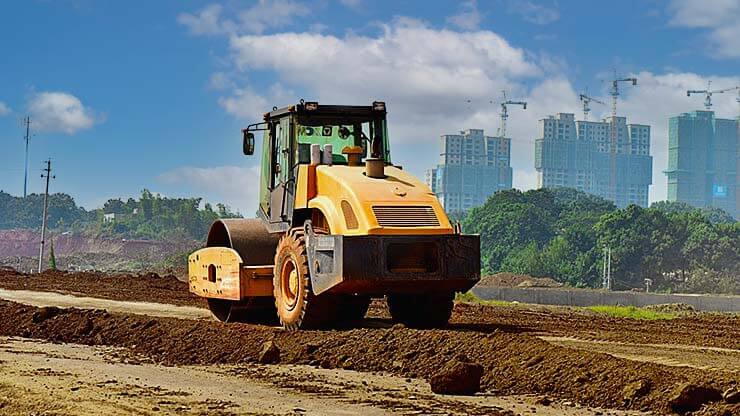

Single Drum Mechanical Vibratory Roller Wholesale

Single Drum Mechanical Vibratory Roller

Mechanical heavy-duty single drum vibratory rollers effect powerful centrifugal force and great static linear load, are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings, and slight for cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways, and industrial areas, etc.

Model: AT212 ~ AT200
Operation Weight: 12,000kg ~ 20,000kg
Highlights: Advanced hydraulic vibration technology, mechanical travel drive

ISO、CE、EAC
12-month Warranty
L/C Accepted
7*24H Response

Get Price

Scope of Application

AT series single drum mechanical vibratory rollers are widely used in various road construction projects, with the strong function of compacting materials, no matter whether it is cohesive or non-cohesive. Dual frequency, double amplitude vibratory mode produces greater excitation force, making them ideal machines. Otherwise, single drum hydraulic road rollers are available.

Technical Parameters

Product Model	AT212	AT214	AT216	AT218	AT220
Operation Weight	12,000kg	14,000kg	16,000kg	18,000kg	20,000kg
Static Linear Load	276N/cm	326N/cm	378N/cm	415N/cm	460N/cm
Vibration Amplitude	1.6mm/0.8mm	1.7mm/0.8mm	2.0mm/1.0mm	2.0mm/1.0mm	2.0mm/1.0mm
Vibration Frequency	30Hz	30Hz	30Hz	30Hz	30Hz
Centrifugal Force	270KN/140KN	290KN/160KN	320KN/180KN	340KN/200KN	360KN/220KN
1st gear	1.8km/h	2km/h	2km/h	2km/h	2km/h
2nd gear	3.7km/h	4km/h	4km/h	4km/h	4km/h
3rd gear	9.7km/h	10.5km/h	10.5km/h	10.5km/h	10.5km/h
Gradeability	35%	35%	35%	35%	35%
Turning Radius	7,000mm	7,000mm	7,500mm	7,500mm	7,500mm
Vibration Round Width	2,100mm	2,100mm	2,100mm	2,100mm	2,100mm
Wheelbase	3,080mm	3,160mm	3,160mm	3,160mm	3,160mm
Ground Clearance	360mm	432mm	432mm	432mm	432mm
Engine Power	97kW/Cummins	97kW/Cummins	97kW/Cummins	132kW/SHANGCHAI	132kW/SHANGCHAI
Dimension (L×W×H)	5640×2258×3000mm	5820×2280×3000mm	5820×2280×3000mm	5820×2280×3000mm	5820×2280×3000mm

Main Feature

Single drum mechanical roller with double amplitude and hydraulic vibration system — Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance

Equipped with reliable YUCHAI or CUMMINS diesel engine for easy maintenance — Reliable YUCHAI or CUMMINS diesel engine for convenient operation and maintenance

Double brake system with hand and foot pedals for enhanced machine safety — Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability

Spacious road roller cab mounted on high quality rubber damping elements — Spacious and comfortable cab mounted on top quality rubber damping elements

Advanced hydraulic vibration technology with high reliability and low maintenance cost — World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost

Optional pad foot or removable pad foot for different soil compaction needs — Equipped with pad foot or removable pad foot as option

Invert hood with electric lifting device and large opening angle for easy access — The opening Angle of the invert hood is large. The electric lifting device can make the hood safely stop at any position during the lifting process. The maintenance of all system components is convenient

Streamline shape design with fast braking response and high safety reliability — The whole machine is of streamline shape, and the braking response is fast, the safety reliability is high
