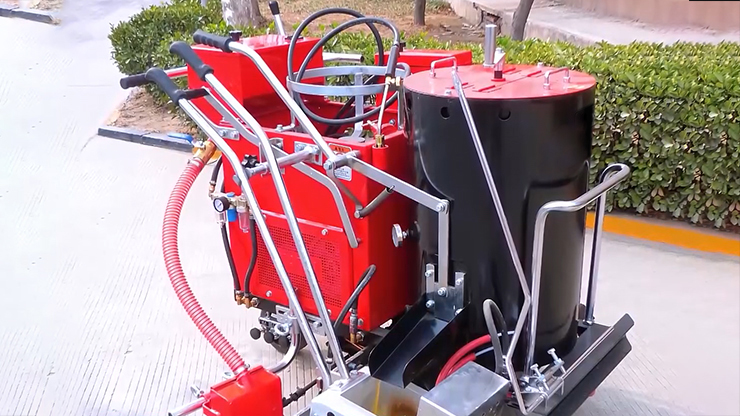

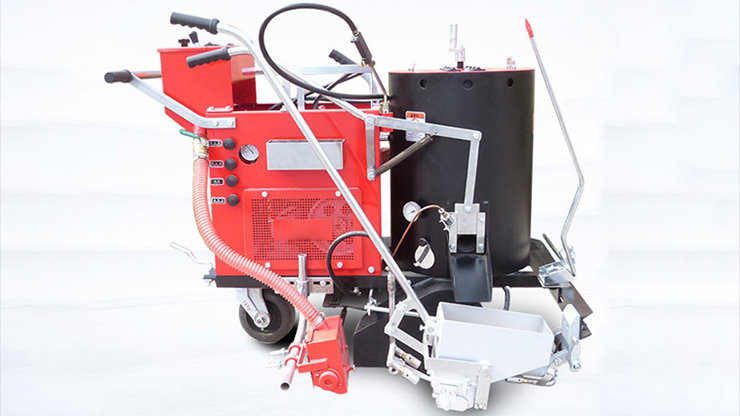

Self-propelled Thermoplastic Screeding Road Marking Machine
Self-propelled thermoplastic screeding road marking machine is a kind of self-propelled thermoplastic road marking machine. It is the best choice for small sized urban road line marking.
- Model: AC-SPT
- Paint Tank Capacity: 65L
- Highlights: Strong bearing capacity, easy operation, stable performance, best choice for small sized urban road line marking
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Principle
Self-propelled thermoplastic screeding road marking machine is a kind of hand-hold self-propelled thermoplastic road marking machine. With imported oil pressurized continuously variable speed transmission system (HTS) with automatic brake device that can freely go ahead, back off and stop.
Driving speed: Forward 0-4km/h, back off 0-3.2km/h. It can mark straight and beautiful road line, which is the best choice for small sized urban road line marking.
Technical Parameters
ACE provides self-propelled thermoplastic screeding road marking machine adopts world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
| Product model | AC-SPT-I | AC-SPT-II |
|---|---|---|
| Engine | Robin 6.0 HP gasoline engine | Robin 6.0 HP gasoline engine |
| Heating Mode | Liquefied petroleum gas, infrared burner | Gasoline or diesel fuel, injecting type burner |
| Paint tank capacity | 65 L | 65 L |
| Glass beads bin | 14 L | 14 L |
| Marking equipment | Manual screeding marking shoe, standard configuration 150 mm | Manual screeding marking shoe, standard configuration 150 mm |
| Marking width | 100 mm, 200 mm, 250 mm, 300 mm (optional) | 100 mm, 200 mm, 250 mm, 300 mm (optional) |
| Marking thickness | 1.8 mm - 3.0 mm (adjustable) | 1.8 mm - 3.0 mm (adjustable) |
| Dimensions (L*W*H) | 1350 mm * 1000 mm * 1100 mm | 1350 mm * 1000 mm * 1100 mm |
| Weight | 230 kg | 230 kg |
| Optional system | Standing trailer, electric start, warning light, lighting lamp | Standing trailer, electric start, warning light, lighting lamp |
Main Feature
Kohler or Robin 6.0 HP hand starting four-stroke air-cooled gasoline engine.
AC-SPT-I uses liquefied petroleum gas heating. AC-SPT-II Use diesel or gasoline injecting type heater, which can save fuel by 50%.
The heating preservation tank capacity is 65L. The heating temperature can be freely controlled (0-230℃) according to different paints.
Bin with window, which can check the quantity of glass beads. Capacity: 14L.
