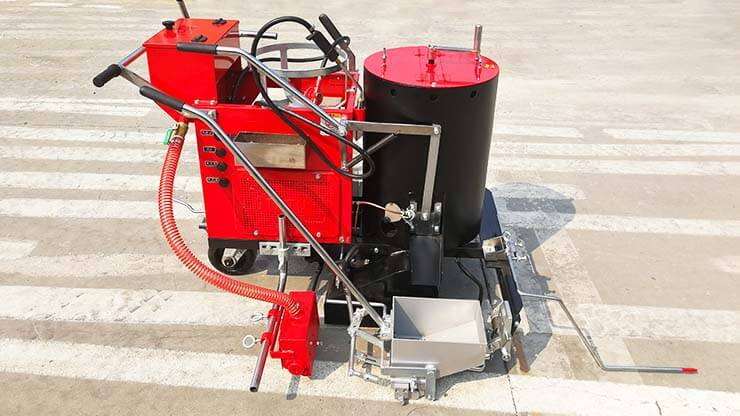

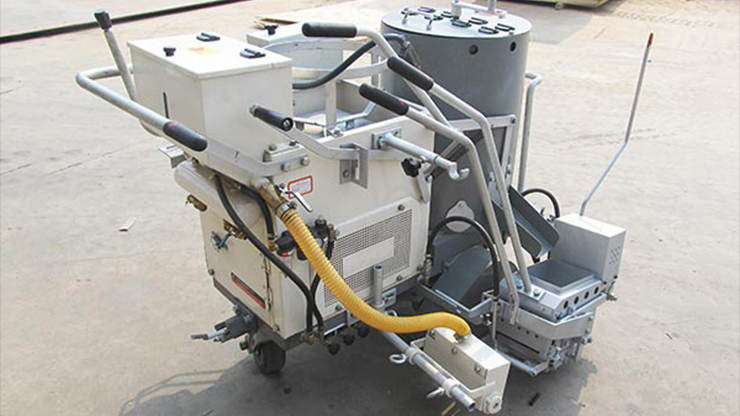

Self-propelled Thermoplastic Convex Road Marking Machine
Self-propelled thermoplastic convex road marking machine is integrated the micro-computer system, sensing system, air compressor, and driving system in one machine, it can finish convex road line marking one time.
- Model: AC-SPTC
- Paint Tank Capacity: 65L
- Highlights: Strong bearing capacity, easy operation
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Principle
Self-propelled thermoplastic convex road marking machine is a kind of hand-hold self-propelled thermoplastic road marking machine, it can mark convex line. It is integrated the micro-computer system, sensing system, air compressor, and driving system in one machine, it can finish convex road line marking one time. Driving system can control the forward, reverse and stop. The back fixed caster makes the machine go straight and turning freely. It is completely conform to the international vibrating and reflective standards, and with stronger deformation resistance.
Technical Parameters
ACE provides self-propelled thermoplastic convex road marking machine adopts world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
| Product model | AC-SPTC |
|---|---|
| Engine | Kohler 6.0 HP or Robin 6.0 HP gasoline engine |
| Air compressor | 0.6 m3/min |
| Heating Mode | Liquefied petroleum gas, infrared burner |
| Paint tank capacity | 65 L |
| Glass beads bin | 14 L |

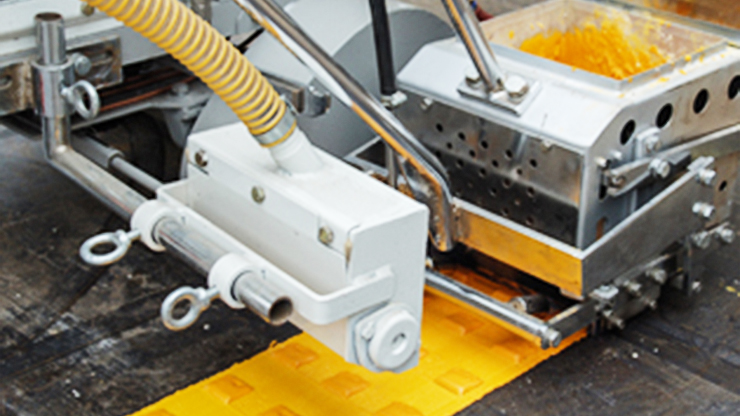

| Marking equipment | Pneumatic convex line marking shoe, standard configuration 150 mm |
| Marking width | 100 mm, 200 mm, 250 mm, 300 mm (optional) |
| Marking thickness | Bottom line 1.0 mm - 2.5 mm (adjustable); convex height 3.0 mm - 7.0 mm (adjustable) |
| Control system | Digital intelligent line type control system / Knob controller |
| Dimensions (L*W*H) | 1420 mm * 1070 mm * 1120 mm |
| Weight | 248 kg |
| Optional system | Standing trailer, electric start, warning light, lighting lamp |
