Mobile Wet Mix Plant MMP Series
Mobile wet mix plant (also called stabilized soil plant) is a road construction equipment for stabilized soil production. It can produce cement treated base (CTB) and stabilized soil mixture, mainly consisting of soil, cement, water and lime, for road base course construction.
- Model: MMP300 ~ MMP600
- Capacity: 300 t/h ~ 600 t/h
- Highlights: Integraded design, compact structure, horizontal square cement silo, easy to transport, fast relocation, quite low relocation cost
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
MMP series mobile wet mix plant adopts horizontal square cement silo,compact design and integrated structure. When it comes to mobile wet mix plant, feeder, mixer, belt conveyor and finish storage bin are integrated in one module which can be transported by a lowbed semi-trailer, therefore, it is quite easy for relocation and suitable for road construction projects that need frequent site relocation.
Technical Parameters
| Model | MMP300 | MMP400 | MMP500 | MMP600 | |
| Capacity (t/h) | 300 | 400 | 500 | 600 | |
| Feeder Capacity | 3 x 5m³ | 3 x 5m³ | 3 x 6m³ | 3 x 6m³ | |
| Cement Silo Capacity (t) | 100 | 100 | 100 | 100 | |
| Finish Bin Capacity (m³) | 2 | 2 | 2 | 2 | |
| Weighing Accuracy | Aggregate | ±2% | ±2% | ±2% | ±2% |
| Cement | ±1% | ±1% | ±1% | ±1% | |
| Water | ±2% | ±2% | ±2% | ±2% | |
Main Components

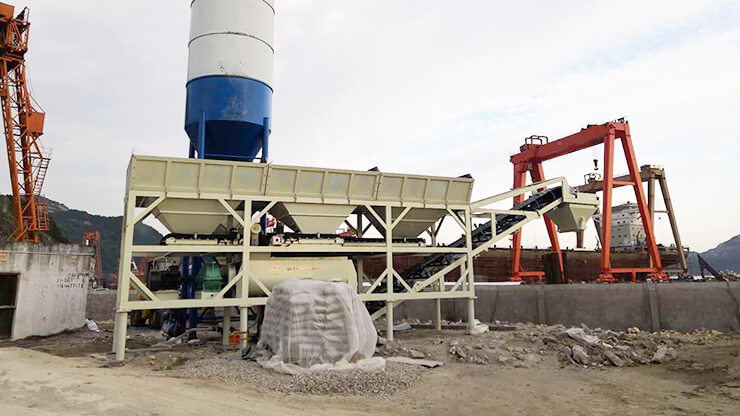

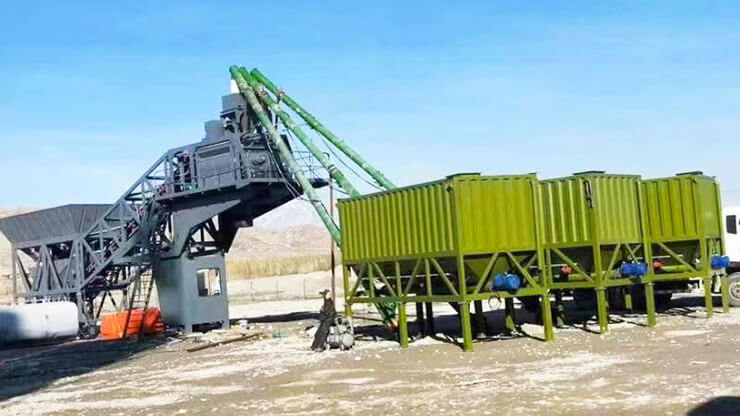

Construction Case
