Mobile Crawler Screening Plant

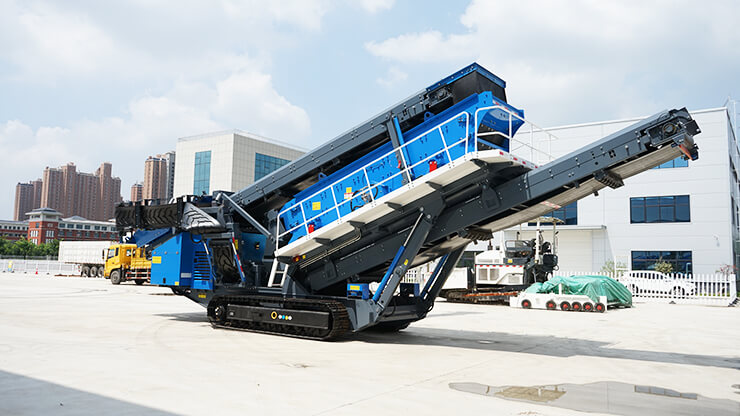

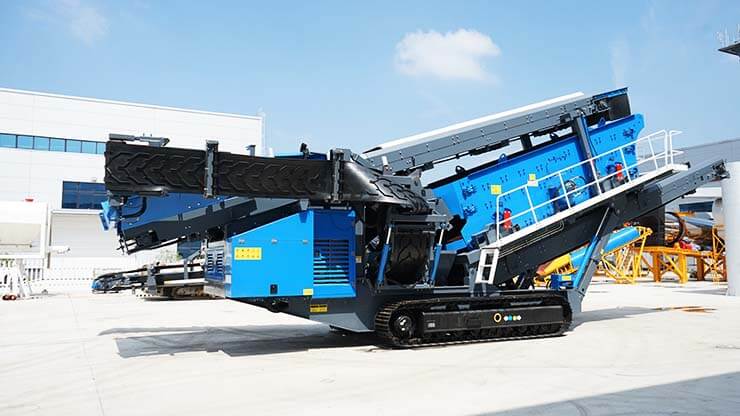

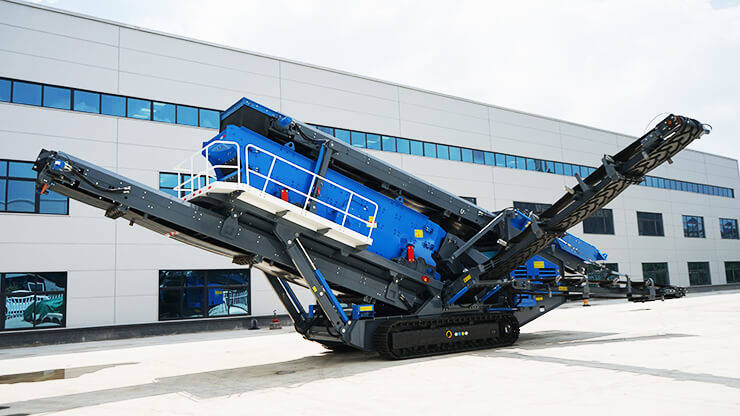

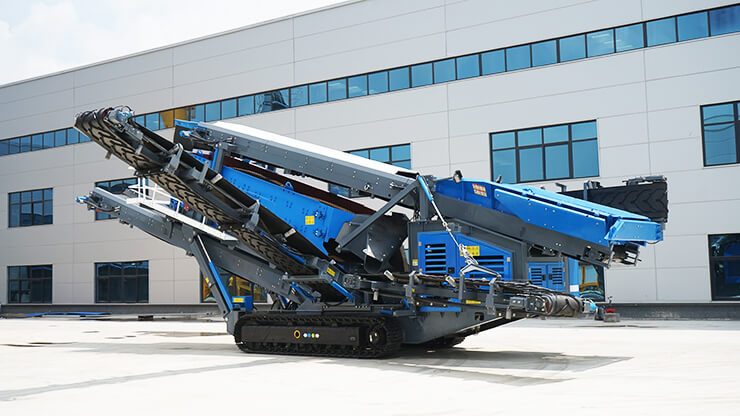

Due to its optimized dynamic design and advanced technology it adopts, the AM series mobile screening plant has formed a more stable, reliable, and high-efficiency screening capability, suited to screen almost all-natural materials and building residues. It is already a piece of ideal equipment for independent screening or multi-stage mobile screening.
- Model: AM3600H
- Processing capacity: 100t/h ~ 350t/h
- Highlights: Diesel-electric drive, diverse applications, high mobility, intelligent control
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
AM track-mounted screening plant has a variety of screen decks and comes with large scope of application. Different screen decks can be selected as per different raw materials and finished product particle size requirements. It can screen 4 kinds of finished materials and the processing capacity ranges from 100t/h to 350t/h.
Technical Parameters
| Model | AM3600H |
|---|---|
| Model Weight | 35t |

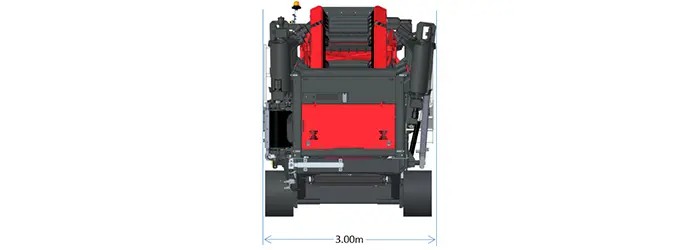

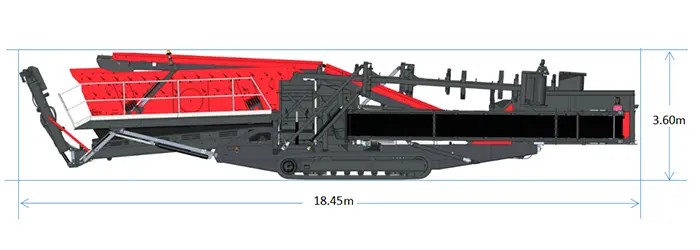

| Overall Dimensions(L*W*H) | 18.45m*3m*3.6m |
| Engine | |
| Engine | CUMMINS Diesel Engine |
| Engine Power | 93kW |
| Feeder | |
| Belt Width | 1200mm |
| Hopper Volume | 8m³ |
| Screen Box | |
| Layer | 3 |
| Screen Boxes Width | 6.10m×1.50m |
| Meshes Type | Side tensioned mesh |
| Main & Fines Aggregate Conveyor | |
| Belt Width | 1200mm |
| Oversize Plus Conveyor | |
| Belt Width | 650mm |
| Belt Type | Chevron conveyor belt |
| Oversize & Medium Aggregate Side Conveyor | |
| Belt Width | 800mm |
| Belt Type | Chevron conveyor belt |
| Other Configurations | |
| Galvanised Catwalk | c/w handrails, steps and access ladders |
| Heavy-duty Crawler Belt Width | 500mm |
| Handheld Crawler Controller | 3m wire |
| Emergency Stop Devices | 3 |
| Anti-wear Hydraulic Oil | - ISO 46 |
| Paint & Decal | RAL5012 Blue, Grey Frame |
Description
- 1. The processing capacity of the screener is determined by numerous factors. The most important factors include feed grain shape, end-product grain shape, and the humidity content.
- 2. Standard configuration: manual control, wireless remote control.
- 3. Optional: Diesel-electric drives, dust-removal spraying system.
- 4. AM3600H mobile screening plant adopts hydraulic drive technology.
Main Feature
1. It adopts intelligent wireless remote control technology and can walk on its own crawler. It can be operated remotely to get on and off the flatbed trailer to realize rapid relocation.
2. The vibrating screen can be raised and lowered by hydraulic pressure, which is convenient for maintenance and replacement of the screen and is also convenient for transportation.
3. The screener can screen up to 4 kinds of the final products, and each finished product conveyor belt can be hydraulically folded so as to realize the whole machine transportation.
4. It is a complete screening system before leaving the factory, and can be quickly put into production without on-site installation and commissioning.
5. According to the customer's needs for screening materials, a plate-type feeding system can be selected to achieve the special material screening.
6. Word famous key devices are employed, Strickland track, Bonfiglioli /Brevini/Eaton drive motor, Cummins diesel engine, Schneider electrical elements, Eaton hydraulic plunger pump, Omron remote controller, etc. Other than these, AM series plant is equipped with hydraulic motor on belt conveyor and feeder. Performance, service life and value of the crusher is guaranteed.
Main Components
Foldable, self-locking, simple and fast loading, safe initial operation
The globally well-known engine is employed, and its strong power and excellent performance will make this fully hydraulic machine more outstanding
Schneider electrical elements and Omron's PLC ensure stable performance of the control system. It has the function of fast fault diagnosis as well
Bring oversized grains back to the feeding unit and make them crushed again
A platform is provided to help gain access to the crusher and the powerpack, and do inspection and maintenance work
Integrated belt conveyor, folding, hydraulic control
All components and functions can be controlled easily via this hand-hold remote controller
British STRICKLAND track, sturdy, stable and durable, allow equipment to move flexibly at the jobsite
Construction Case

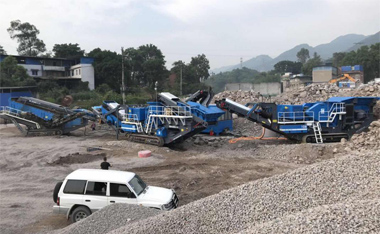

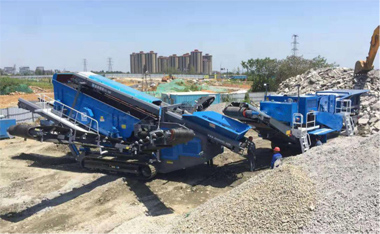

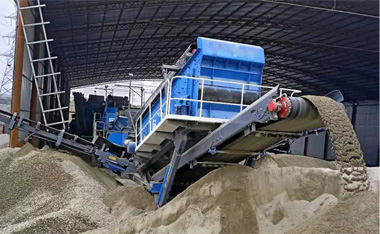

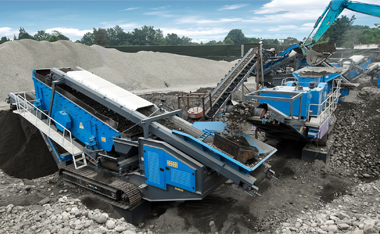

The combination of mobile crusher plants and mobile screening plants is becoming more and more popular, which not only can efficiently use the permitted time of mining, reduce transportation costs, but also can obtain ultra-high-quality finished materials. ACE has launched a number of classic product portfolios and is meanwhile committed to finding the most economical solutions for customers.
