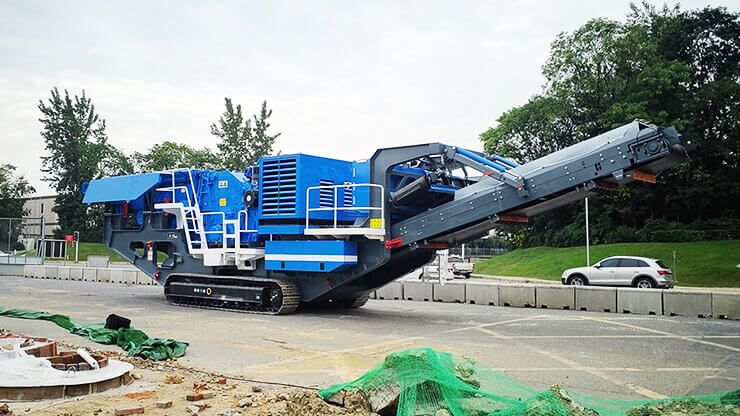

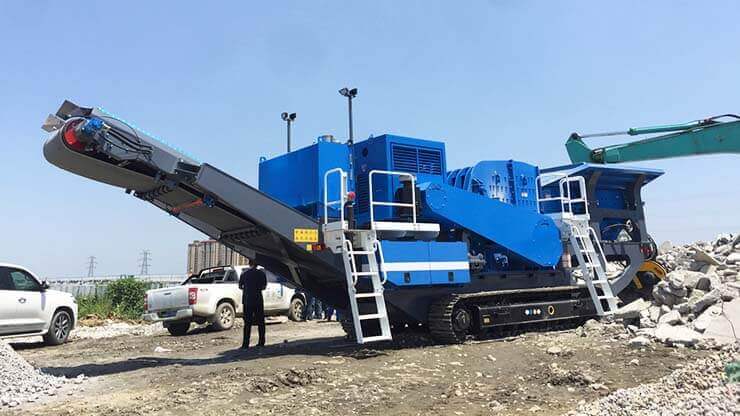

Mobile Crawler Impact Crusher
AMI-1213 Crawler Mobile Impact Crusher uses impact energy to crush materials. The angle of the impact plate can be adjusted to ensure that the aggregates are at a suitable angle when they repeatedly impact between the impact plate and the rotor, which can effectively improve the crushing efficiency. Meanwhile, it is equipped with an external utility power port for flexible-dual use. The plant also effectively reduces the operating costs and improves users' commercial competitiveness.
- Model: AMI1213A/AMI-1213
- Processing capacity: 150t/h ~ 250t/h
- Highlights: Highly mobile, electricity driven, cost-effectiveness, large crushing ratio and strong processing capacity.
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
The AMI-1213 Crawler Mobile Impact Crushing Plant is mainly used for coarse, medium or fine crushing of brittle aggregates below medium hardness such as limestone, coal, calcium carbide, quartz, dolomite, iron sulfide ore and chemical raw materials. The whole machine is driven by electricity, and the whole vehicle can operate on-site with its own power supply.
Technical Parameters
| Model | 1213A(Two-layer Vibrating Screen) | 1213(No Aggregate Return System) |
|---|---|---|
| Feeding Device | ||
| Feed Capacity (t/h) | 400 | 400 |
| Feed Height (mm) | 3700 | 3700 |
| Max. Feeding Size (mm) | 750 | 750 |
| Feed Power (kW) | 15 | 15 |
| Hopper Volume (m³) | 4.5 | 4.5 |
| Tipper Hopper Volume (m³)(Optional) | 6 | 6 |
| Crusher | ||
| Impact Crusher | XC1213 | XC1213 |
| Feeding Port Size (mm) | 1200*870 | 1200*870 |
| Triangular Belt | 8V-8 slot | 8V-8 slot |
| Belt Pulley of Crusher (mm) | 1100 | 1100 |
| Belt Pulley of Motor (mm) | 430 | 430 |
| Discharge Port Adjustment Range (mm) | 30-125 | 30-125 |
| Max. Feed Size (mm) | 400 | 400 |
| Crusher Power (kW) | 250kW-4 | 250kW-4 |
| Main Belt Conveyor | ||
| Width(mm) | B1000 | B1000 |
| Discharge Height (mm) | 3900 | 3900 |
| Geared motor Power (kW) | 7.5*2 | 7.5*2 |
| Fine Aggregate Belt Conveyor | ||
| Width(mm) | B1200 | / |
| Geared motor Power (kW) | 11 | / |
| Discharge Height (mm) | 3000 | / |
| Return Belt Conveyor | ||
| Width(mm) | B500 | / |
| Electric Roller Power (kW) | 5.5 | / |
| Second Layer Belt Conveyor | ||
| Width(mm) | B650 | / |
| Electric roller Power (kW) | 7.5 | / |
| Discharge Height (mm) | 3340 | / |
| Tail Belt Conveyor(Optional) | ||
| Width(mm) | B500 | B500 |
| Electric roller Power (kW) | 5.5 | 5.5 |
| Discharge Height (mm) | 3200 | 3200 |
| Collecting Belt | ||
| Width(mm) | B500 | / |
| Electric roller Power (kW) | 3 | / |
| Vibrating Screen | ||
| Model | 2YA1850 | / |
| Power (kW) | 15 | / |
| Track Drive Device | ||
| Power (kW) | 55kW | 55kW |
| Iron Separator(Optional) | ||
| Length×Width (mm) | 1900×B800 | 1900×B800 |
| Power (kW) | 3 | 3 |
| Overview | ||
| Generator Set Power (kW) | 400kW | 400kW |
| Crawler Chassis | DL425X | DL425X |
| Total Track Drive Power(kW) | 55kW | 55kW |
| Total Weight (t) | ≈55T-60t | 51t |
| Processing Capacity (t/h) | 150-250 | 150-250 |
| Total Operating Power (kW) | 330.5kW | 288.5kW |

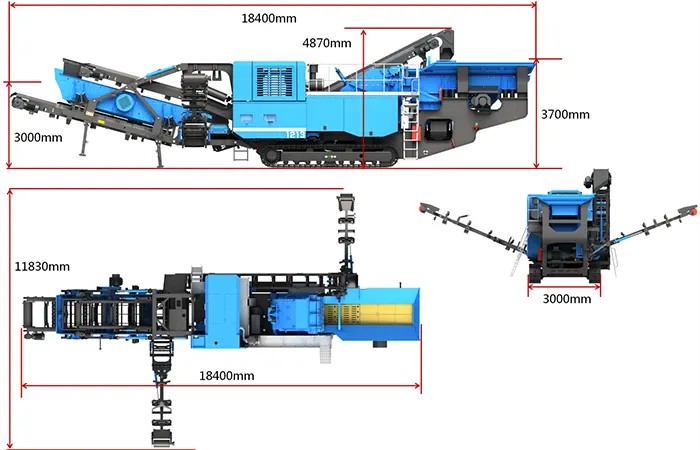

| Operating Dimensions (L*W*H/mm) | 18400×11830×4870 | 16000×3500×4125 |

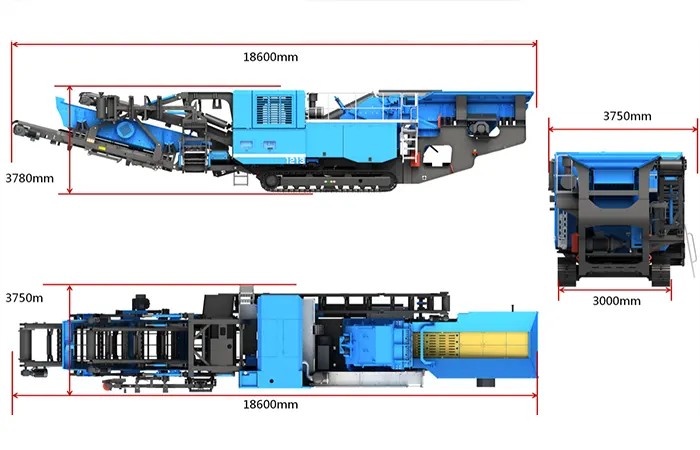

| Transport Dimensions (L*W*H/mm) | 18600×3750×3780 | 16000×3500×3780 |
Main Feature
1. Modular design, sturdy structure, higher fatigue resistance and stronger impact resistance.
2. The crusher case can be turned over for easier maintenance; Square handle bolts are employed to make the equipment more impact-resistant and wear-resistant.
3. Large feed opening, high crushing chamber, suitable for crushing high hardness and large block materials. Power consumption upon crushing suspended materials is much lower.
4. Well-designed hammerhead boasts a large impact force. Hammer shafts are adjustable, leading to a long service life of the hammerhead.
5. The grid size is adjustable, and the product particle size is accordingly controllable. Moreover, the product particles are output in good shape.
6. It comes with comprehensive crushing function, including impact, impact, collision (stones hitting each other), achieving high production efficiency, low wear of machine parts, and significant comprehensive benefits.
7. It adopts an intelligent wireless remote control device and walks on its own crawler. It can be operated by a single person remotely to get on and off the ordinary flatbed trailer to realize rapid relocation.

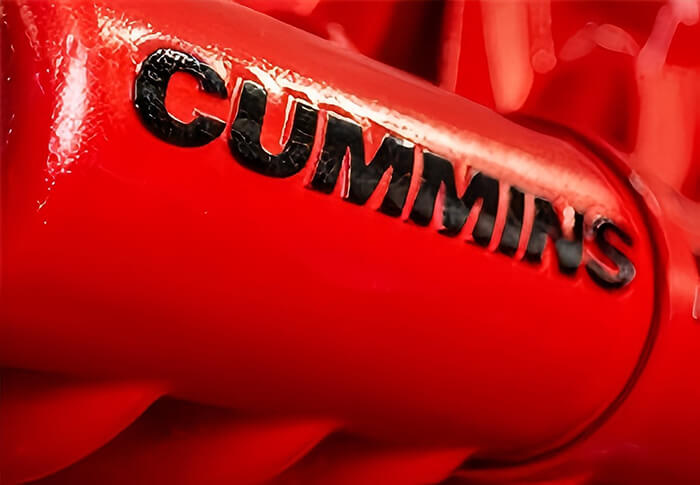

8. Word famous key devices are employed, Strickland track, Bonfiglioli /Brevini/Eaton drive motor, Cummins diesel engine, Schneider electrical elements, Eaton hydraulic plunger pump, Eaton hydraulic motor on belt conveyor and feeder, Omron remote controller, etc. Performance, service life and value of the crusher is guaranteed.
9. The pre-screening system can be chosen to mount and make screening function more comprehensive and excellent.
Main Components

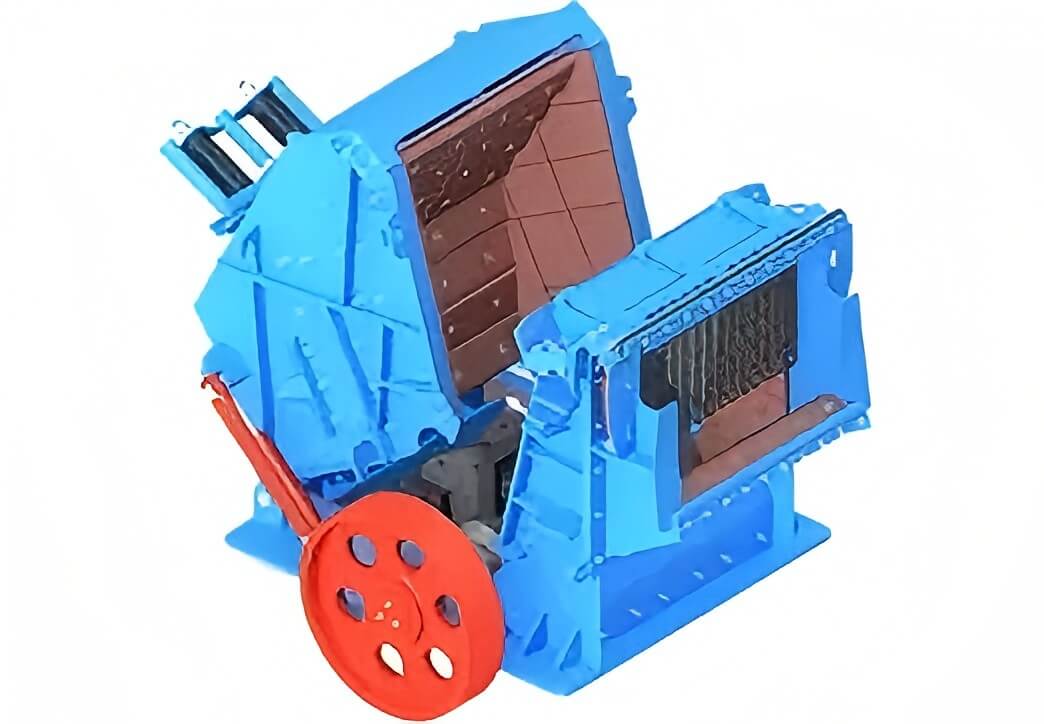

For recycling of solid waste, dynamically balanced rotor with strong overload capacity and pressure resistance, hydraulic opening for rotor maintenance
Stable performance, convenient maintenance, energy saving, durable and low noise.
Double-layered, dust-proof and waterproof, visual cabinet and inspection window.
Control crawler travel and auxiliary equipment operation. Owns higher operating safety.
Heavy-duty vibrating feeder with on-load start function, adjustable feeding speed and stronger feeding capacity.
Tear-resistant material, higher stacking capacity, dual motor drive ensure better synchronization and lower energy consumption.
Heavy-duty crawler tracks, hydraulic drive, huge load-bearing capacity, strong maneuverability and Grease tension adjustment.
High-pressure atomizing nozzles with adjustable water spray volume are used to reduce dust.
Pre-screen the mud-containing waste in the raw materials to effectively improve the quality of the finished materials, greater stacking and conveying capacity.
Effectively screen out fine materials and mud-containing waste,improve equipment throughput and reduce equipment wear.
self-unloading, strong magnetism and high efficiency, effectively removes ferromagnetic metals contained in crushed materials.
Supporting smaller screen size settings, owns powerful screening capabilities, and the screen box can produce 1-3 kinds of materials.

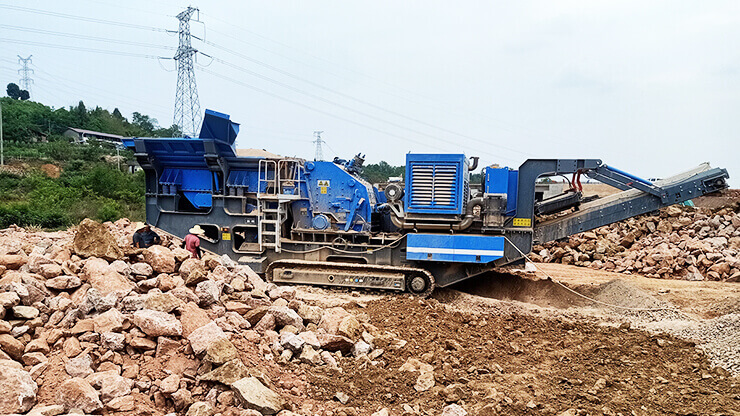

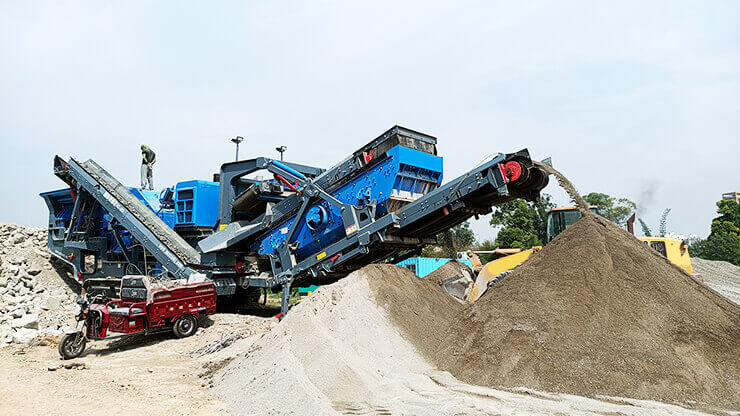

Construction Case
The combination of mobile crusher plants and mobile screening plants is becoming more and more popular, which not only can efficiently use the permitted time of mining, reduce transportation costs, but also can obtain ultra-high-quality finished materials. ACE has launched a number of classic product portfolios and is meanwhile committed to finding the most economical solutions for customers.
