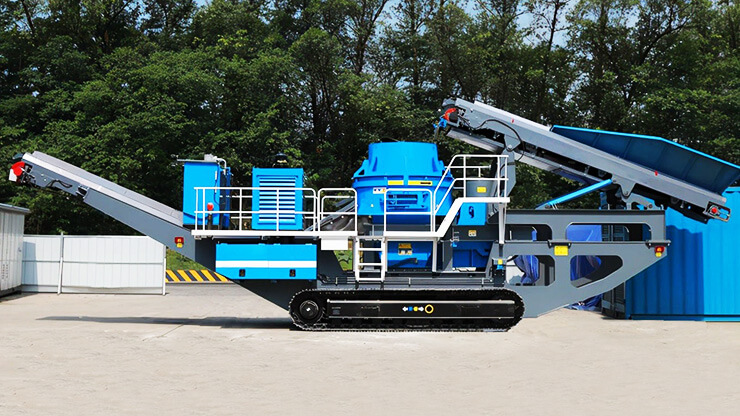

Mobile Crawler Cone Crusher
AMC300 mobile crawler cone crushing plant adopts a multi-cylinder hydraulic cone crusher. It has higher rotation speed and stroke, which greatly improves the rated power and throughput; Owns large crushing ratio and high production efficiency. The output is 35%-60% higher than that of the old spring cone crusher. It is the preferred equipment for secondary crushing of various high-hardness and highly abrasive rock minerals.
- Model: AMC300
- Processing Capacity: 100t/h ~ 300t/h
- Highlights: Crawler type, highly mobile, Diesel-electric drive, large crushing ratio and strong processing capacity.
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
AMC mobile crawler cone crushers adopts the world's most advanced crushing technology, which perfectly combines the crushing stroke, crushing speed and crushing cavity shape. AMC300 crawler mobile cone crushing plant is the preferred equipment for secondary crushing of various high-hardness and highly abrasive rock minerals. It is also widely used in material crushing in mining, smelting, building materials, highway, railway, water conservancy and other industries.
Technical Parameters
| Model | AMC300 |
|---|---|
| Crusher | |
| Crusher | MH300 |
| Feeding Port | 1060 |
| Max. Feed Size(mm) | 240 |
| Crusher Weight(t) | 18 |
| Adjustment Range of the Discharge Port | 10-45 |
| Oil Station Power (kW) | 7.5*2 |
| Oil Fan (kW) | 2.2 |
| Crusher Power (kW) | 250kW-4 |
| Feeding Belt Conveyor | |
| Conveyor Belt Unfold Width(mm) | B1000 |
| Feed Height (mm) | 2900 |
| Power (kW) | 7.5 |
| Bucket Capacity (m3) | 3 |
| Main Belt Conveyor | |
| Width(mm) | B1000 |
| Power (kW) | 7.5*2 |
| Discharging Height (mm) | 3300 |
| Overview | |
| Generator Set Power (kW) | 400kW |
| Crawler Chassis | DL375 |
| Track Drive Power (kW) | 55kW |
| Total Weight (t) | 55 |
| Processing Capacity (t/h) | 100-300 |
| Total Operating Power (kW) | 289.7 |

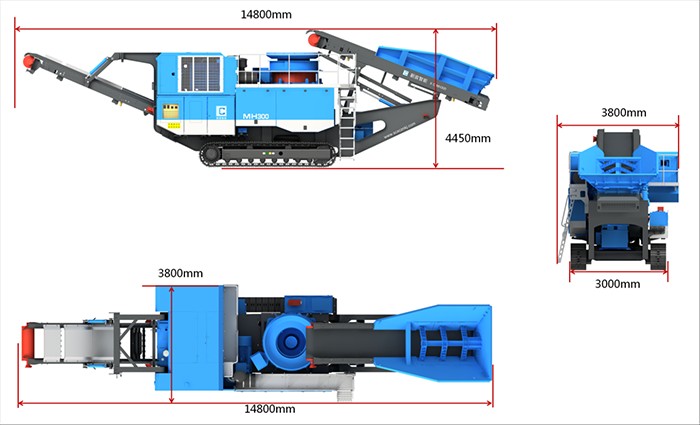

| Operating Dimensions (L*W*H/mm) | 14800×3800×4450 |

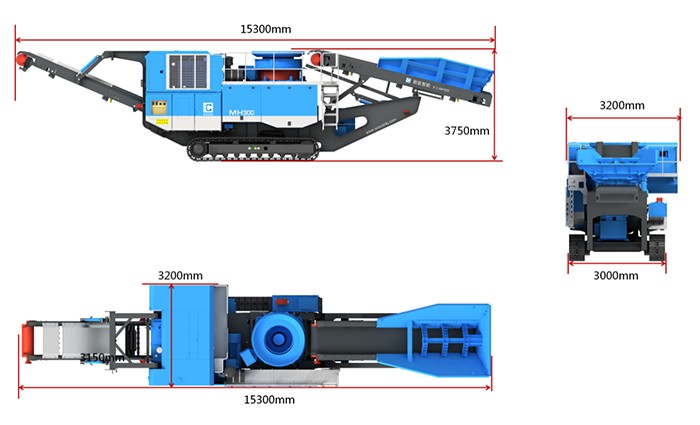

| Transport Dimensions (L*W*H/mm) | 15300×3200×3750 |
Main Feature
1. Compacted and integrated structure with Strickland track for movement, convenient for mobilization in working site.
2. The whole machine can climb onto a lowbed semitrailer all by itself for long distance transportation. It doesn’t require cranes, break up, re-assemble or foundations. Fast and easy relocation with extremely low costs.
3. The main machine is multi-cylinder hydraulic cone crusher, which is outsourced from the top manufacturer of China. Reliable quality, stable performance, longer service life.
4. Intelligent control, travel track controlled by a hand-hold controller. Operation can be conducted in a central control room. Whole production process is under automation control, labor-saving, efficient and safe.
5. The crawler mobile cone crusher can works together with other mobile crushing equipment of our company, such as crawler impact crusher, crawler jaw crusher and crawler vibrating screen, to carry out types of crushing production.
6. World famous key devices are employed, Schneider electrical elements, Cummins diesel engine, Eaton hydraulic plunger pump, Strickland track, Bonfiglioli /Brevini hydraulic motor. Performance, service life and value of the crusher is guaranteed.
Main Components
Wear-resistant blocks, Lowest maintenance costs, excellent particle shape, high output
Stable performance, convenient maintenance, energy saving, durable and low noise.
Double-layered, dust-proof and waterproof, visual cabinet and inspection window.
Control crawler travel and auxiliary equipment operation. Owns higher operating safety.
Tear-resistant belt ensures smooth aggregate transport and longer life, 3m³ hopper ensure powerful feeding capacity.
Tear-resistant material, higher stacking capacity, dual motor drive ensure better synchronization and lower energy consumption.
Heavy-duty crawler tracks, hydraulic drive, huge load-bearing capacity, strong maneuverability.
High-pressure atomizing nozzles with adjustable water spray volume are used to reduce dust.

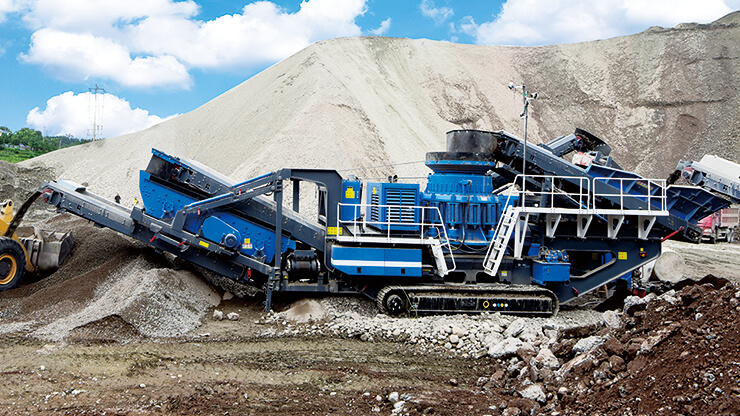

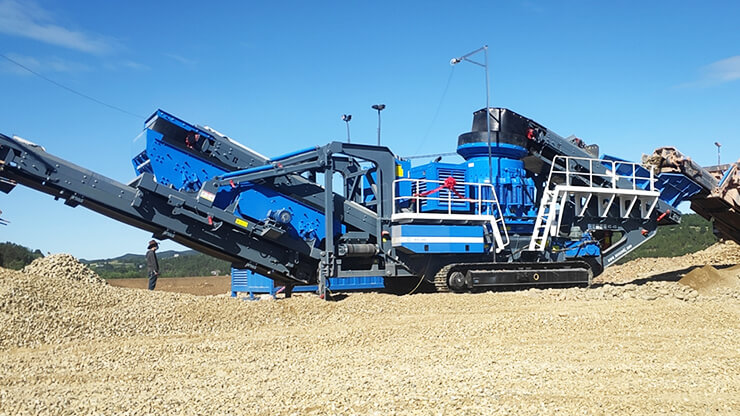

Construction Case
The combination of mobile crusher plants and mobile screening plants is becoming more and more popular, which not only can efficiently use the permitted time of mining, reduce transportation costs, but also can obtain ultra-high-quality finished materials. ACE has launched a number of classic product portfolios and is meanwhile committed to finding the most economical solutions for customers.
