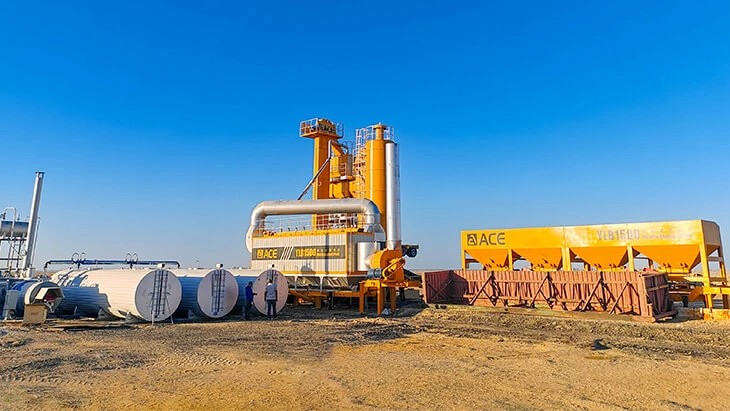

Mobile Asphalt Plant MAP Series
Mobile asphalt plants, also called portable asphalt plant, mobile asphalt mixing plants, portable asphalt mixing plants, featured by mobility and fast relocation. Mobile asphalt plants reduce the costs and time for plants relocation. MAP Series is mobile asphalt plant,batch mix, with chassis under main modules. Dismantling and re-installation of the whole plant takes less than 7 days (not including transportation).
- Model: MAP60 ~ MAP160
- Capacity: 60t/h ~ 160t/h
- Highlights: Mobile plant,easy for transportation and installation, fast relocation; Modular structure,batch mixing, precise batching, accurate weighing.
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
The MAP Series mobile asphalt mixing plant, developed by ACE Group, builds upon the proven strengths of the BAP series batch mixing plant. It incorporates key innovations such as a container-compatible size, a modular design, and a trailer-mounted mobile chassis. These features enable cost-efficient containerized shipping, rapid mobilization, and straightforward relocation from site to site.
This plant is ideally suited for small to medium-sized paving projects that require frequent moves. The entire setup can be disassembled and reinstalled at a new location within approximately five days, not including transit time, ensuring minimal project downtime
Technical Parameters
MAP mobile asphalt plant can be mobilized and relocated in a very short time. Its output is 60 ~ 160tph, fit for construction of road that is not wide, but considerable long and needs frequent relocation.
| Model | MAP60 | MAP80 | MAP120 | MAP160 | |
| Capacity | 60 t/h | 80 t/h | 120 t/h | 160 t/h | |
| Mixer Capacity | 700 kg/batch | 1000 kg/batch | 1500 kg/batch | 2000 kg/batch | |
| Fuel Consumption | Diesel consumption: 5.5-7 kg/ton | ||||
| Weighing Precision | Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2% | ||||
| Hot Asphalt Temperature | 130℃-165℃ (adjustable) | ||||
| Air Emissions | ≤ 20 mg/μm³ | ||||
| Working Noise | ≤ 70 db(A) | ||||
| Operation | Full Auto/Manual Operation | ||||
| Installation Power | 157 kW | 241 kW | 330 kW | 412 kW | |
| Voltage | 220V/380V-50Hz (adjustable) | ||||
| Plant Covering Area | Length | 35m | 40m | 40m | 42m |
| Width | 26m | 28m | 32m | 32m | |
| Height | 15m | 15m | 16m | 16m | |
| Documents | Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate. | ||||
Main Features
1. Fast Relocation
Modular design; main modules are equipped with trailers and chassis; fast and convenient for relocation
2. Batch Mix
Precise screening, accurate measurement, batch mixing; producing good quality finished asphalt
3. Minimal Foundation Work
Compact design, less land occupation. Can be installed on narrow areas, minimal foundation work required.
4. Optimized Drying Drum
Optimized drying drum and mixer, better performance; key parts made of anti-wear and sturdy material, longer service life.
5. User-Friendly
PLC system, intelligent control; easy for operation. Auto, Manual and Semi-auto operation modes available. Multilingual control software.
6. Suitable for Long Road Construction
It is suitable for pavement of a quite long road, and quite popular in a remote area with lower density both population and road.
Main Components

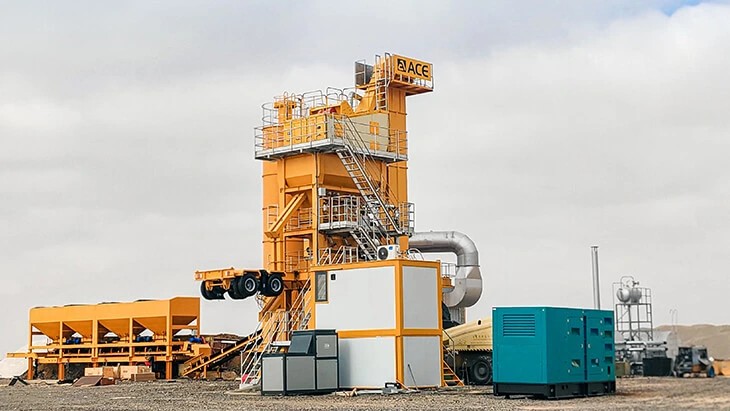

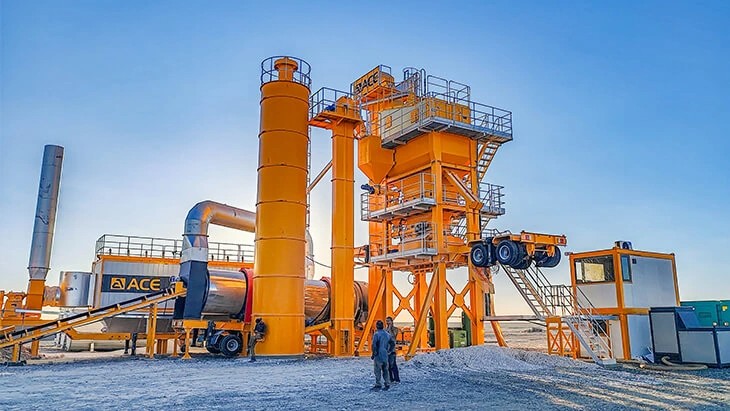

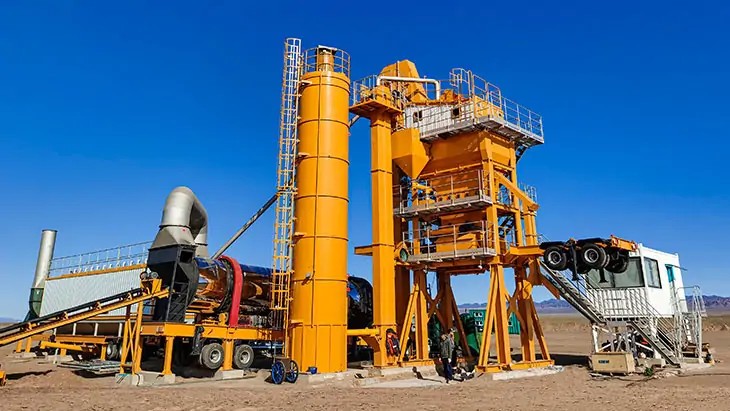

Mixing tower and control room are on one mobile module, can be pulled by a tractor.
Cold aggregate feeding system is on one mobile module, can be pulled by a tractor.
Bag house dust collector is one mobile module, can be pulled by a tractor
Drying drum is one mobile module, can be pulled by a tractor.
Bitumen tank can be mounted on one chassis and moved by a tractor.
Extra mobile chassis are available upon request so as to move the other small devices.
MAP mobile asphalt plant can be loaded into containers for marine shipment
Integrated chassis makes shipment and installation much more convenient.
