Our Product Lineup of Mining Excavators

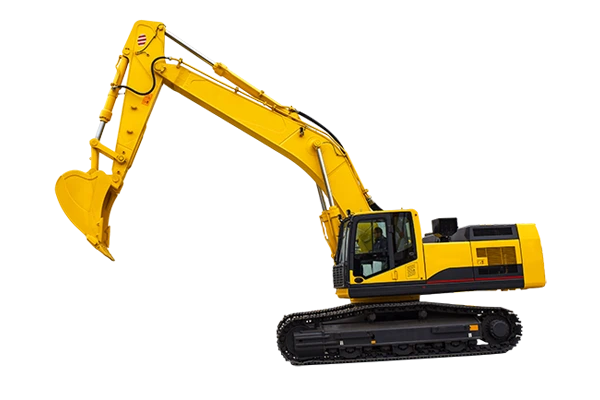

- ACE500
- Bucket Capacity: 3m3

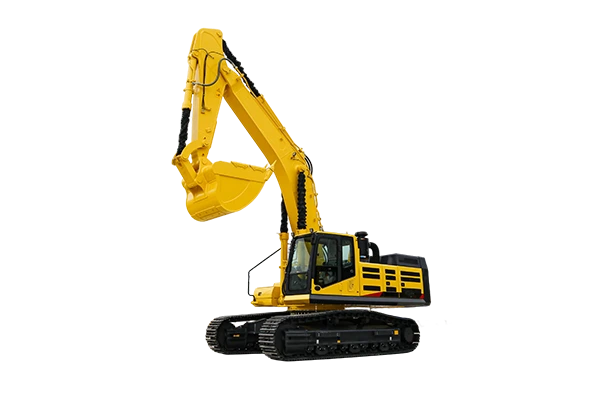

- ACE550
- Bucket Capacity: 3m3

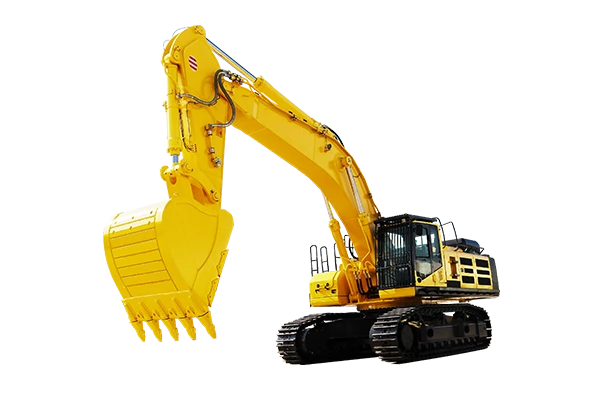

- ACE700
- Bucket Capacity: 4m3

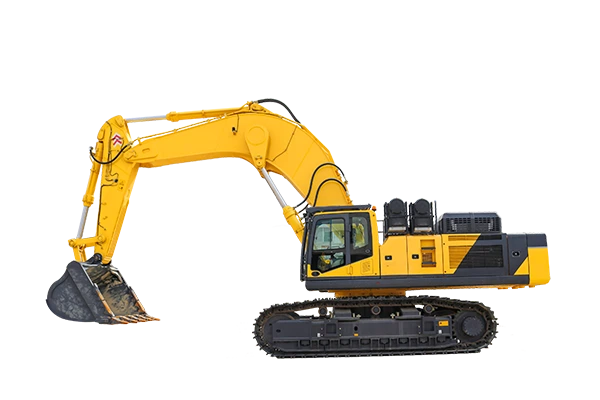

- ACE800
- Bucket Capacity: 4-5m3

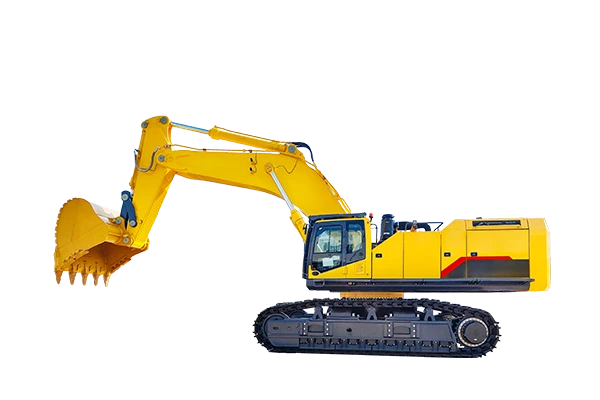

- ACE1100
- Bucket Capacity: 6m3

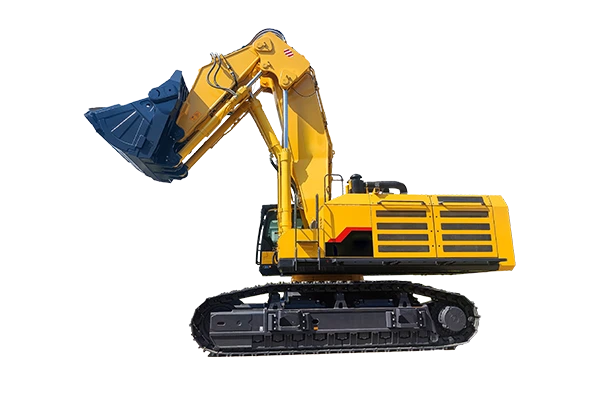

- ACE1400
- Bucket Capacity: 7.6m3
Choose The Right Model For YouADAPT TO ANY TERRAIN, EXCEL IN ANY TASK
ACE mining excavators are built to conquer the toughest mining terrains. Engineered for peak performance, adaptability, and efficiency, they’ve exceeded customer expectations with their unmatched reliability, durability, and cost-effectiveness..
Quality Matters The Most, So Does The Performance

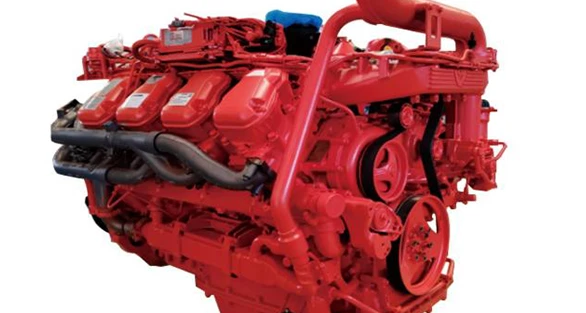

Reassuring Engines With Strong Adaptability
World-class
Brands
Brands
Powered by Scania, Isuzu, or Cummins engines, which always deliver exceptional torque, coupled with impressive fuel economy and efficiency.
Minimal Vibration
and Noise
and Noise
High-performance shock absorber, cover partition to seal the power compartment and enlarged radiator help to minimize vibration and noise
Fearless of Rigorous
Environments
Environments
Advanced high-power starting motor and large-capacity low-temperature battery technology enable excavators to start reliably in harsh plateau conditions

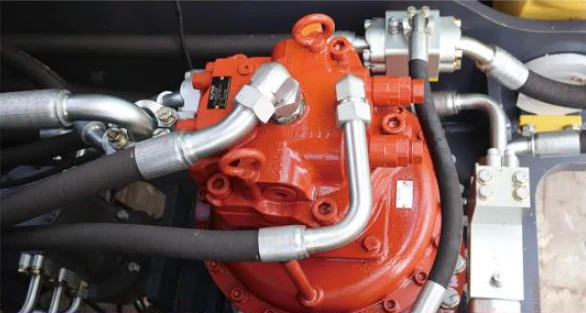

Top-notch Hydraulic Systems With Strong Stability
Stunning Comprehensive
Performance
Performance
Kawasaki or Nakagawa hydraulic systems, with large displacement dual pumps, faster response times, smoother movements, increased digging force.
Low Fuel
Consumption
Consumption
The implementation of large-diameter hydraulic main valves significantly reduces pressure loss, leading to higher efficiency and lower fuel costs.
Reliable in Demanding
Conditions
Conditions
Independent water and oil cooling systems, with intelligent fan speed regulation base on real-time temperature, suitable for extreme scenarios.

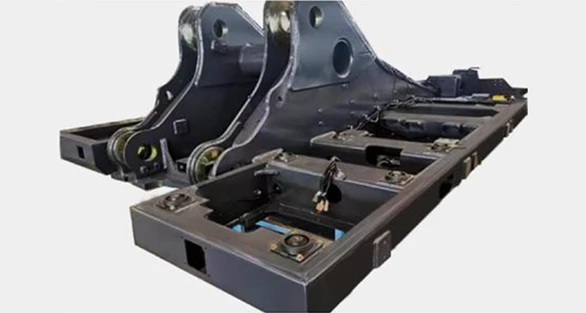

Heavy-duty Reinforced Design of Structures
50% Greater
Load-bearing Capacity
Load-bearing Capacity
The structural parts of our excavators are engineered to handle 50% more weight than comparable models from other brands.
Highly Versatile With A
Range of Attachments
Range of Attachments
In addition to durable, double-layered buckets, various attachments like rippers，breakers can be fitted to adapt to diverse operating conditions.
Effortlessly Accommodate
Special Requests
Special Requests
It can be equipped with working devices such as front shovel and rock arm to adapt to working scenes with special needs

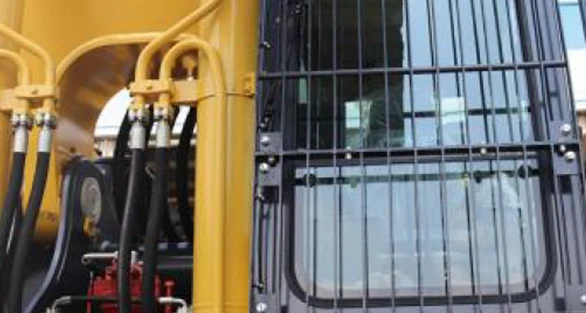

Control Experience- More Intelligent, More Comfortable
Built Tough,
Safety-Focused
Safety-Focused
The cab is equipped with certified Falling Object Guard (FOG) and Falling Object Protective Package (FOPS) to ensure operator safety in challenging work environments.
Peace of Mind
Maximum Uptime
Maximum Uptime
With itsone-button start and advanced intelligent features like fault alarm, intelligent diagnosis, and GPS monitoring.
Quiet, Clean
and Well-Lit
and Well-Lit
70% improvement in sealing performance; A 10-inch touchscreen and a 360-degree camera system provide comprehensive visibility. Dual LED lights on each boom deliver superior nighttime illumination.
Excavation Solutions For The Mining Industry
Technical Parameters of ACE Series Mining Excavators
| Items | ACE400 | ACE500 | ACE550 | ACE700 | ACE800 | ACE1100 | ACE1400 |
| Working mass(t) | 40.4 | 49 | 51 | 68.5 | 77.2 | 108 | 125 |
| Bucket capacity(m³) | 1.9-2.1 | 3 | 3.0 | 4 | 4-5 | 6 | 7.6 |
| Engine model | Cummins QSM11 | ISUZU 6WG1 | Cummins QSM11 | Cummins QSM15 | Cummins QSX15 | Scania DC16 | Cummins QSK23 |
| Power(kw/r/min) | 216/2100 | 300/1800 | 333/1800 | 563/2100 | 336/1800 | 574/2000 | 567/1800 |
| Volume of fuel tank(L) | 650 | 650 | 700 | 950 | 950 | 1300 | 1600 |
| High/Low travel speed(km/h) | 6.2/4 | 4.8/3.0 | 5.1/2.9 | 5/3.2 | 4.8/3.0 | 3.53/2.39 | 3.2/2.2 |
| Swing speed(r/min) | 8.2 | 8.6 | 8.1 | 7 | 7.2 | 6.5 | 7.6 |
| Gradeability(°) | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Digging force of bucket(KN) | 245 | 286 | 272.2(296) | 348 | 300/328 | 712 | 619 |
| Working pressure(KN) | 34.3 | 34.3 | 34.3/37.3 | 34.3/37 | 31.4(34.3) | 34.3/37 | 34.3/37 |
| Hydraulic fluid tank volume(L) | 310 | 335 | 450 | 660 | 335 | 1090 | 1070 |
| Overall length(mm) | 10078 | 11745 | 11844 | 12750 | 13104 | 11220 | 14882 |
| Overall width(mm) | 3190 | 3490 | 3490 | 3762 | 4256 | 4451 | 5665 |
| Overall height(top of boom)(mm) | 3150 | 3790 | 3942 | 4595 | 5269 | 6170 | 6350 |
The Value We Will Provide You With
Personalization of the mining excavators
Our team is here to support you with initial advice and customization guidance throughout the sales, training and service phases.
Supply of spare parts
We offer a variety of replacement excavator spares to minimize downtime for your excavators.
Operation and maintenance training
We will provide an on-site or online introduction to the excavators, operator training and maintenance manual to meet your requirements.
24-Hour Emergency Response
Our emergency response team is available 24/7 to offer on-site or online support as required.
Get Product Catalogs For Our Excavators
Have questions about our excavators? Reach out to us, and we'll provide expert answers and tailored product recommendations.
