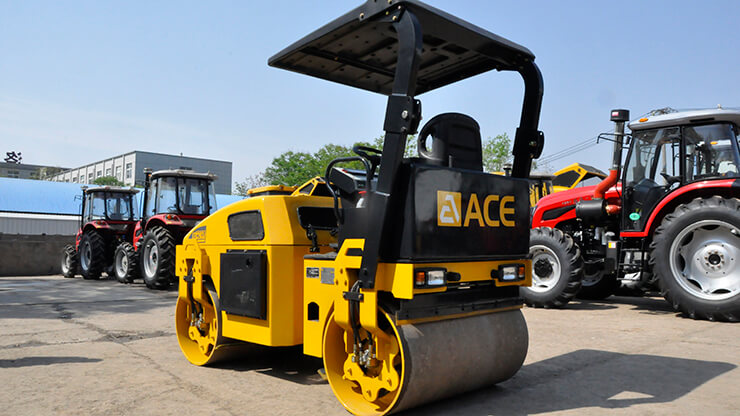

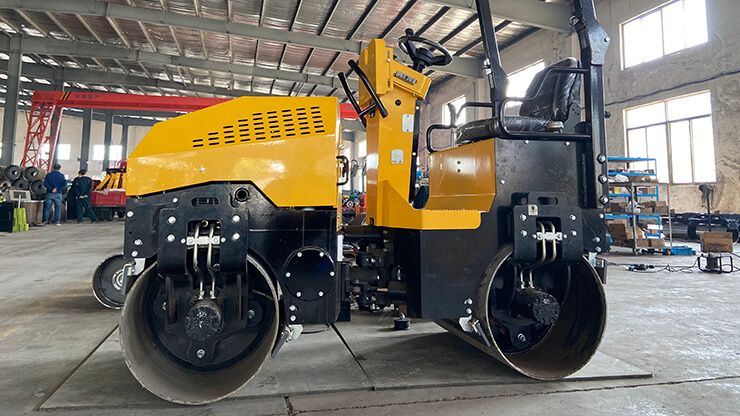

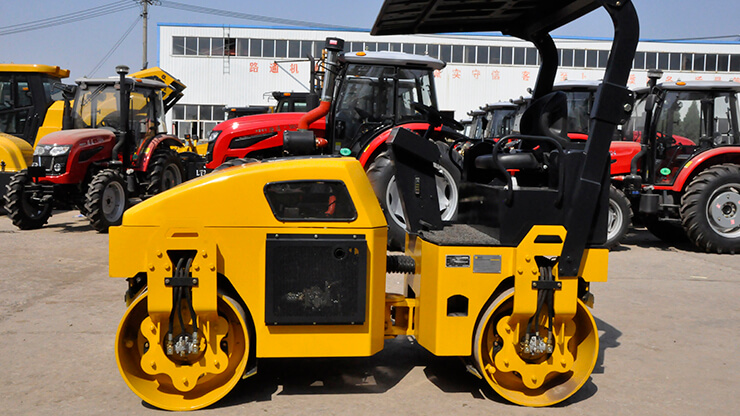

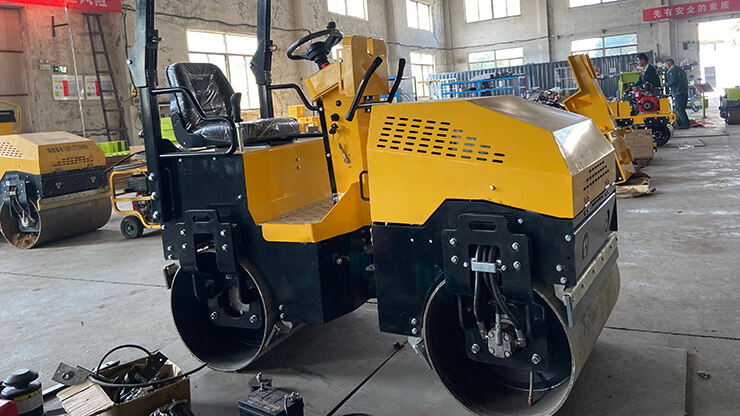

Mini Road Roller
ATX series mini road roller is hydraulic walking vibratory road roller, mainly used for municipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m, building construction, back-filling for pipeline and gymnasium ground.
- Model: ATX100 ~ ATX600
- Operating Weight: 900kg ~ 6,000kg
- Highlights: Huge power output, adjustable amplitude, streamline outline
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
ATX series mini road rollers are well designed to construct and maintain various roads, especially narrower road surface, and they are indispensable machines when it comes to repairing roads damaged by excavation for pipeline installment.
Technical Parameters
| Product Model | ATX100 | ATX120 | ATX150 | ATX200 | ATX300 | ATX400 | ATX600 | |
|---|---|---|---|---|---|---|---|---|
| Operating Weight(kg) | 900 | 1,125 | 1,485 | 1,985 | 3,400 | 4,000 | 6,000 | |
| Static Linear Load(N/cm) | 56/77 | 69.5/68 | 82 | 110/105 | 136/136 | 150/150 | 232.4 | |
| Vibration Amplitude(mm) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.62 | |
| Vibration Frequency(Hz) | 70 | 65 | 65 | 65 | 50 | 50 | 46 | |
| Travel Speed(km/h) | 0-5 | 0-5 | 0-6 | 0-8 | 0-12 | 0-12 | 0-12 | |
| Gradeability(%) | 30 | 30 | 35 | 35 | 30 | 25 | 20 | |
| Turning Radius(mm) | 2,600 | 2,800 | 2,800 | 2,955 | / | / | / | |
| Drum Width(mm) | 700 | 800 | 900 | 900 | 1,250 | 1,300 | 1,320 | |
| Wheelbase(mm) | 1,230 | 1,356 | 1,515 | 1,565 | 2,010 | 2,010 | / | |
| Engine Brand | CHANGCHAI | CHANGCHAI | YANMAR | YANMAR | CHANGCHAI | CHANGCHAI | XINCHAI | |
| Engine Power(kw) | 6 | 8.1 | 14.7 | 18.6 | 26.5 | 26.5 | 36.8 | |
| Dimension(L×W×H)(mm) | 1780×825×1450 | 1940×930×1540 | 2150×1050×1790 | 2255×1050×1770 | 2760×1400×2520 | 2760×1400×2580 | 3690×1600×2700 | |
