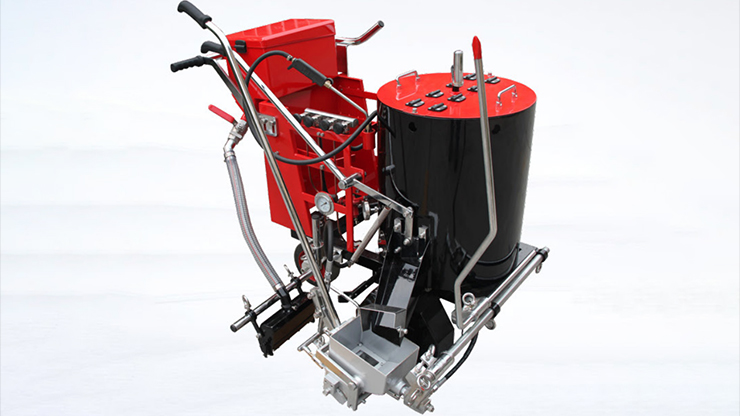

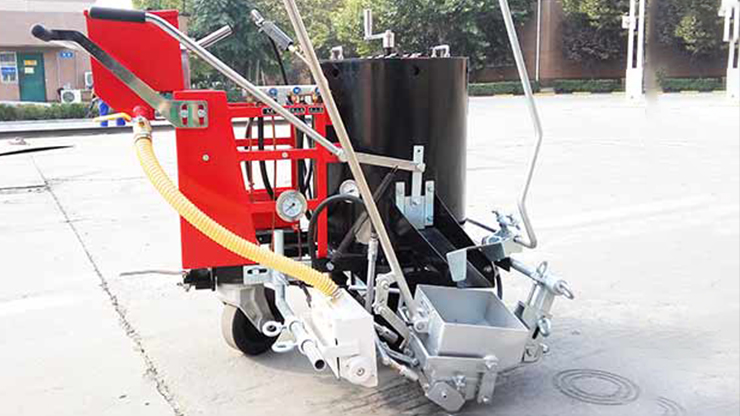

Hand-push Thermoplastic Screeding Road Marking Machine
Hand-push thermoplastic screeding road marking machine is a kind of hand push type thermoplastic screeding road marking machine, it is the perfect equipment for small road marking project.
- Model: AC-HPT
- Paint Tank Capacity: 100L
- Highlights: Easy operation, stable performance
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Principle
Hand-push thermoplastic screeding road marking machine is hand push type thermoplastic screeding road marking machine, the screeding marking shoe makes the marking perfectly straight and beautiful. The automatic quantitative dispenser which is synchronous with the paint screeding system makes the glass beads dispensing much evener and more economic. The back wheel directional device makes sure the straight walking or curve turning freely. It is the perfect equipment for small road marking project.
Technical Parameters
ACE provides hand push thermoplastic screeding road marking machine adopts world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
| Product model | AC-HPT |
|---|---|
| Heating Mode | LPG, infrared or direct-fired burner |
| Paint tank capacity | 100 L |
| Glass beads bin | 12 L |
| Marking equipment | Manual screeding marking shoe, standard configuration 150 mm |
| Marking width | 50mm, 100 mm, 150mm, 200 mm, 250 mm, 300 mm (optional, standard equipped with 150mm) |
| Marking thickness | 1.8 mm - 3.0 mm (adjustable) |
| Dimensions (L*W*H) | 1210 mm * 890 mm * 1350 mm |
| Weight | 210 kg |
| Optional system | Seat trailer |
