Hand-push Cold Paint Airless Road Marking Machine
Hand-push cold paint airless road marking machine mainly used for small-scale road line marking work such as zebra marking, lines in parking lots and athletic fields, special characters and arrow indications.
- Model: AC-HAL-I; AC-HAL-II
- Marking Width: 50 ~ 500 mm (adjustable)
- Highlights: Easy operation, stable performance
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Principle

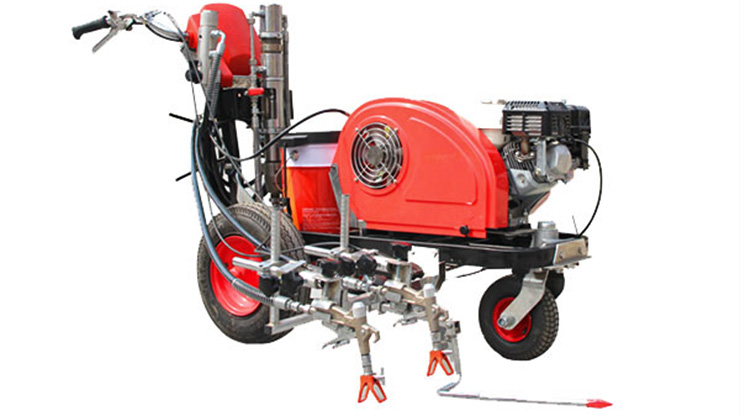

Hand-push cold paint airless road marking machine is a kind of road marking machine use cold paint, equipped with alloy chassis, high-speed bearing and inflatable tyre, compact in structure which ensures flexible and convenient operation. New high-pressure airless diaphragm pump with big flow and stable pressure ensures efficient and high-quality road line marking work. Mainly used for small-scale road line marking work such as zebra marking, lines in parking lots and athletic fields, special characters and arrow indications.
Technical Parameters
ACE provides hand push cold paint airless road marking machine adopts world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
| Product Model | AC-HAL-I | AC-HAL-II |
|---|---|---|
| Engine | Robin 6.0HP Gasoline engine | ROBIN 6.0HP gasoline engine |
| Marking Method | High pressure airless spraying type | High pressure airless spraying type |
| Paint pump | Auto-shuttle plunger pump; flow rate: 9.0L/min | ------ |
| Applied paint | Cold-solvent paint and water-based paint | Suitable for solvent-based paint, water-based paint and two-component cold plastic 1:1 |
| Marking width | 50-450mm (adjustable) | 50-500mm (adjustable) |
| Spray Gun | Double manual spray guns | Double fixed manual spray guns |
| Air Compressor | ------ | 0.16m³/min (Spraying) |
| Delivery Rate | ------ | 9L/min (single) |
| Max. Rated Working Pressure | ------ | 20Mpa |
| Pump and Control Method | ------ | Auto-shuttle plunger pump |
| Hardner Container | ------ | 5L (pressurized for 98:2 2-component cold plastic) |
| Dimension(L*W*H) | 1750 * 1000 * 1250 mm | 1750 * 1000 * 1250 mm |
| Weight | 160 KG | 240 KG |
| Optional system | Roll booster, warning light and lighting lamp | Roll booster, warning light and lighting lamp |
Main Feature
Robin petrol engine.
High-efficiency cooling fan and radiator keep the hydraulic system in good cooling effect during operation, which can significantly extend the service life of the system.

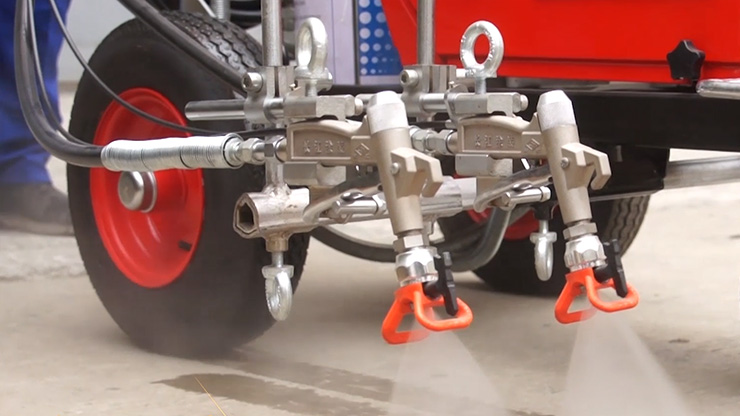

Two high-pressure airless spray guns, large-capacity pressure-type glass bead tank, equipped with an efficient drying system to effectively avoid glass beads blocking the gun.
All marking control and operation can be completed through the control box. The core system adopts programmable microcomputer module for precise control.
