1. Overview of micro surfacing treatment on pavement rutting

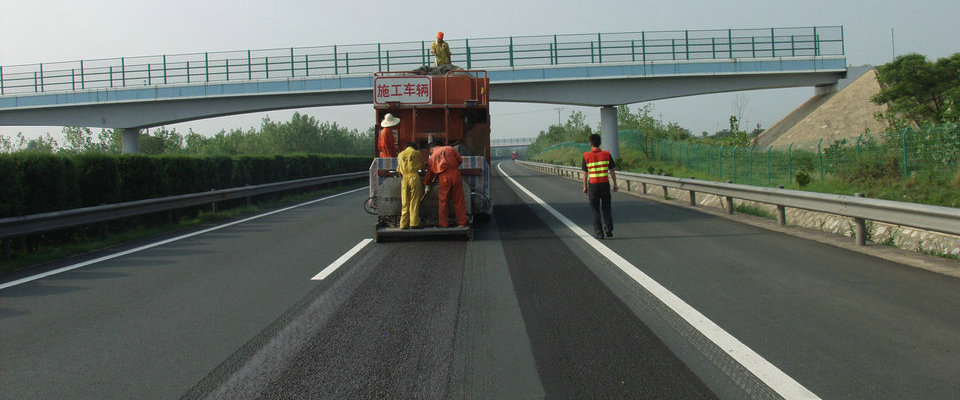

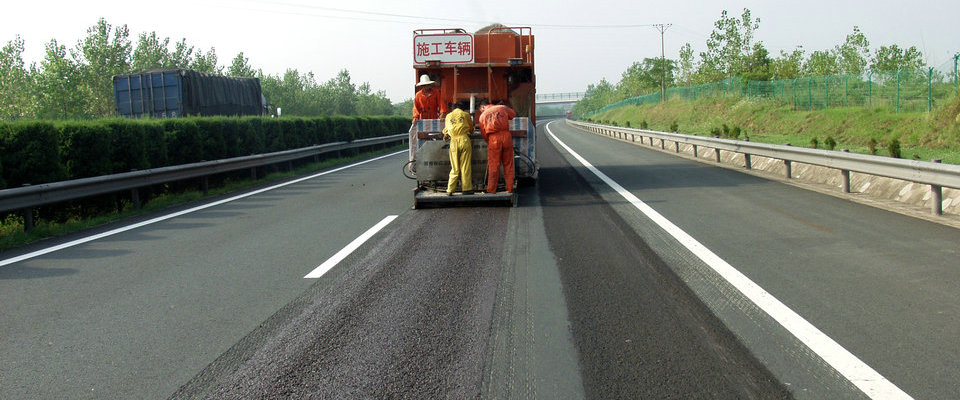

Mirco Surfacing is an effective method to cure rutting on soft pavement. A special equipment, Slurry Paver, is used to mix polymer modified bitumen, aggregate, filler, water and additives at a certain recipe, forming slurry mixture. The the slurry mixture was paved on rutting track by a V-shaped paving device at the rear of slurry paver truck.
Slurry paver adopts variable depth paving technique to seal and pave the rutting tracks that always have different depths. Generally, the section of rutted track is concave, thus the transverse pavement thickness shall be dynamic.

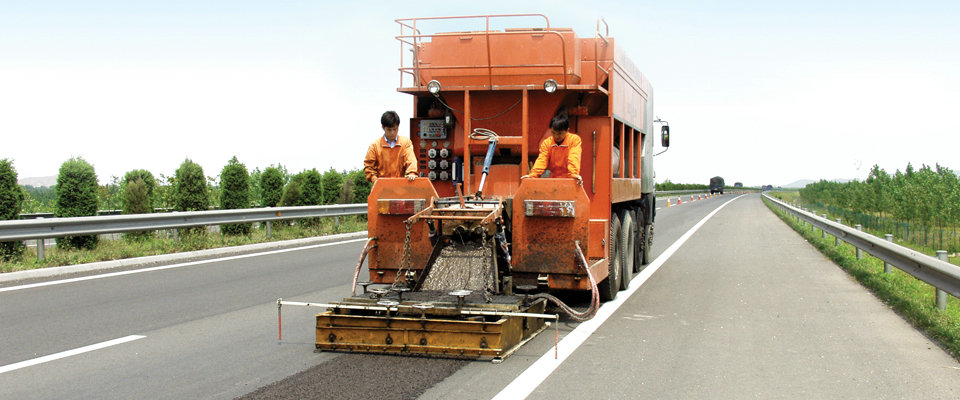

ACE's specially-designed slurry paver truck, with v-shaped paving device at rear, perfect seal and fill the concave rutting. Meanwhile, aggregate distribution is also optimized so as to enhance the stability of the newly-paved roads.
2. Application
This process is suitable to fix the rutting with a maximum depth of 40mm on overloaded, worn and instable soft pavement.
3. Advantages
- Compared with common rutting seal, micro surfacing rutting treatment enjoys advantages including, fast traffic recovery, no need of milling, less material consumption and low cost.
- V-shaped paving device can achieve different thicknesses of cross-sections. Aggregates with different particle sizes can be properly distributed with thickness changes. At the same time, micro-surface repair rut materials It is a new organic hydraulic road material composed of organic material asphalt and hydraulic material cement, which ensures the high temperature stability of rutting.
- Micro surfacing uses polymer modified bitumen as binder which enhance the adhesion of aggregate and pavement wear-resistance.
- The process can be carried out at ambient temperature, saving energy, free of toxic air emission, minimal pollution.
4. ACE's Integrated Solutions
ACE Group provide integrate solution of micro surfacing rutting treatment, ranging from slurry paver, technical consultation, on-site training and operation guide.
