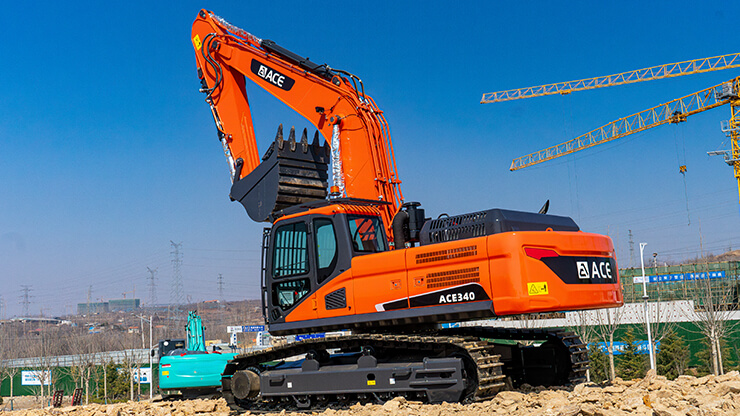

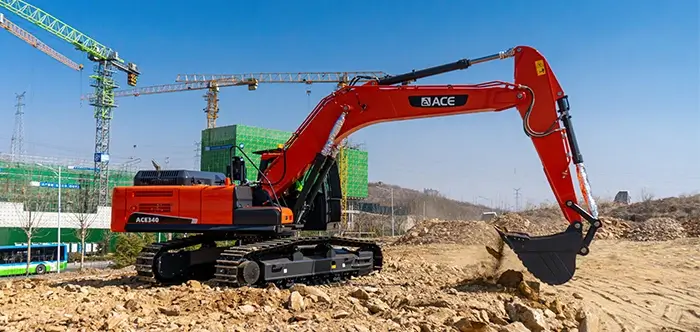

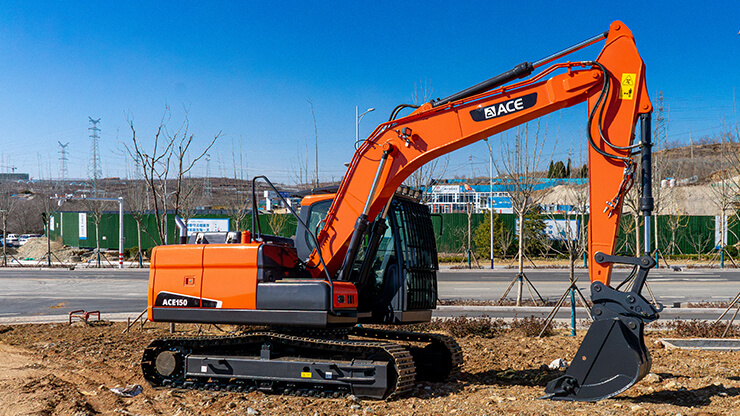

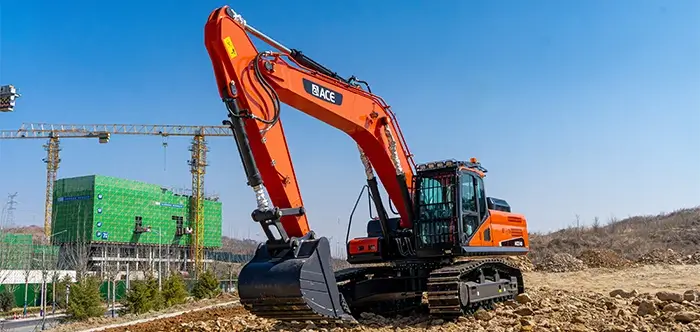

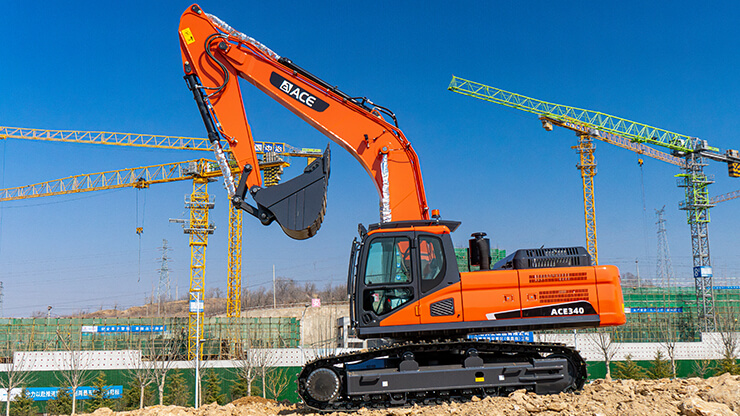

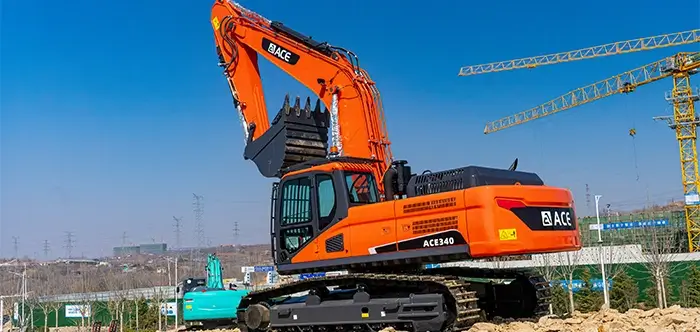

Excavator
ACE series excavators include small compact excavators, medium excavators and large excavators. It can meet the needs of various working conditions such as construction, agriculture, forestry, mining, etc. The usage scenarios include but are not limited to excavation, loading, trenching, pipe placement, etc. It has reliable performance, strong and durable. The ACE series excavators have been exported to South America, the Middle East and other markets.
- Model: ACE65 ~ ACE520
- Digging Force: 37.7KN ~ 267KN
- Highlights: All-purpose, smoothness, fuel efficiency, versatile, world famous brand components employed
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response

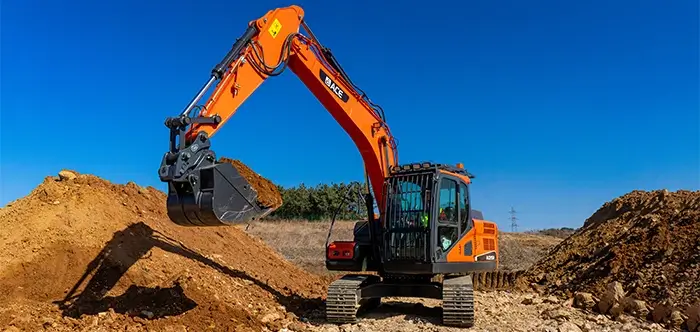

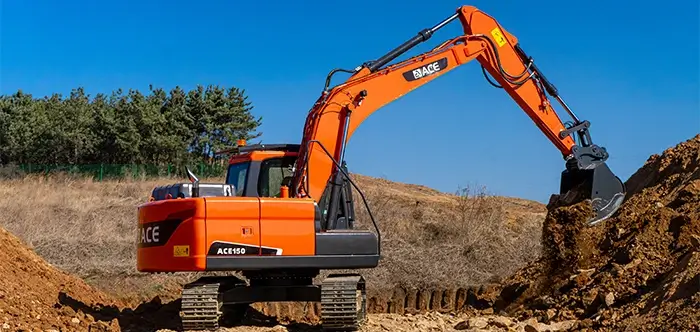

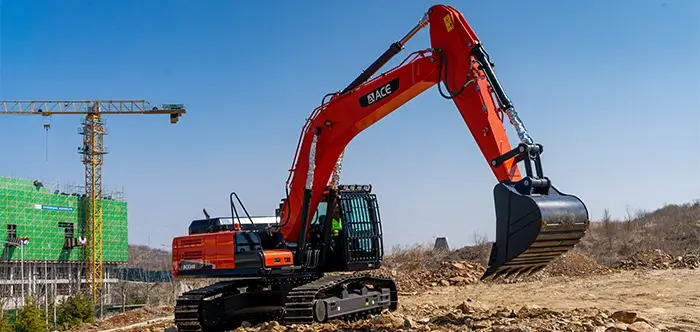

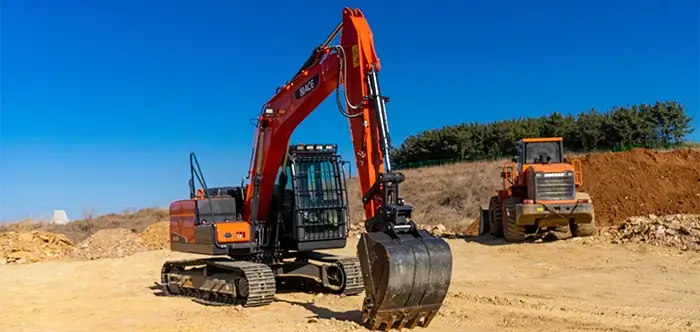

Scope of Use
ACE Group is ready to supply excavators suitable for different working conditions, ranging from mini compact excavator to large excavator. Whether you use them for excavation, loading, trenching, or placing pipe, our time-proven and reliable excavators have you covered.

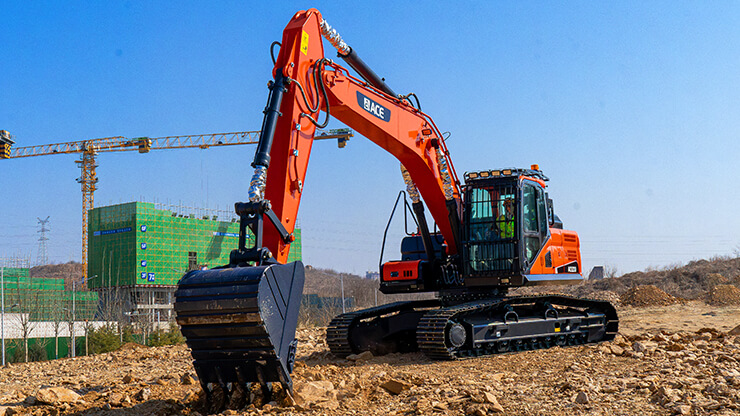

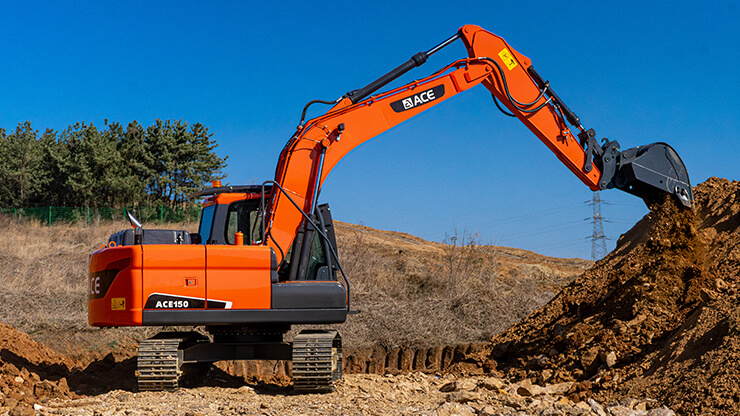

Technical Parameters
| Product Model | ACE65 | ACE150 | ACE230 | ACE300 | ACE340 | ACE370 | ACE400 | ACE520 | |
|---|---|---|---|---|---|---|---|---|---|
| Performance Parameters | |||||||||
| Weight (t) | 5.95 | 14.8 | 21.3 | 29.5 | 31.6 | 35.7 | 37.8 | 48.9 | |
| Bucket Capacity (m3) | 0.21 | 0.58 | 1.2 | 1.4 | 1.5 | 1.8 | 1.9 | 2.4 | |
| Swing Speed (min-1) | 9.5 | 10.1 | 10.7 | 10.1 | 10.1 | 9.4 | 8.2 | 10.3 | |
| Travel Speed (km/h) | 4.1/3.0 | 5.04/3.01 | 5.9/3.2 | 5.8/3.4 | 5.8/3.4 | 5.7/3.2 | 4.9/2.9 | 5.3/3.1 | |
| Ground Specific Pressure (kpa) | 32 | 35-36 | 43.2 | 49 | 49 | 57 | 69 | 90 | |
| Gradeability (%) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | |
| Digging Force (KN) | 37.7 | 77.4/81.3 | 146.4 | Standard 188/pressurization 199.9 | 240 | 267 | |||
| Undercarriage Configuration | |||||||||
| Engine Brand | YANMAR | CUMMINS | |||||||
| Engine Power (HP) | 49.3 | 117 | 187 | 226 | 255 | 285 | 340 | 376 | |
| No. of Carrier Rollers | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 6 | |
| No. of Bottom Rollers | 10 | 14 | 18 | 18 | 18 | 18 | 16 | 18 | |
| Length of Track Shoe (mm) | 2540 | 3750 | 4440 | 4940 | 4950 | 5215 | 4975 | 5465 | |
| Fuel Tank Capacity (L) | 118 | 273 | 356 | 452 | 452 | 452 | 624 | 606 | |
| Hyarulic Oil Tank Capacity (L) | 102 | 152 | 205 | 322 | 322 | 322 | 415 | 443 | |

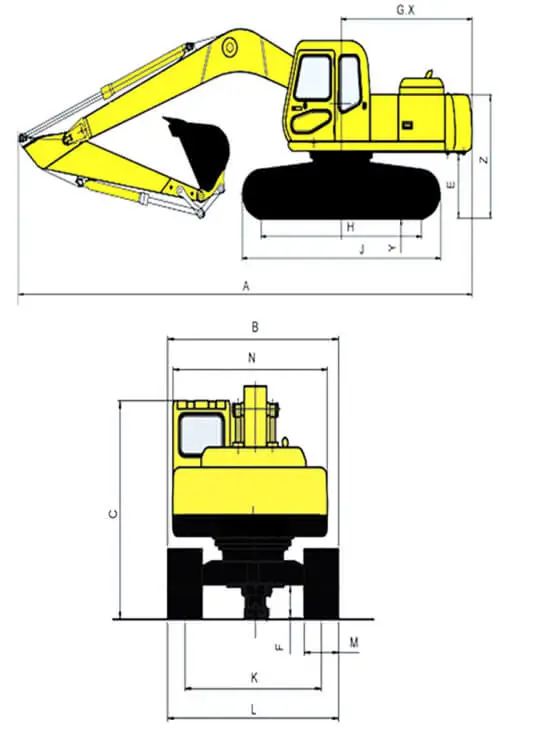

| Dimensions | |||||||||
| A | Total Length (mm) | 5855 | 7662 | 9600 | 10055 | 10615 | 10615 | 11380 | 12230 |
| B | Total Width (mm) | 1880 | 2530 | 2990 | 3200 | 3200 | 3199 | 3350 | 3900 |
| C | Total Height (To Boom Top) (mm) | 2580 | 2980 | 3005 | 3697 | 3697 | 3697 | 3720 | 3705 |
| D | Total Height (To Cab Top) (mm) | 2580 | 2742 | 3000 | 3000 | 3065 | 3170 | 3200 | 3350 |
| E | Ground Clearance (mm) | 695 | 894 | 1096 | 1150 | 1150 | 1150 | 1250 | 1460 |
| F | Minimum Ground Clearance (mm) | 355 | 412 | 475 | 475 | 506 | 506 | 545 | 770 |
| G | Tail Swing Radius (mm) | 1655 | 2202 | 2794 | 3188 | 3188 | 3188 | 3530 | 3800 |
| H | Track Length On The Ground (mm) | 1990 | 3035 | 3645 | 4040 | 4040 | 4250 | 4050 | 4470 |
| J | Track Length (mm) | 2535 | 3750 | 4440 | 4940 | 4940 | 4940 | 4975 | 5465 |
| K | Track Gauge(mm) | 1990 | 1990 | 2400 | 2600 | 2600 | 2600 | 2750 | 3303 |
| L | Width of Undercarriage (mm) | 1880 | 2590 | 2980 | 3200 | 3200 | 3200 | 3350 | 3900 |
| M | Track Shoe Width (mm) | 400 | 600 | ||||||
| N | Width of Upper Structure (mm) | 1880 | 2540 | 2990 | 3199 | 3199 | 3199 | 3155 | 3340 |
| V | Minimum Swing Radius (mm) | 2205 | 2207 | 3560 | 4019 | 4019 | 4019 | 4485 | 5210 |
| W | Maximum Height at Minimum Swing Radius (mm) | 4650 | 6100 | 6900 | 7700 | 7700 | 7700 | 7900 | 7880 |
| Z | Counter Weight Clearance (mm) | 695 | 894 | 1096 | 1150 | 1150 | 1150 | 1250 | 1460 |

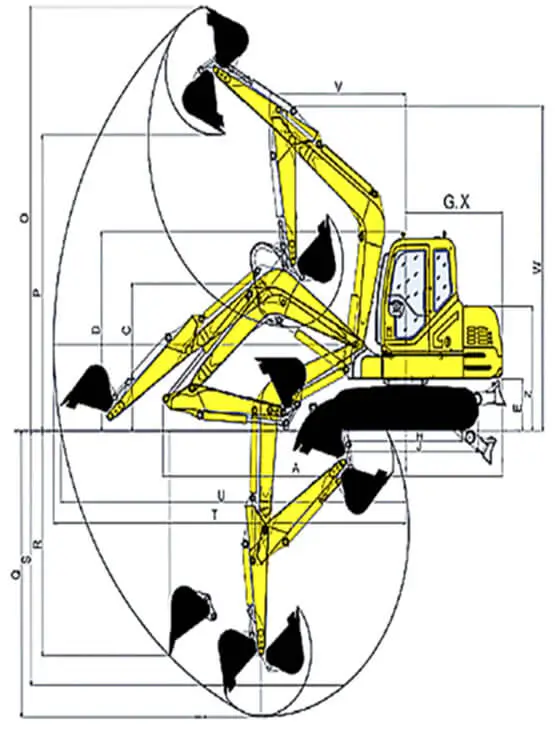

| Working Range | |||||||||
| O | Maximum Digging Height (mm) | 5760 | 8750 | 9616 | 9705 | 9705 | 10315 | 10100 | 10787 |
| P | Maximum Dumping Height (mm) | 4030 | 6300 | 6830 | 7024 | 7024 | 7303 | 7180 | 7915 |
| Q | Maximum Digging Depth (mm) | 3820 | 5625 | 6592 | 6180 | 6180 | 7275 | 7135 | 7795 |
| R | Maximum Vertical Digging Depth (mm) | 3820 | 4650 | 3929 | 4742 | 4742 | 4907 | 3810 | 4370 |
| S | Digging Depth @ 2.5m (mm) | 3800 | 5510 | 6090 | 5580 | 5580 | 6675 | 6635 | 7170 |
| T | Maximum Digging Reach (mm) | 6155 | 8160 | 9873 | 10175 | 10175 | 10506 | 10635 | 11800 |
| U | Maximum Digging Reach at Ground (mm) | 6055 | 8020 | 9725 | 9975 | 9975 | 10256 | 10485 | 11500 |
Main Features
- 1. Engine: ISUZU or Cummins, optional
- 2. Main pump: Kawasaki
- 3. Control valve: Kawasaki or Parker, optional
- 4. Travel motor and swing motor: Danish made advanced motor
- 5. Exclusive highly efficient hydraulic control system
- 6. High-strength frame structure
- 7. Greater ground clearance
- 8. Safe and open engine hood
- 9. High operating efficiency
- 10. Powerful travel tractive force
- 11. Effectively prevent mixing of soil and rock
- 12. Enable rapid and efficient operating work
- 13. Convenient and swift maintenance
