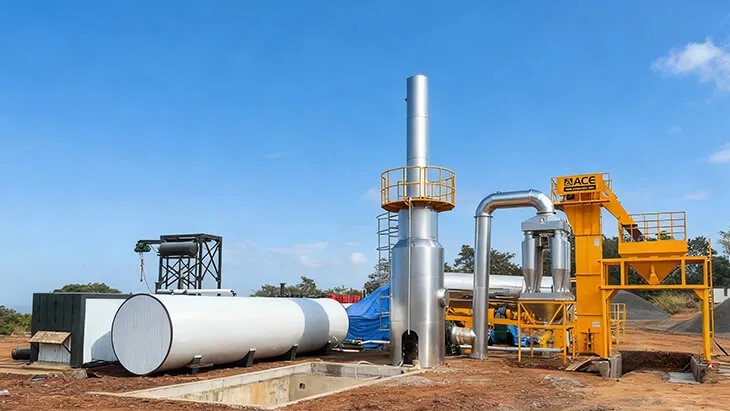

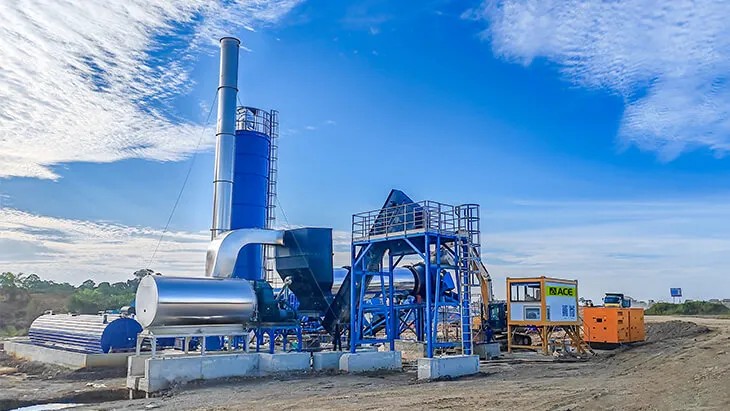

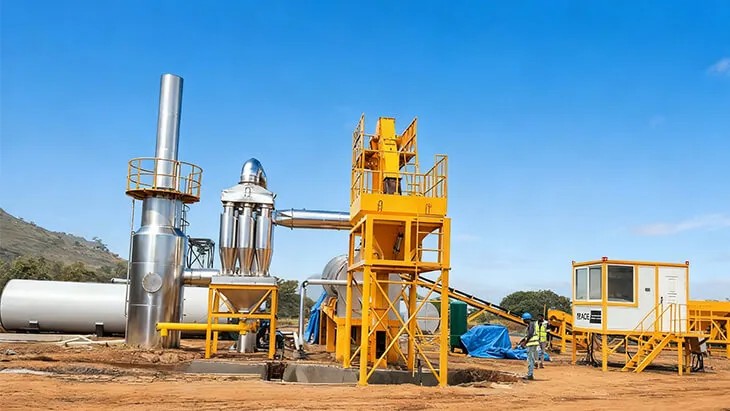

Drum Mix Asphalt Plant DAP Series

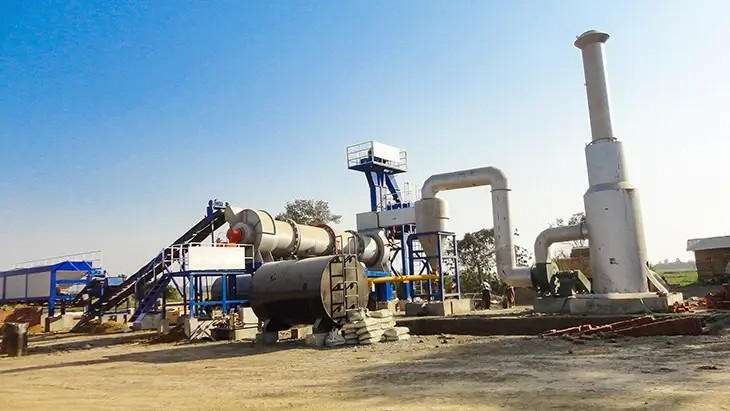

Drum mix asphalt plant for sale produce asphalt mix through a continuous process, thus it is also called continuous asphalt plant (compared to batch mix asphalt plant). In some countries and regions, drum mix asphalt plant also name as asphalt drum mixing plant, drum asphalt production factory, drum asphalt plant and so on.
- Model: DAP40 ~ DAP240
- Capacity: 40t/h ~ 240t/h
- Highlights: Continuous asphalt plant,drum mix;compact structure, easy relocation; Lower initial investment, cost effective, shorter payback period.
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
DAP Series asphalt mixing plants are featured by simple structure, easy operation and low operation and maintenance costs. Output is 40 ~ 240tph, suitable for small and medium-sized road construction project.
Technical Parameters
Production capacity of DAP Series drum mix asphalt plant ranges from 40t/h to 240t/h. Clients can choose the right model according to their production or projects requirements. ACE Group accept customized design and production based on the following model and parameters. In addition, mobile chassis can be added on the main modules and make DAP asphalt plant portable and ease of relocatio
| Model | Capacity(t/h) | Measurement Accuracy | Total Power (kW) | Fuel Consumption (kg/t) | ||
| Aggregate | Bitumen | Coal | Oil | |||
| DAP40 | 40 | ±1.5% | ±1% | 75 | 10-13 | 5.5-7 |
| DAP60 | 60 | ±1.5% | ±1% | 128 | 10-13 | 5.5-7 |
| DAP80 | 80 | ±1.5% | ±1% | 165 | 10-13 | 5.5-7 |
| DAP100 | 100 | ±1.5% | ±1% | 200 | 10-13 | 5.5-7 |
| DAP120 | 120 | ±1.5% | ±1% | 300 | 10-13 | 5.5-7 |
| DAP160 | 160 | ±1.5% | ±1% | 365 | 10-13 | 5.5-7 |
| DAP200 | 200 | ±1.5% | ±1% | 426 | 10-13 | 5.5-7 |
| DAP240 | 240 | ±1.5% | ±1% | 473 | 10-13 | 5.5-7 |
Main Features
1. Smaller size and compact structure, less land footprint, could be located in a narrow or confined area.
2. Compared with batch mix asphalt plant, DAP series has no mixing tower, quite convenient for transportation, installation and relocation.
3. Cold aggregate feeder with load cells and variable frequency motor; aggregate feed is precised controlled.
4. Drying drum has functions of heating, drying and mixing, higher EER; optimized inner structure and external thermal insulation shell, rapid heating and less heat loss.
5. Easier for operation and maintenance.
6. Low initial investment and highly cost effective.
Main Components
Variable speed motor on feeder belt, feed Rate adjustable. Scales installed under each bin to ensure weighing accuracy.
Direct heated bitumen tanks with heat transfer oil warming. Electric-heated bitumen tank optional.
High efficiency burner, international famous brand, saving fuel. Diesel, gas, heavy oil fueled burner as required.

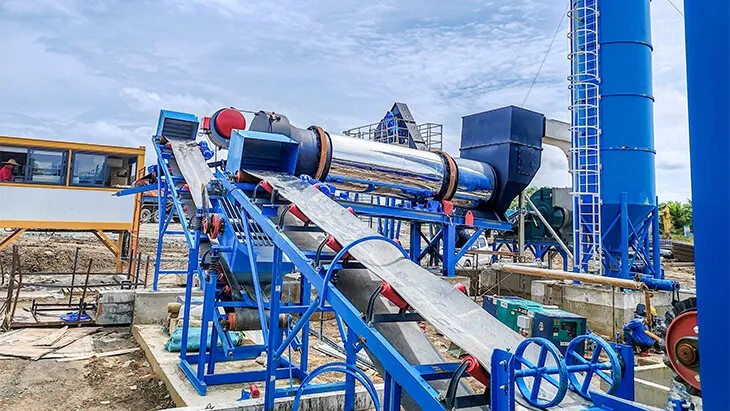

Parallel flow drum with function of drying and mixing. Optimized inner structure ensure better dry and mix performance
Chain-hopper type elevator, convey hot aggregate to hot storage silo. Elevator envelope fully enclosed with insulation, avoid heat loss.
A elevated bin for temporary storage of finished asphalt mix. Bin volume is optional, discharge height is adjustable.
PLC control system, user-friendly, ease of operation. Electrical elements are Siemens made, reliable, longer service life.
Mobile chassis can be added on main modules to make it portable. Transportation and relocation of the plant is quite fast and easy.

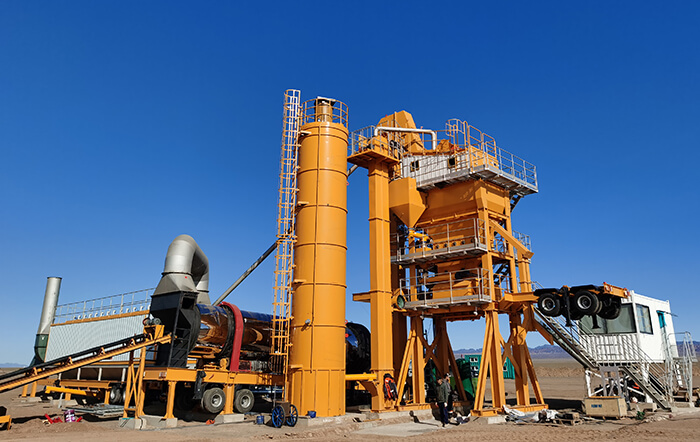

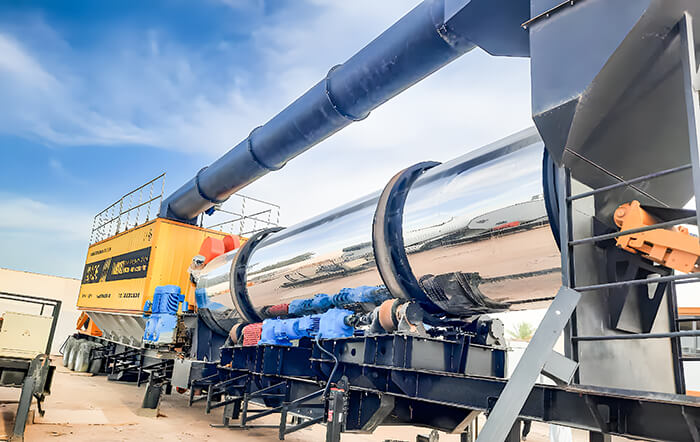

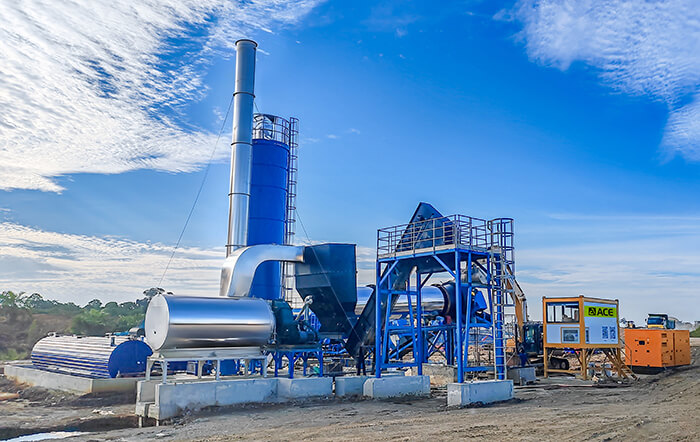

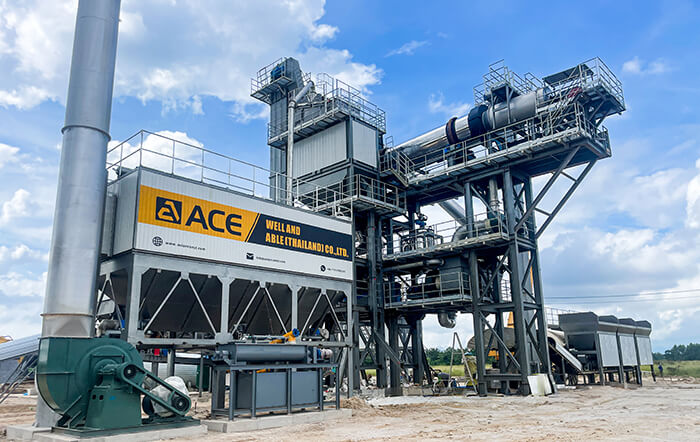

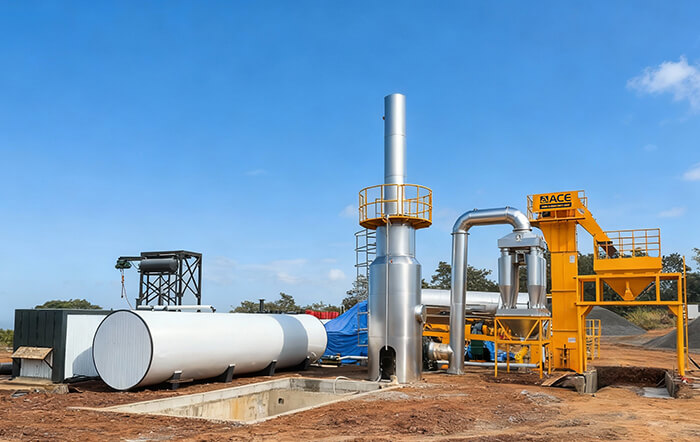

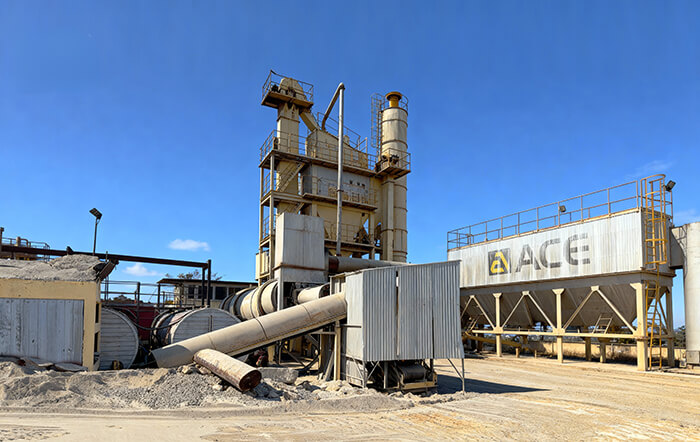

Construction Case
