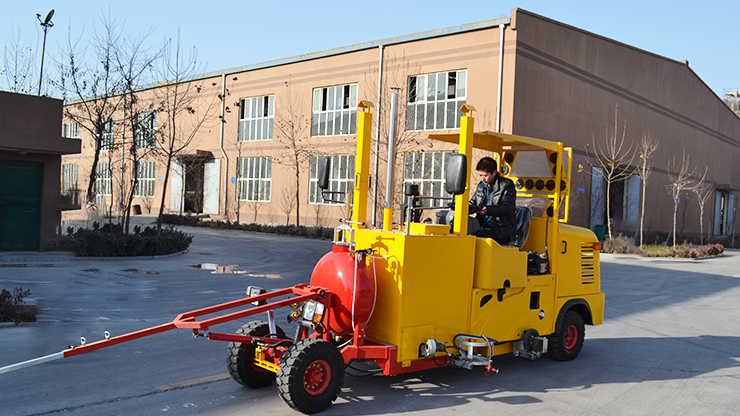

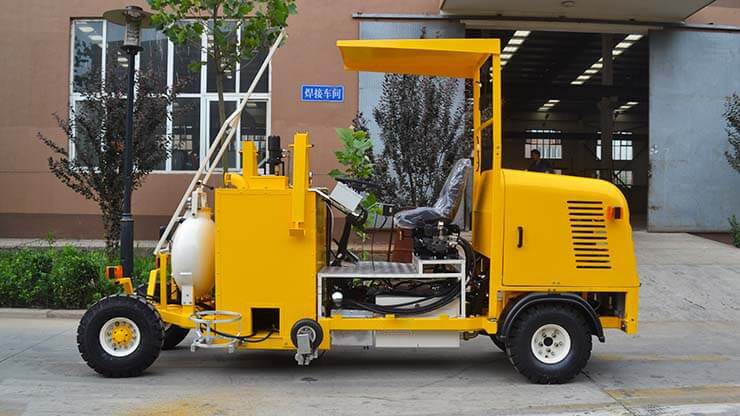

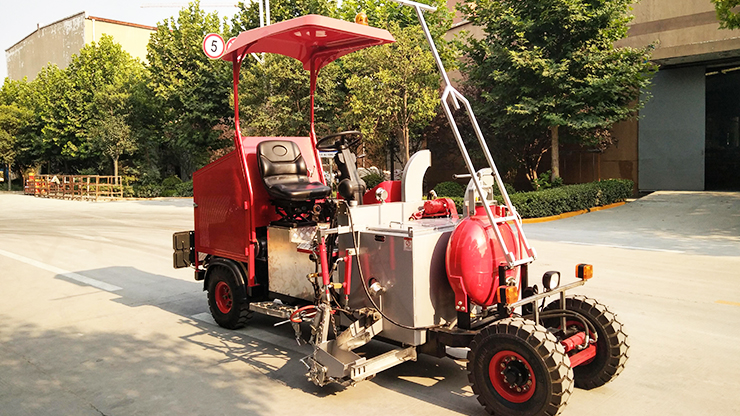

Driving-type Thermoplastic Spraying Road Marking Machine
Driving-type Thermoplastic Spraying Road Marking Machine are low-pressure air spraying thermoplastic road marking machine with high efficiency and flexibility. It can serve long distance and continuous line marking work.
- Model: AC-BTS；AC-MTS
- Paint Tank Capacity: 250L- 450L
- Highlights: Strong bearing capacity, easy operation
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Principle
Driving-type Thermoplastic Spraying Road Marking Machine is a driving type machine which equipped with atomized air-auxiliary spray gun with low pressure to spray the paint and glass beads.
The atomized gas's heating oil recycle pump and heat exchanger in this system is able to improve the spray effect. Spray width can be freely adjusted.
Technical Parameters
ACE provides big and middle and small type of Driving-type Thermoplastic Spraying Road Marking Machine with different bin volume and spray width. They all adopt world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
| Product model | AC-BTS | AC-MTS |
|---|---|---|
| Engine | 37 kW diesel engine | 37 kW diesel engine |
| Air compressor | 3 m3/min, screw type | 3 m3/min, screw type |
| Heating Mode | Liquefied petroleum gas, conducting oil heating, automatic temperature control | Liquefied petroleum gas, conducting oil heating, automatic temperature control |
| Paint tank capacity | 450 L pressure tank | 250 L pressure tank |
| Glass beads bin | 120 L | 120 L |
| Marking equipment | Equipped with double air spray guns | Equipped with single air spray guns |
| Marking width | 100 mm - 500 mm (adjustable) | 100 mm - 250 mm (adjustable) |
| Marking thickness | 1.0 mm - 2.0 mm (adjustable) | 1.0 mm - 2.0 mm (adjustable) |
| Control system | Digital intelligent control system | Digital intelligent control system |
| Dimensions (L*W*H) | 5100 mm * 2450 mm * 2300 mm | 4100 mm * 1900 mm * 2100 mm |
| Weight | 3800 kg | 2800 kg |
| Optional system | Guide warning screen, pre-marking system, and trailer | Guide warning screen, pre-marking system, and trailer |
Main Feature
37KW water-cooled electrical starting diesel engine with four-cylinder in-line that is environmental protection with low noise. The fuel tank Capacity is 60L.
Infrared propane heating, electronic ignition, automatic temperature control and conduction oil heating that can save more than 30% fuel, and make the heating evener, quicker.
Imported oil pressurized continuously variable speed transmission system (HTS) with an automatic brake device that can freely go ahead, back off and stop.
Equipped with double atomized air-auxiliary spray gun with low pressure. The atomized gas's heating oil recycle pump and heat exchanger in this system is able to improve the spray effect.
Equipped with 120L pressurized glass beads bin with windows that can uninterruptedly spray glass beads. It can be equipped on the left or right.
Multi-functional interface; It can be set with various marking types according to the requirements of the users. The line type and length can be adjusted.
3m3/min screw type compressor; the air source storage tank can adjust the pressure and is installed with a safe automatic exhaust device.
Equipped with double warning lights, whose flicker frequency (sudden flicker frequency) can be freely adjusted.
