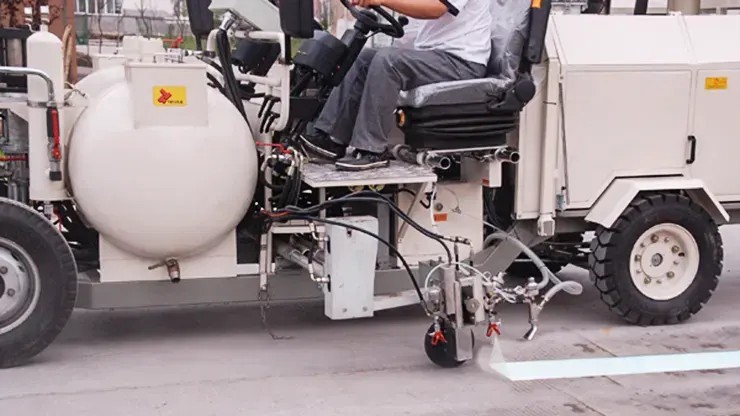

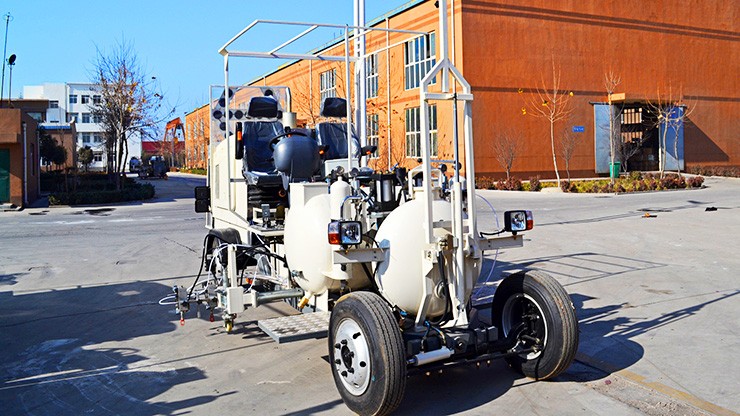

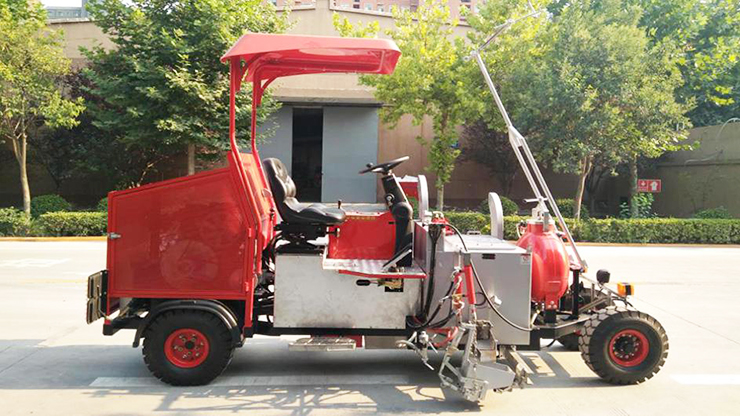

Driving-type Thermoplastic Screeding Road Marking Machine
Driving-type thermoplastic screeding road marking machine is a professional road marking machine with high efficiency, and suitable for marking highway, urban road and local road with large construction square.
- Model: AC-BTSC-I/II，AC-MTSC-I/II，AC-STM-I/II
- Paint Tank Capacity: 160L- 325L
- Highlights: Strong bearing capacity, easy operation
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Principle
Driving-type thermoplastic screeding road marking machine is a driving type machine which equipped with hydraulic screeding marking shoe, with different marking shoe can mark the flat line or convex line. Type I: pneumatic screeding flat line marking shoe. Type II: pneumatic screeding flat or convex line marking shoe.
Technical Parameters
ACE provides big and middle and small type of Driving-type thermoplastic screeding road marking machine with different bin volume and spray width. They all adopt world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
| Product model | AC-BTSC-I/II | AC-MTSC-I/II | AC-STM-I/II | |||
|---|---|---|---|---|---|---|
| Engine | 37 kW diesel engine | 35 kW diesel engine | Kohler 25 HP gasoline engine | |||
| Air compressor | 0.6m3/min | 0.6m3/min | 0.6m3/min | |||
| Heating Mode | Liquefied petroleum gas, conducting oil heating, automatic temperature control | |||||
| Paint tank capacity | 325 L pressure tank | 250 L pressure tank | 160 L pressure tank | |||
| Glass beads bin | 120 L | 120 L | 55 L | |||
| Marking equipment | Pneumatic flat line marking shoe (Model I) Pneumatic flat or convex line marking shoe (Model II) |
|||||
| Standard configuration 150 mm | ||||||
| Marking width | 100 mm, 200 mm, 250 mm, 300 mm (optional) | |||||
| Marking thickness | 1.8 mm - 3.5 mm (adjustable) (Model I) Bottom line 1.0 mm - 2.5 mm (adjustable) and convex height 3 mm - 7 mm (adjustable) (Model II) |
|||||
| Control system | Digital intelligent control system | |||||
| Dimensions (L*W*H) | 5950*2200*2200 mm | 4100*1900*2100 mm | 3300*1450*2370 mm | |||
| Weight | 2960 kg | 2260 kg | 910 kg | |||
| Optional system | Guide warning screen, pre-marking system, and trailer | |||||
Main Feature
37KW or 35KW water-cooled electrical starting diesel engine with four-cylinder in-line that is environmental protection with low noise. The fuel tank Capacity is 40L-60L.
Infrared propane heating, electronic ignition, automatic temperature control and conduction oil heating that can save more than 30% fuel, and make the heating evener, quicker.
Imported oil pressurized continuously variable speed transmission system (HTS) with an automatic brake device that can freely go ahead, back off and stop.
Equipped with hydraulic screeding marking shoe, it can mark flat or convex line. structure board is made of special steel sheet with high-temperature resistance (2000℃), It has much better stability after stamping.
Equipped with 55L-120L pressurized glass beads bin with windows that can uninterruptedly spray glass beads. It can be equipped on the left or right.
Set up various standard line type control mode to realize micro-electronic intelligent control; it can be freely adjusted according to the customer's personalized needs.
0.6 m3/min screw type compressor; the air source storage tank can adjust the pressure and is installed with a safe automatic exhaust device.
Equipped with double warning lights, whose flicker frequency (sudden flicker frequency) can be freely adjusted.
