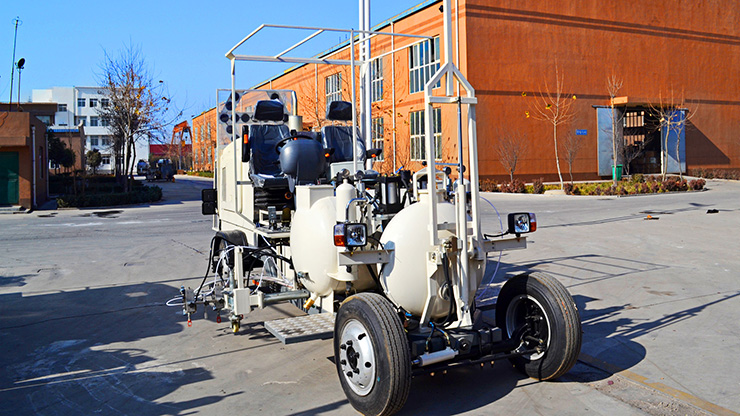

Driving-type Cold Paint Airless Road Marking Machine
Driving type cold paint airless road marking machine is a kind of driving type airless cold and tow-component road marking machine. Large capacity paint tank and glass beads bin make it suit for long distance and continuous marking work.
- Model: AC-BSAL-I/II; AC-MSAL-I/II; AC-SSAL-I/II
- Paint Tank Capacity: 100L
- Highlights: Cold-solvent paint, water-based paint and two-component paint (optional)
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Working Principle
Driving type airless road marking machine is a driving type machine which equipped with pneumatic spraying guns, single manual spraying gun, automatic gun rack and high pressure airless piston pump, stable pressure and high flow can ensure high efficiency and high quality road marking. It can paint cold-solvent paint, water-based paint and two-component paint according to users needs.
Technical Parameters
ACE provides big and middle and small types of driving type cold paint airless road marking machine with different bin volume and spray width. They all adopt world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
| Product model | AC-BSAL-I/II | AC-MSAL-I/II | AC-SSAL-I/II |
|---|---|---|---|
| Engine | 37 kW water-cooled four-cylinder diesel engine | 26 kW water-cooled three-cylinder gasoline engine | Kohler 18 HP or Honda 20 HP gasoline engine |
| Air compressor | 0.6 m3/min | 0.6 m3/min | 0.6 m3/min |
| Applied paint | Cold-solvent paint, water-based paint and two-component paint (optional) | Cold solvent paint, water-based paint (Model I) Cold solvent, water-based, two-component, two color paint (Model II) |
|
| Paint tank capacity | 325 L * 2 | 260 L(Model I) / 130 L * 2(Model II) | 170 L(Model I) / 170 L * 2(Model II) |
| Glass beads bin | 175 L | 55 L | 52 L |
| Paint pump | Double high-pressure airless pumps; Maximum pressure: 20 MPa; Single pump flow: 20 L/min | Single high-pressure airless plunger pumps; Maximum pressure: 25 MPa; Single pump flow: 20 L/min Double high-pressure airless plunger pumps; Maximum pressure: 25 MPa; Single pump flow: 12.5 L/min |
|
| Spray gun | Double pneumatic spraying guns(Model I), Four pneumatic spraying guns(Model II), single manual spraying gun, automatic gun rack | Double pneumatic spraying guns, single manual spraying gun | |
| Marking width | 50 mm - 1000 mm (adjustable) | 50 mm - 1000 mm (adjustable) | 50 mm - 1000 mm (adjustable) |
| Control system | Digital intelligent control system | Digital intelligent control system | Digital intelligent control system |
| Dimensions (L*W*H) | 5300 mm * 2200 mm * 2300 mm | 3700 mm * 1840 mm * 2450 mm | 2900 mm * 1600 mm * 2400 mm |
| Weight | 2800 kg | 782 kg | 682 kg |
| Optional system | Guide warning screen, pre-marking system, trailer, swing type, screeding type and two-component type | ||
Main Feature
Advanced hydraulic drive CVT system, adjust and control speed accurately.
High capacity double room paint tank and glass beads tank can ensure long distance and continuous road marking.
New type high pressure airless piston pump, stable pressure and high flow can ensure high efficiency and high quality road marking.
It can ensure stir equably, and improve the performance of paint effectively and the durability of road marking line.

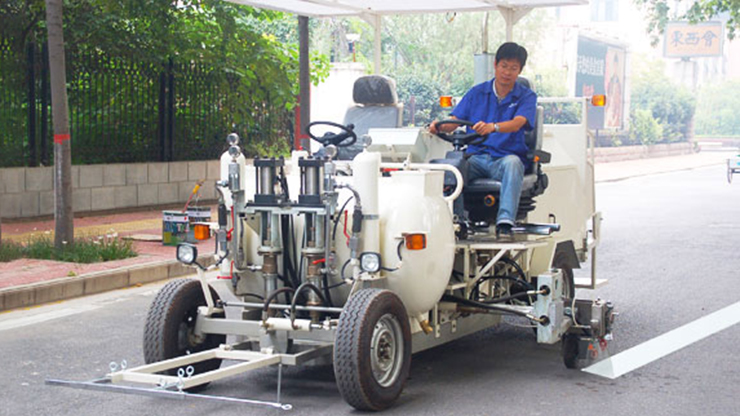

Construction Case
