Double Drum Vibratory Roller Manufacturer

Double Drum Vibratory Roller

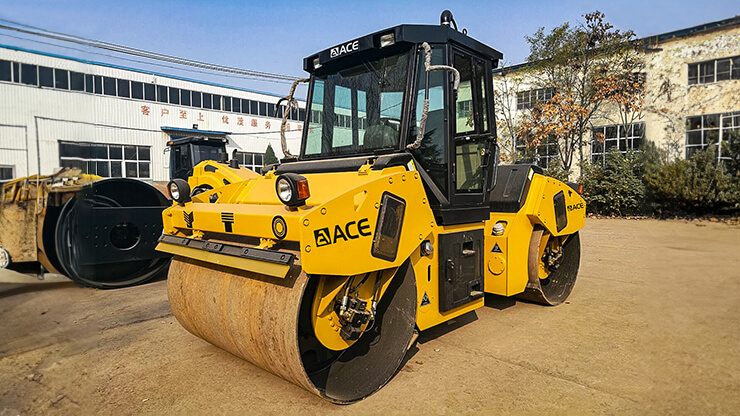

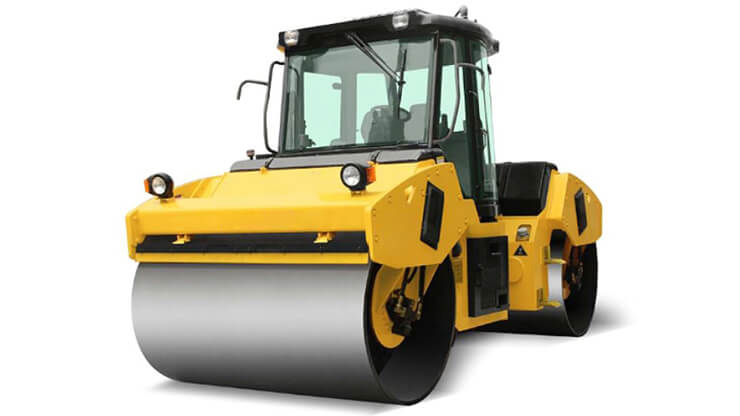

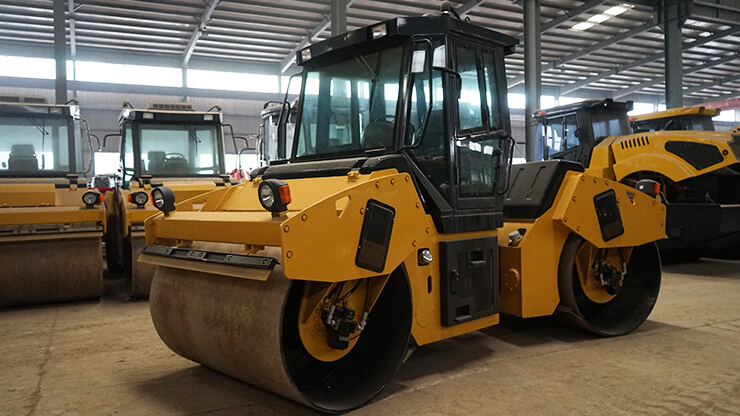

ATC series hydraulic double drum vibratory roller (also called tandem roller) is manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.

Model: ATC208 ~ ATC214
Vibrating Drum Diameter: 1,150mm ~ 1,350mm
Highlights: Fully hydraulic, dual vibration amplitudes, patented crab mechanism, operation and maintenance facilitated

ISO、CE、EAC
12-month Warranty
L/C Accepted
7*24H Response

Get Price

Scope of Application

By use of international advanced technology and imported main components abroad, ATC series double drum vibratory rollers are mostly utilized to planish sand dirt and gravel as well as lawn. They come with imported famous brand hydraulic motors and pumps, and reliable performance is proven by our customers.

Technical Parameters

Product Model	ATC208	ATC210	ATC212	ATC214
Operation Weight	8,000kg	10,000kg	12,000kg	14,000kg
Static Linear Load	231N/cm	238N/cm	286N/cm	333N/cm
Vibration Amplitude	0.67mm/0.34mm	0.67mm/0.34mm	0.8mm/0.4mm	0.8mm/0.4mm
Vibration Frequency	45Hz/40Hz	45Hz/40Hz	40Hz/46Hz	40Hz/46Hz
Centrifugal Force	90KN×2/69KN×2	90KN×2/69KN×2	160KN×2/90KN×2	160KN×2/90KN×2
Travel Speed	0-10km/h	0-10km/h	0-12km/h	0-12km/h
Steering Angle	±30°	±30°	±30°	±30°
Type of Water Spray	Pressure	Pressure	Pressure	Pressure
Vibrating Drum Diameter	1,150mm	1,150mm	1,350mm	1,350mm
Vibration Round Width	1,730mm	1,730mm	2,100mm	2,100mm
Turning Radius	6,000mm	6,000mm	7,000mm	7,000mm
Gradeability	40%	40%	40%	40%
Wheelbase	3,217mm	3,217mm	3,217mm	3,217mm
Ground Clearance	258mm	258mm	324mm	324mm
Engine Power	75kW/Cummins	75kW/Cummins	110kW/Cummins	110kW/Cummins
Dimension(L×W×H)	4558×1840×2674mm	4558×1840×2674mm	5060×2250×3300mm	5060×2250×3300mm

Main Feature

Double drum vibratory roller with CUMMINS engine and full hydraulic drive — CUMMINS engine, fully hydraulic, double drum drive, vibration compaction, ensuring better compaction

Dual vibration frequency and amplitudes system for road roller compaction — Dual vibration frequency, dual vibration amplitudes, better compaction effect

Articulated steering and patented crab mechanism of double drum roller — Articulated steering, patented crab mechanism

Comfortable AC cabin with flexible steering seat for road roller operator — Cabin with air conditioner, comfortable and spacious; the flexible steering seat facilitates the operation

Turnable driver's cabin design for easy maintenance of vibratory roller — Driver's cabin can be turned on one side as a whole to facilitate maintenance

SAUER DANFOSS or REXROTH hydraulic pump and vibrating motors for road roller — Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER DANFOSS or German manufacturer REXROTH

Intelligent engine power control system for fuel saving on double drum roller — According to the intelligent control of engine power output, the overall fuel saving of the whole machine can reach above 8%

Large capacity water tank and filtered spray system for road compaction — The large-capacity water tank can meet the long working demand, reduce the time of adding water, and the nozzle adopts three-stage filtration system to prevent the nozzle from blocking
