Mobile Crawler Jaw Crusher

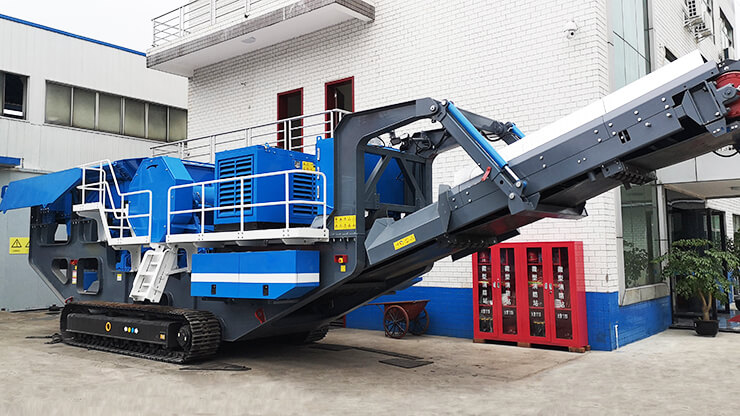

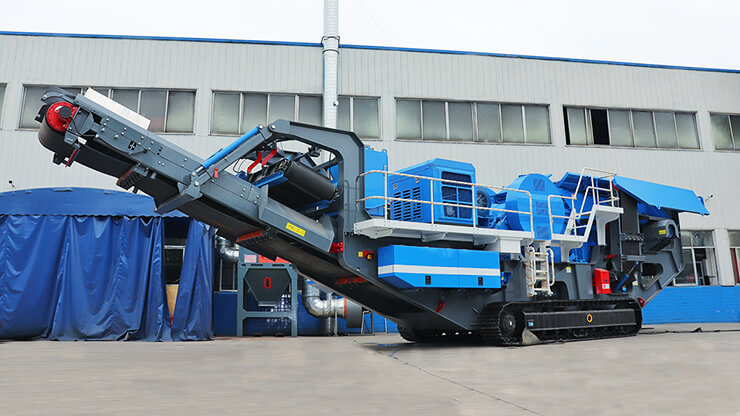

Crawler Mobile Jaw Crushing Plant AMJ750 is a newly developed crusher with the optimized design. As the preferred equipment for coarse aggregates crushing, it owns large crushing ratio and high production efficiency. The whole plant is driven by electricity and can be produced on-site with its own power supply. It is the preferred equipment for primary crushing.
- Model: AMJ750
- Processing capacity: 150t/h ~ 250t/h
- Highlights: Unique structure, highly mobile, electricity driven, stable performance, large crushing ratio and strong processing capacity.
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
Crawler Mobile Jaw Crushing Plant AMJ750 is the preferred equipment for crushing various high-hardness and highly abrasive rock minerals. It is mainly used for primary crushing in various industries,such as mining and smelting, building materials, highways, railways, water conservancy and others. Its application scenes include but not limited to fracture of mine rock, utilization of solid waste resources, recycling of road surface and house demolition.
Technical Parameters
| Model | AMJ750 |
|---|---|
| Feeding Device | |
| Feed Height (mm) | 3750 |
| Max. Feed Size (mm) | 600 |
| Length×Width (mm) | 4300×1000 |
| Vibration Motor Power (kW) | 12 |
| Hopper Volume (m³) | 4.5 |
| Tipper Hopper Volume (m³)(Optional) | 6 |
| Crusher | |
| Jaw Crusher | ME106 |
| Feed Port Length×Width (mm) | 1060×750 |
| Weight (t) | 17 |
| Max. Feed Size (mm) | 600 |
| Crusher Power (kW) | 110kW-6 |
| Main Belt Conveyor | |
| Width(mm) | B1100 |
| Stockpiling Height (mm) | 3570 |
| Geared motor Power (kW) | 15 |
| Tail Belt Conveyor(Optional) | |
| Width(mm) | B650 |
| Geared motor Power (kW) | 3 |
| Iron Separator(Optional) | |
| Length×Width (mm) | 1900×B800 |
| Geared motor Power (kW) | 3 |
| Overview | |
| Generator Set Power (kW) | 300kW |
| Crawler Chassis | DL375A |
| Track Drive Power (kW) | 55kW |
| Total Weight (t) | ≈47T-50T |
| Processing Capacity (t/h) | 150-250t/h |
| Total Operating Power (kW) | 142 |

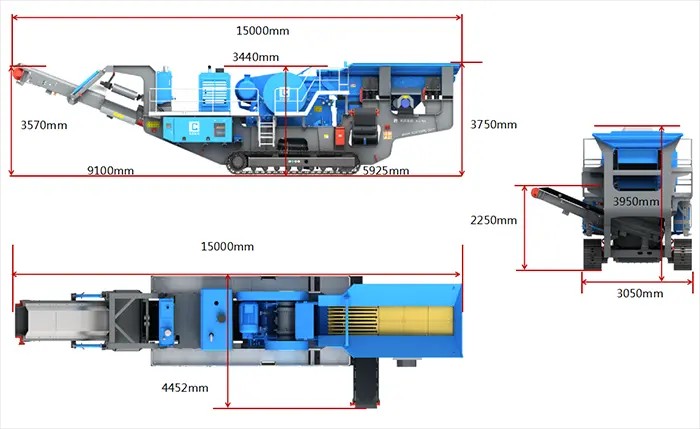

| Operating Dimensions (L*W*H/mm) | 15000×4960×3950 |

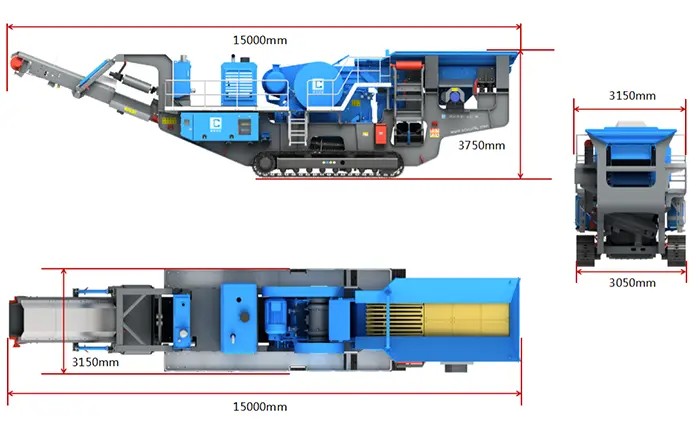

| Transport Dimensions (L*W*H/mm) | 15000×3300×3750 |
Main Feature
1. Robust modular structure, easy spare parts replacement, fatigue and shock resistant, longer service time.
2. Specially-designed cavity, V-shape symmetrical crushing cavity, smaller locking angle, deeper cavity, larger stroke length. Larger productivity, less energy consumption.
3. Optimized movable jaw assembly with forged heavy-duty eccentric shaft and high quality spherical roller bearings. Designed and machined on the basis of finite element analysis, stable and reliable performance. Movable jaws with perfect seal and lubrication.
4. Large crushing ratio, finish aggregate of uniform and better granular shape.
5. Highly compacted, drive motors are integrated on main frame so that the machine is smaller in size yet much more flexible.

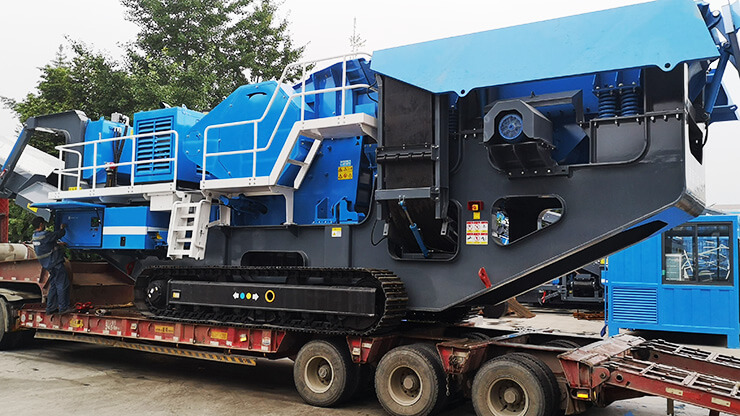

6. Intelligent wireless controller, track-mounted, self-propelled, easy load on lowbed semitrailer, fast mobilization and relocation.
7. World famous key devices are employed, Schneider electrical elements, Cummins diesel engine, Eaton hydraulic plunger pump, Strickland track, Bonfiglioli /Brevini hydraulic motor. Performance, service life and value of the crusher is guaranteed.
Main Components
High fatigue resistance, strong impact resistance, large crushing ratio, high productivity and low energy consumption
Stable performance, convenient maintenance, energy saving, durable and low noise.
Double-layered, dust-proof and waterproof, visual cabinet and inspection window.
Control crawler travel and auxiliary equipment operation. Owns higher operating safety.
Heavy-duty vibrating feeder with on-load start function, adjustable feeding speed and stronger feeding capacity.
Tear-resistant material, higher stacking capacity, dual motor drive ensure better synchronization and lower energy consumption.
Heavy-duty crawler tracks, hydraulic drive, huge load-bearing capacity, strong maneuverability and Grease tension adjustment.
High-pressure atomizing nozzles with adjustable water spray volume are used to reduce dust.
Pre-screen the mud-containing waste in the raw materials to effectively improve the quality of the finished materials, greater stacking and conveying capacity.
Effectively screen out fine materials and mud-containing waste,improve equipment throughput and reduce equipment wear.
self-unloading, strong magnetism and high efficiency, effectively removes ferromagnetic metals contained in crushed materials.

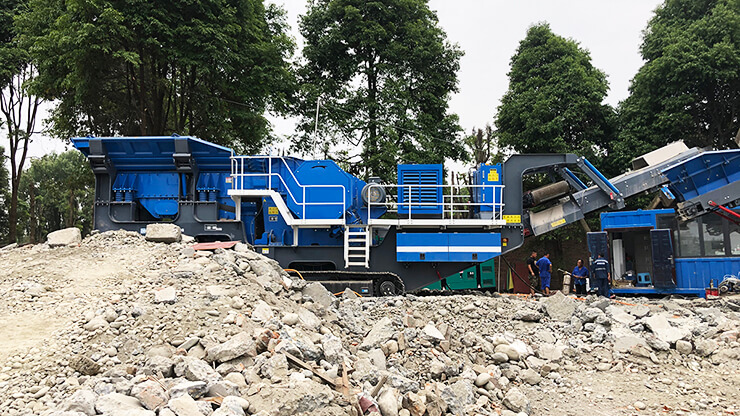

Construction Case
The combination of mobile crusher plants and mobile screening plants is becoming more and more popular, which not only can efficiently use the permitted time of mining, reduce transportation costs, but also can obtain ultra-high-quality finished materials. ACE has launched a number of classic product portfolios and is meanwhile committed to finding the most economical solutions for customers.
