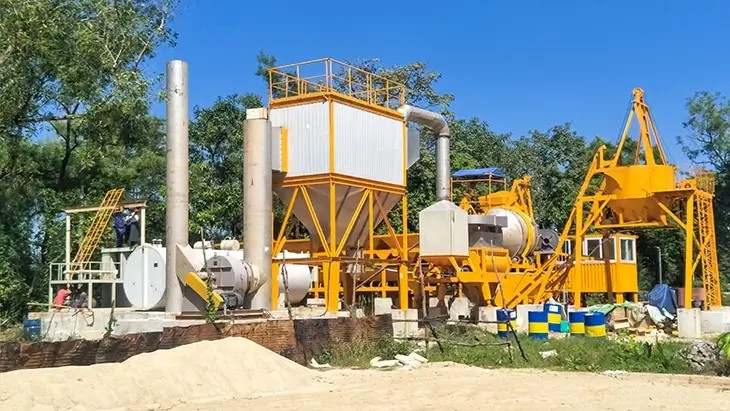

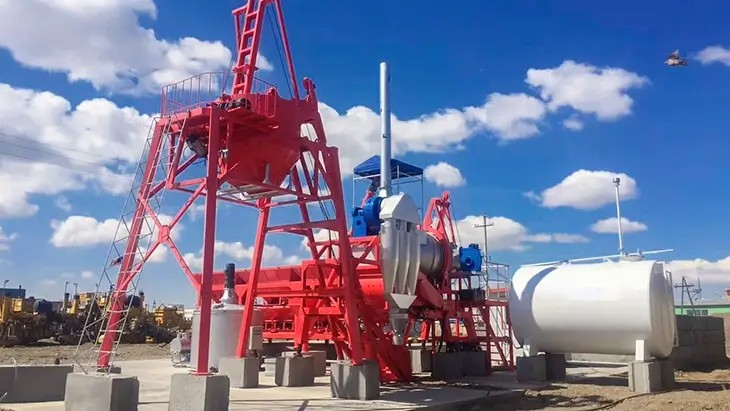

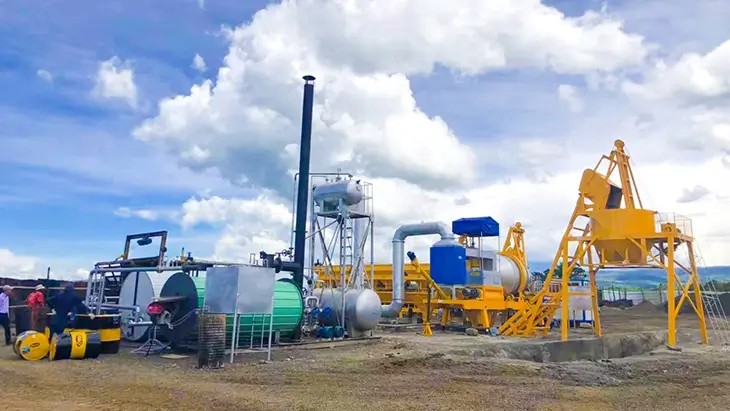

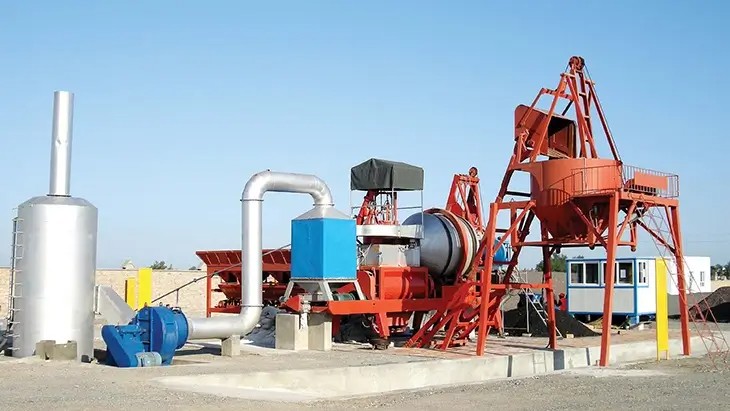

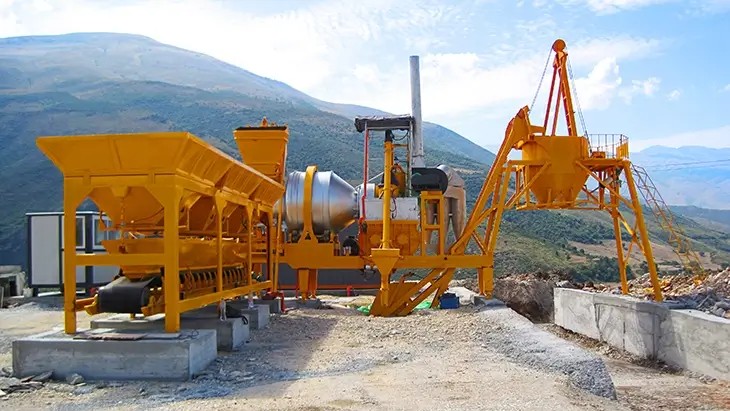

Compact Asphalt Plant CAP Series
CAP Series is a type of light-duty asphalt batch mix plant with compact structure and lower gravity center. It has no mixing tower, maximum height is less than 4 meters. It requires minimal foundation and small footprint, therefore it is quite easy for erection, installation and relocation. The most prominent feature of CAP Compact Asphalt Plant is that it enjoys the advantages of batch mix asphalt plant and drum mix asphalt plant.
- Model: CAP10 ~ CAP80
- Capacity: 10t/h ~ 80t/h
- Highlights: Compact structure, no mixing tower, easy relocation, highly cost-effective
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
CAP Series Compact Asphalt Batch Mix Plant, production capacity between 10t/h to 80t/h, is designed to produce asphalt mix for small and medium-sized road construction projects. Portable version available.
Technical Parameters
CAP series compact asphalt plant for sale, production capacity ranges from 10t/h to 80t/h. Diesel, heavy oil, gas burner available. Water dust filter or bag house dust filter as required. Chassis can be added to make it portable upon requirement.
| Model | CAP10 | CAP20 | CAP30 | CAP40 | CAP60 | CAP80 | ||
| Capacity | 10t/h | 20t/h | 30t/h | 40t/h | 60t/h | 80t/h | ||
| Aggregate Feeder | 3m³*3 | 5m³*3 | 8m³*3 | 8m³*3 | 8m³*3 | 8m³*3 | ||
| Mixer Capacity | 0.35m³ | 0.5m³ | 0.75m³ | 1m³ | 1m³ | 1m³ | ||
| Total Power | 71kW | 91kW | 105kW | 140kW | 170kW | 201kW | ||
| Fuel Consumption | Disel | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | |
| Coal | 10kg/t | 10kg/t | 10kg/t | 10kg/t | 10kg/t | 10kg/t | ||
| Measurement Accuracy | Aggregate: ±0.5%; Filler: ±0.25%; Bitumen: ±0.25% | |||||||
Main Features
1. Compact and Portable
Batch mix asphalt plant without mixing tower, low gravity center, less foundation requirement. Installation and relocation are quite easy, no need for large truck cranes.
2. Precise Weighing and Batching
Filler, aggregate and bitumen are weighed by tension scale, ensuring precise weighing and batching. Quality of the finished asphalt mixture are ensured.
3. Integrated Structure
Drying drum and mixer are integrated on one skid, convenient for installation and maintenance.
4. Intelligent Control
Touch panel with PLC control system, auto and manual operation available, ease of operation.
5. Easy and Fast Relocation
Mobile chassis can be added onto main components if required, so as to increase it mobility.
6. Highly Cost-effective
Reliable performance, lower initial investment, short ROI time, highly cost-effective.
Main Components
3-bin / 4-bin cold feeder which can be disassembled for easier transportation. Electronic scale with tension load cell, ensuring precise weighing and batching.
Main machine module is consisting of drying drum, mixer, filler feeder, skid bucket and primary dust filter. Integrated on one skid, ease of shipment.
Bag house dust collector, pulse jet type, minimal dust emission. NOXEX bags, sturdy and durable, longer service life. Water dust filter optional.
Hot storage silo is modular structure, convenient for transportation and installation. Dump skid feeding , easy for repair and maintenance.
Construction Case
