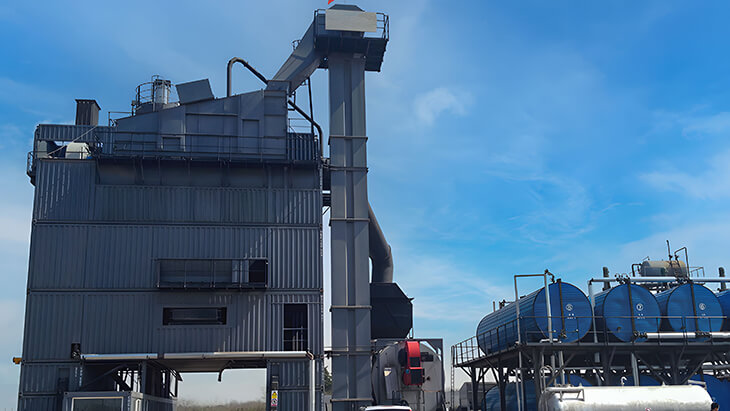

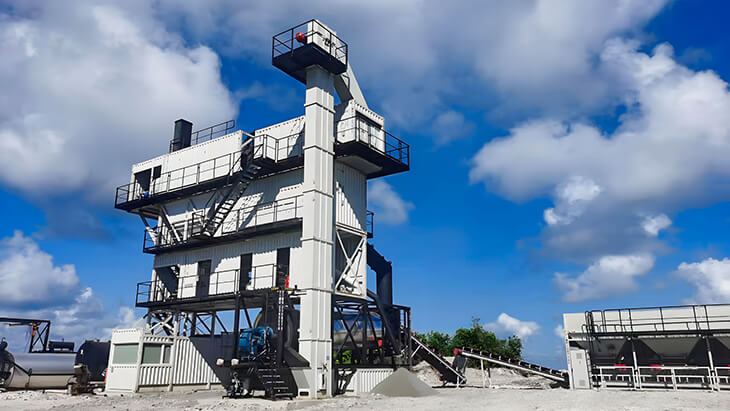

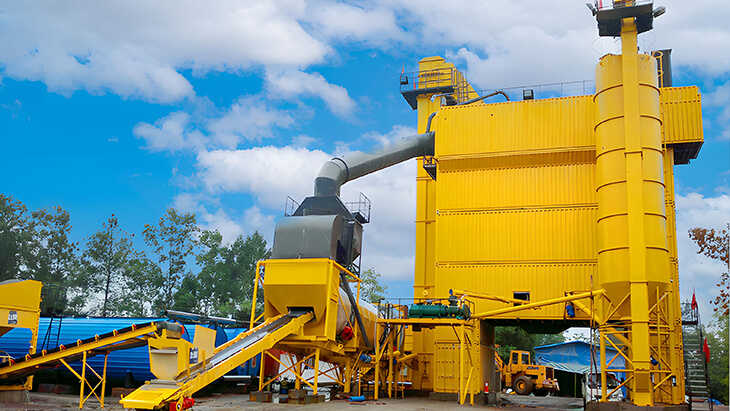

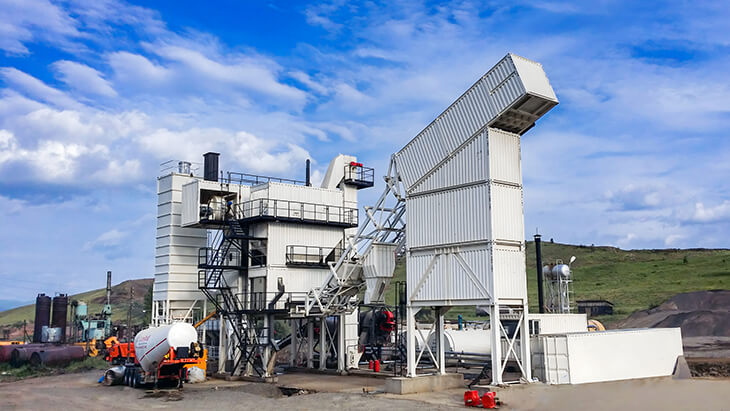

Containerized Asphalt Mixing Plant CFB Series
CFB series Containerized Asphalt Mixing Plant is a portable batching plant with a modular design, featuring in flexibility, quick installation, and accurate weighing. It can effectively mix various asphalt mixtures with cold aggregate feeding system, drying system, screening and mixing system, dust collecting system, and control system. The containerized design makes it easy to use on different sites. This Mixing Plant offers different models to meet diverse production capacity requirements.
- Model: CFB80 ~ CFB400
- Capacity: 80t/h ~ 400t/h
- Highlights: Containerized, easy transportation; Foundation-free, quick installation; Accurate weighing, batch mix, high re-sale value.
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Scope of Application
The CFB series Containerized Asphalt Mixing Plant is a neat and compact mixing plant, which facilitates quick relocation and reassembly can be completed within hours. No foundation construction is required. It is the ideal choice for medium and high-end long-distance road construction projects and is currently popular in markets.
Technical Parameters
As a leading China supermobile asphalt mixing plant manufacturer, supplier and exporter, ACE Group's CFB series containerized mobile batch asphalt mixing equipment has production capacities from 80t/h ~ 400t/h. It is easy to transfer and assemble, and customers can choose the suitable model according to their production or project requirements.
| Model | CFB80 | CFB120 | CFB160 | CFB240 | CFB320 | CFB400 |
|---|---|---|---|---|---|---|
| Production capacity(t/h) | 80 | 120 | 160 | 240 | 320 | 400 |
| Total Power(kW) | 245 | 305 | 345 | 505 | 660 | 810 |
| Cold Aggregate Feeders (m³) | 4*8 | 4*9 | 5*9 | 6*12 | 6*15 | 6*18 |
| Drying Drum (mm) | 6000 x 1500 | 7500 x 1600 | 7500 x 1800 | 8500 x 2000 | 9500 x 2200 | 11000 x 2700 |
| Hot Aggregate Storage Bins (m³) | 12 | 22 | 36 | 53 | 53 | 70 |
| Hot Aggregate Weighing Sensor(kg) | 1000 | 1200 | 1750 | 2250 | 3000 | 4000 |
| Filler Weighing Sensor(kg) | 100 | 250 | 250 | 250 | 400 | 600 |
| Bitumen Weighing Sensor(kg) | 100 | 200 | 200 | 200 | 400 | 600 |
| Mixer Capacity (kg) | 1500 | 1500 | 2250 | 3500 | 4250 | 5500 |
| Bag-house Dust Collector Filtering Area (m²) | 400 | 473 | 489 | 674 | 830 | 1132 |
| Filler Silo (m³) | 30 | 30 | 30 | 30 | 52 | 75 |

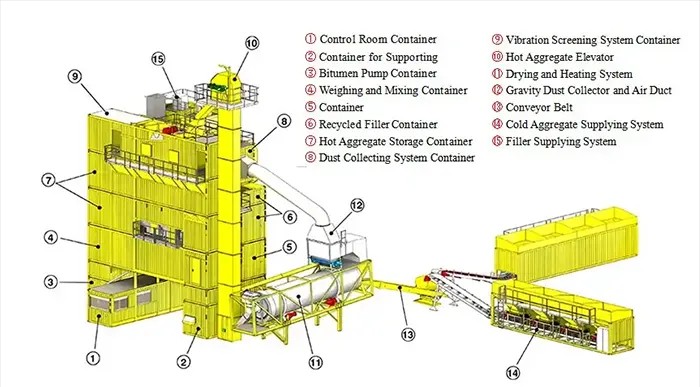

Containerized Asphalt Mixing Plant Components
- 1. Control Room Container
- 2. Container for Supporting
- 3. Bitumen Pump Container
- 4. Weighing and Mixing Container
- 5. Container
- 6. Recycled Filler Container
- 7. Hot Aggregate Storage Container
- 8. Dust Collecting System Container
- 9. Vibration Screening System Container
- 10. Hot Aggregate Elevator
- 11. Drying and Heating System
- 12. Gravity Dust Collector and Air Duct
- 13. Conveyor Belt
- 14. Cold Aggregate Supplying System
- 15. Filler Supplying System
Main Features
1. Foundation-Free
Containerized design, CFB series containerized batching plant do not need foundation, featuring in flexibility, quick installation and disassembly, and accurate weighing.
2. BV Classification Society Certification
Certified by BV Classification Society, ensuring safety and reliability.
3. German Screening Technology
The vibration screening technology with a 110-year history originating from Germany is characterized by efficient screening, low energy consumption, and durability.
4. Dust Emission ＜20mg/Nm³
Dual-stage dust collector, dust emission in exhaust ＜20mg/Nm³, environmentally-friendly.
5. Safety Interlock Device
The built-in staircase and safety interlock device provide excellent protection for the personal safety of maintenance operators.
6. High Re-sale Value
Internationally renowned brand components within the container minimize wear and tear and ensure a long service life, maintaining a high resale value.
Main Components
1. Cold Aggregate Feeding System
① Controlled by a frequency converter, allowing stepless variable speed adjustment to enhance efficiency and reduce energy consumption;
② Equipped with sidewall belt to prevent aggregate spillage;
③ Features a sand bin moisture-proof device and bin wall vibrators to ensure a smooth material discharge process and prevent bin blockage;
④ Each feeding belt's output can be individually and automatically adjusted, ensuring precise cold aggregate batching;
⑤ Automatic aggregate shortage alarms are used for enhanced efficiency;
⑥ Emergency stop pull switch to prevent further damage.
2. Drying system
① Original patented design imported, aggregates zoning heating for high heating efficiency;
② Equipped with an automatic lubrication device to reduce labor costs;
③ Riding rings are made of highly wear-resistant materials for longer service life;
④ Rock wool insulation equipped to prevent heat loss.
3. Aggregates elevating system
① Double pitch roller chain is made of wear-resistant material, sturdy and durable;
② Hoppers come with wear-resistant edge;
③ Inlet and outlet come with special wear-resistant device;
④ Driven by gear motor with brake, more reliable and precise;
⑤ Anti-reverse device ensures smooth running;
⑥ Sealed design with perfect air tightness, no dust leakage;
⑦ Manhole and adjustment device at bottom, easy for installation and maintenance.
4. Vibrating and Screening System
① Vibrating screen technology originating from Germany with 110 years of history;
② Driven by two vibration motors, preventing resonance, with adjustable amplitude and frequency;
③ Equipped with highly wear-resistant screening plates to prevent aggregate mixing;
④ Specially designed feed chute, wear-resistant, and minimal noise;
⑤ Wire-meshes are made of special spring steel with anti-wear property.
5. Hot Aggregate Temporary Storage System
① Equipped with capacitive continuous level sensors to ensure high-precision measurement;
② Includes a 100mm thick rock wool insulation layer to prevent heat loss;
③ Equipped with a bypass hopper.
6. Weighing and Mixing System
① Each system is equipped with a weighing sensor to achieve precise measurement, ensuring accurate proportioning;
② Three-dimensional mixing, with aggregates flipping vertically, results in a more uniform mixing;
③ Swiss-formulated wear-resistant materials and multiple protective measures contribute to a long service life;
④ European technology mixer, an efficient mixing system that reduces power consumption;
⑤ The drive motor employs an automatic lubrication system, free of maintenance.
7. Finished product storage system
① Bottom-type finished products storage bin is convenient for discharging and transportation;
② Insulation device is equipped to ensure the asphalt quality.

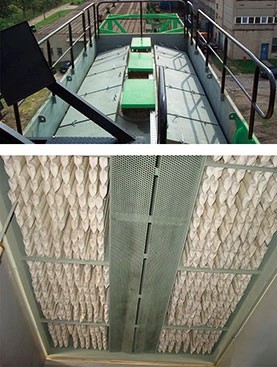

8. Dust collecting system
① Adopted a two-stage dust collecting system: the first stage employs gravity dust collector and the second stage utilizes reverse-air bag-house dust collector, ensuring high dust-collecting efficiency;
② The dust collecting system is located on the upper of the mixing tower, saving ground area;
③ The two-stage dust collecting system achieves a dust emission of ≤20 mg/μm³, which is lower than the international industrial facility dust emission average of 30 mg/μm³;
④ Equipped with a recycled filler storage container to minimize pollution.
9. Control system
① Containerized control room is sound-proof and heat-proof, providing comfortable environment;
② Advanced control system ensures accurate and fast operation;
③ Electrical components, including switch cabinets, circuit breakers, PLC, cables, buttons, etc., are all from well-known brands, ensuring safety and reliability;
④ Easily switch between automatic, semi-automatic, and manual modes at any time, providing simple and user-friendly operation.
